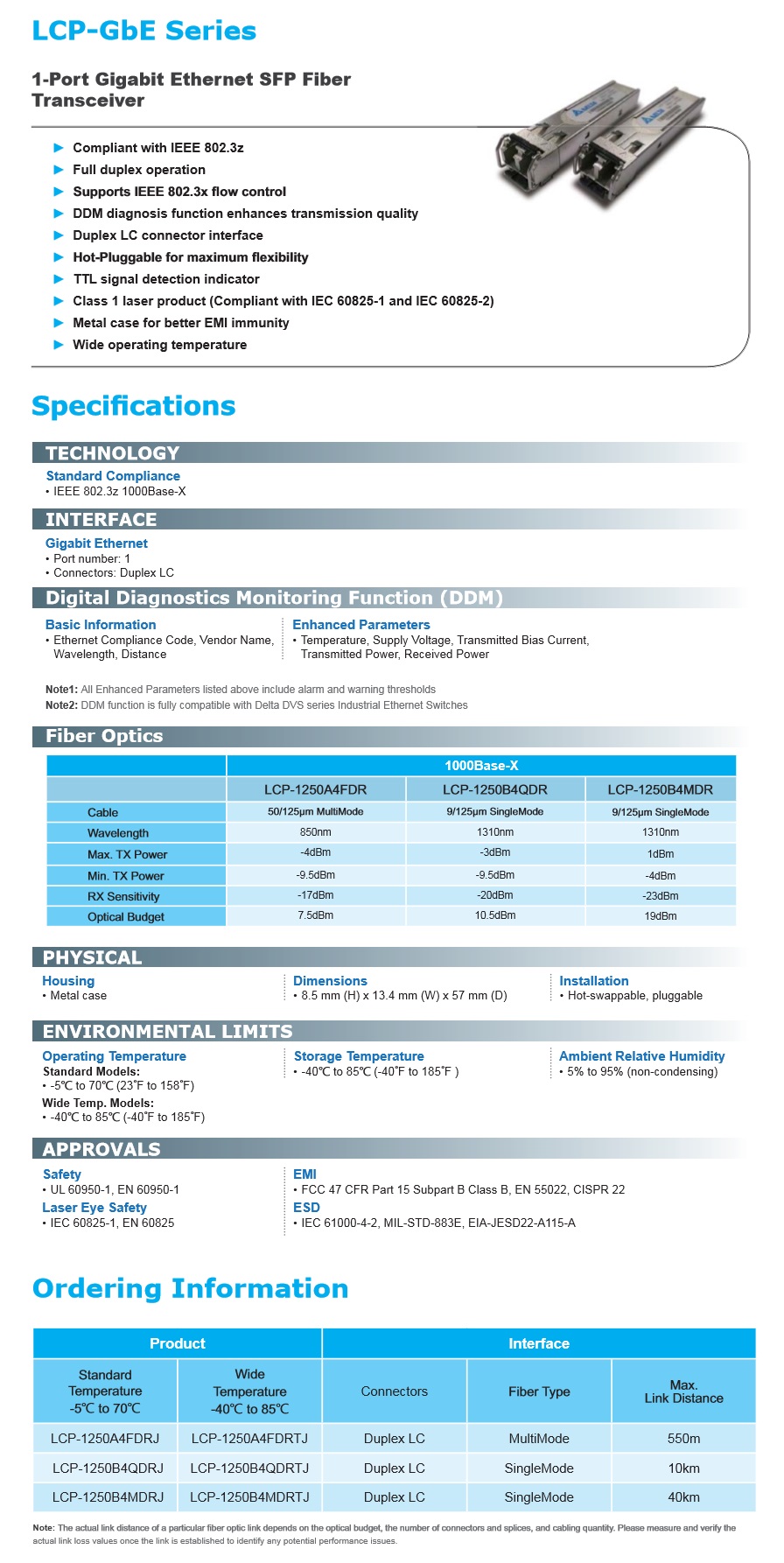

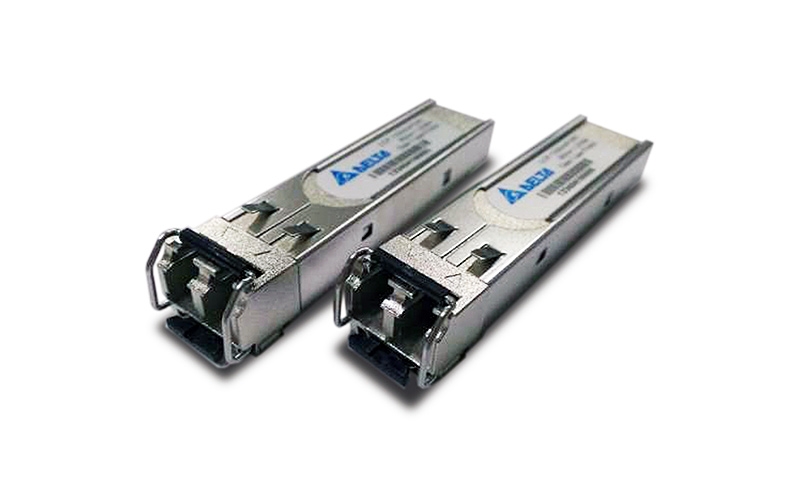

Delta: Industrial Ethernet Solution (LCP-GbE Series) Delta has just launched the Delta Industrial Ethernet Total Solution, which provides Ethernet products with enhanced hardware design, a user-friendly software interface, packet protection and compatibility with multiple industrial communication standards. With the rise of industrial automation technology and intelligent municipal engineering systems, the Ethernet, with its advantages of high speed, high stability and high compatibility, has become the most popular and widely used communication protocol. Based on Delta’s accumulated customer service experience and industrial know-how, the Delta Industrial Ethernet Total Solution helps customers construct an industrial Ethernet system that will satisfy their requirements in a wide range of applications. All of Delta’s Ethernet products are certified to UL, CE and FCC standards. SFP Fiber Transceivers: LCP-GbE Series High speed links SFP transceiver Modules compliant with SFF 8472 SFP Multi-Source Agreement (MSA) with digital diagnostic monitoring functions (DDM). Experienced design that support customers for the next generation technology development. Compliant with IEEE 802.3z Full duplex operation Supports IEEE 802.3x flow control DDM diagnosis function enhances transmission quality Duplex LC connector interface Hot-Pluggable for maximum flexibility TTL signal detect indicator Class 1 laser product (compliant with IEC 60825-1 and IEC 60825-2) Metal case for better EMI immunity Wide operating temperature
Gigabit Ethernet Port number: 1 Connectors: Duplex LC
Digital Diagnostics Monitoring Function(DDM) Basic Information: Ethernet Compliance Code, Vendor Name, Wavelength, Distance Enhanced Parameters: Temperature, Supply Voltage, Transmitted Bias Current, Transmitted Power, Received Power
Note 1:All Enhanced Parameters listed above including alarm and warning thresholds Note 2: DDM is fully compatible with Delta DVS series Industrial Ethernet Switches Storage Temperature: -40℃ to 85℃(-40℉ to 185℉) Ambient Relative Humidity: 5% to 95%(non-condensing) Safety: UL 60950-1, EN 60950-1 Laser Eye Safety: IEC 60825-1, EN 60825 EMI: FCC 47 CFR Part 15 Subpart B Class B, EN 55022, CISPR 22 ESD: IEC 61000-4-2, MIL-STD-883E, EIA-JESD22-A115-A
Model No.: LCP-1250A4FDRJ, LCP-1250A4FDRTJ, LCP-1250B4MDRJ, LCP-1250B4MDRTJ, LCP-1250B4QDRJ, LCP-1250B4QDRTJ
|
|
|
 |
|
 |
|
