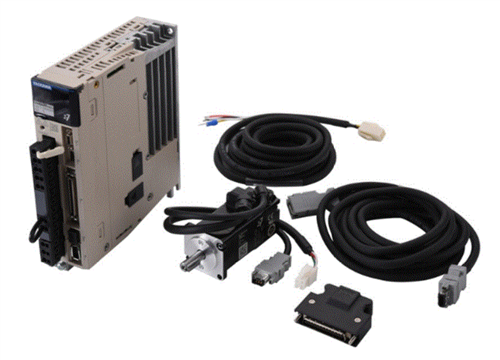

Sigma-7 is a complete family of servo motors and SERVOPACK amplifiers from 3w to 55kW, easily paired with a Yaskawa machine controller to create a motion automation system with the industry’s highest quality and reliability.

The SGM7A (50W - 7kW, Low Inertia) is available in a wide range of sizes and covers the capacity spectrum from low to medium power, and the general-purpose workhorse of the Sigma-7 line. Each of these brushless rotary servo motors is capable of producing a high rate of power at extremely low levels of inertia. SGM7A servos are also designed to deliver high torque performance when an application requires it. 24-bit encoder resolution maintains industry-leading positional accuracy across the power spectrum.

The SGM7J (50W - 1.5kW, Medium Inertia) was designed to maximize responsiveness in applications where precise load matching is of critical importance. This family of medium inertia rotary servo motors was created with low capacity applications in mind, yet can respond with rated speeds to 3000 rpm and torque ratings up to 2.39 N-m (21 in-lb) when an application requires it. 24-bit encoder resolution maintains industry-leading positional accuracy in any operating condition.

The SGM7G (300W - 15kW, Medium Inertia) The increased power demands of large automation components utilize the robust performance of SGM7G. These servo motors are built with a compact footprint, yet provide a higher torque while maintaining an inertia rating well within the medium range. Rated torques in the SGM7G family range up to 95.2 N-m (840 in-lb). SGM7G delivers a rated speed of 1500 rpm, delivering a rapid and consistent throughput over a wide power range. 24-bit encoder resolution maintains industry-leading positional accuracy across the power spectrum.

YASKAWA Sigma-7 Series SGM7J- Servo Motors and Supporting List

SGM7J Motors Part Numbers

Supporting Accessory: Motor Power Cable
(3m)

Supporting Accessory: Motor Encoder Cable (3m)

Basic Information

Supporting Drives or SERVOPACKs

Rated Power (W)

Rated Torque
(N・m)

Rated Current (Arms)

Rated Motor Speed (r/min)

SGM7J-01AFC6E

JZSP-C7M33-03-E

JZSP-CMP00-03-E

100 0.318 0.85 3000 SGD7S-R90A00A

SGM7J-01AFC6S

JZSP-C7M03-03-E

JZSP-CMP00-03-E 100 0.318 0.85 3000 SGD7S-R90A00A

SGM7J-02AFC6E

JZSP-C7M33-03-E

JZSP-CMP00-03-E 200 0.637 1.6 3000 SGD7S-1R6A00A

SGM7J-02AFC6S

JZSP-C7M03-03-E

JZSP-CMP00-03-E 200 0.637 1.6 3000 SGD7S-1R6A00A

SGM7J-04A7C6E

JZSP-C7M33-03-E

JZSP-CSP12-03-E 400 1.27 2.5 3000 SGD7S-2R8A00A

SGM7J-04A7C6S

JZSP-C7M03-03-E

JZSP-CSP12-03-E 400 1.27 2.5 3000 SGD7S-2R8A00A

SGM7J-04AFC6E

JZSP-C7M33-03-E

JZSP-CMP00-03-E 400 1.27 2.5 3000 SGD7S-2R8A00A

SGM7J-04AFC6S

JZSP-C7M03-03-E

JZSP-CMP00-03-E 400 1.27 2.5 3000 SGD7S-2R8A00A

SGM7J-08AFC6E

JZSP-C7M33-03-E

JZSP-CMP00-03-E 750 8.36 4.4 3000 SGD7S-5R5A00A

SGM7J-08AFC6S

JZSP-C7M03-03-E

JZSP-CMP00-03-E 750 8.36 4.4 3000 SGD7S-5R5A00A
