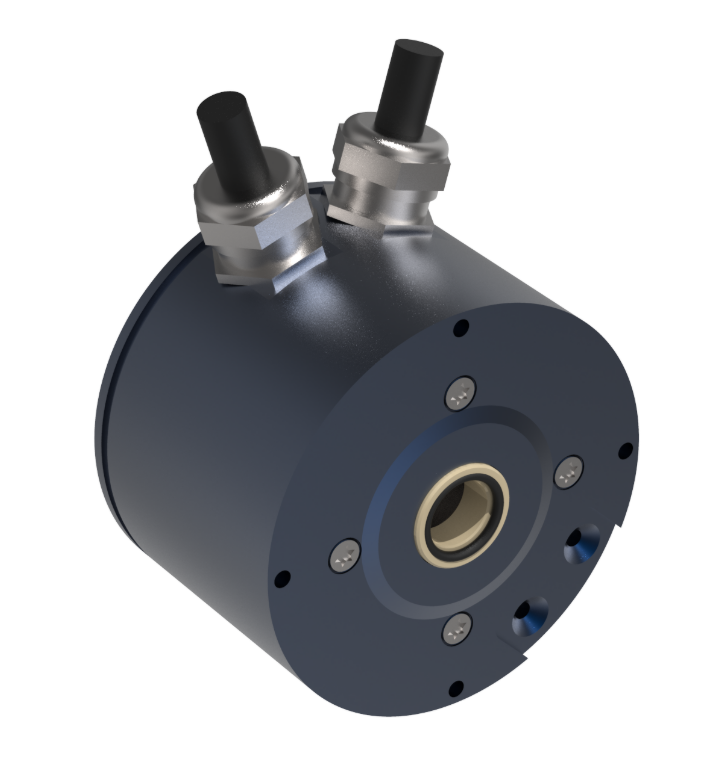

Leine & Linde: X-heavy duty Hollow shaft Dual Encoder XHD 865 (ID: 1303239-02)

X-heavy duty hollow shaft encoder, Incremental. Performance hollow shaft encoder for heavy duty industries. It has high vibration and shock resistance with electrically insulated shaft.

The product series has a long history of successful operation in applications within heavy industries, such as the steel, paper and wind power industries. These industries place stringent demands on robustness and reliability, and the encoder is designed thereafter. Mechanically it features a dual set of heavy duty bearings and a well-encapsulated enclosure.

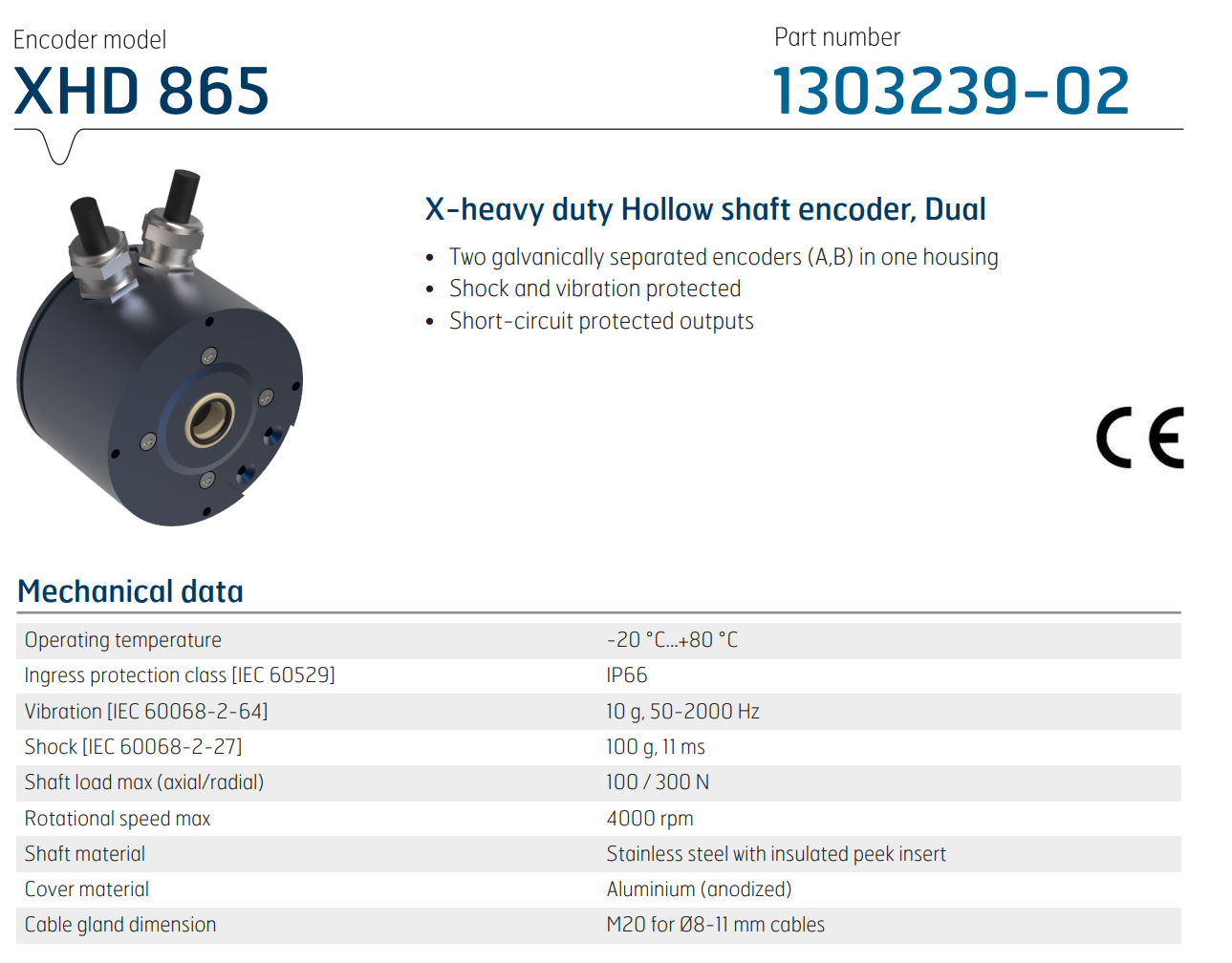

XHD 865

X-heavy duty Hollow shaft encoder, Dual

• Two galvanically separated encoders (A,B) in one housing
• Shock and vibration protected
• Short-circuit protected outputs

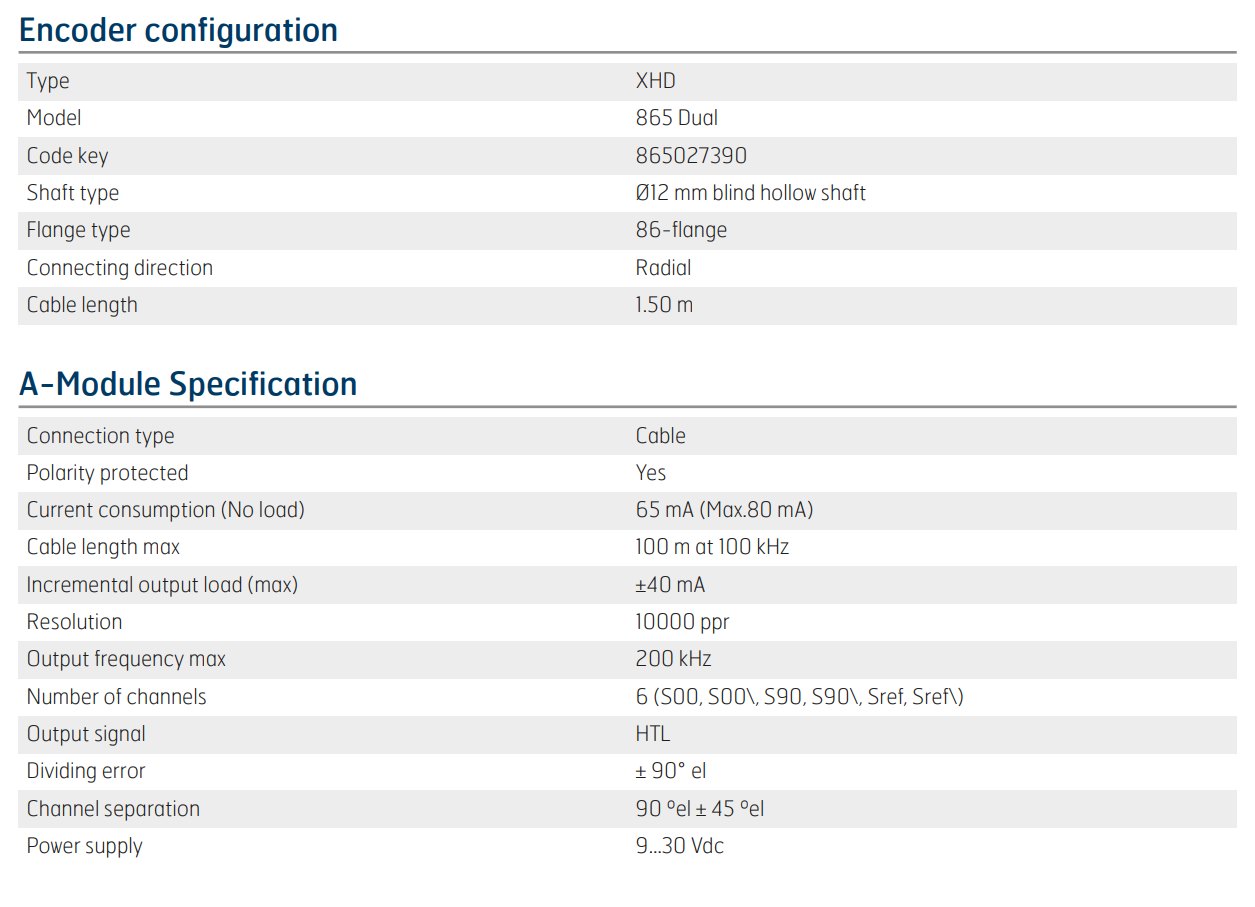

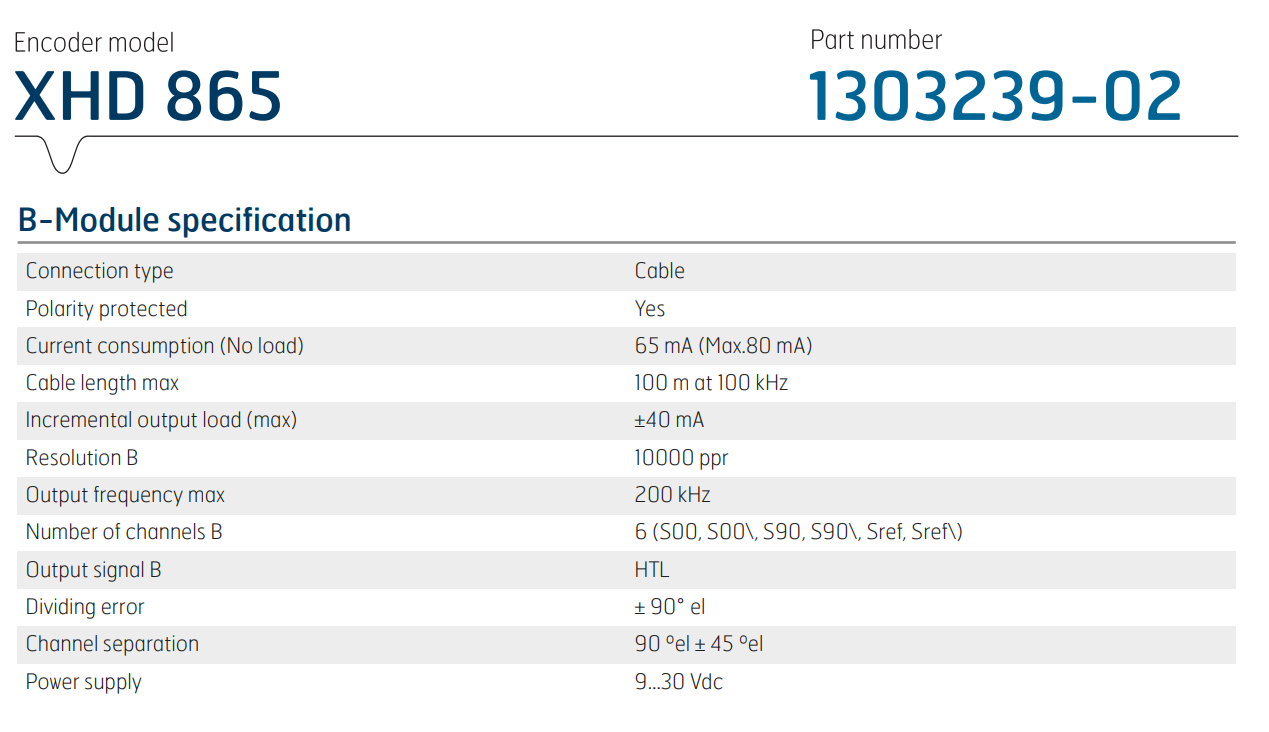

Product data
