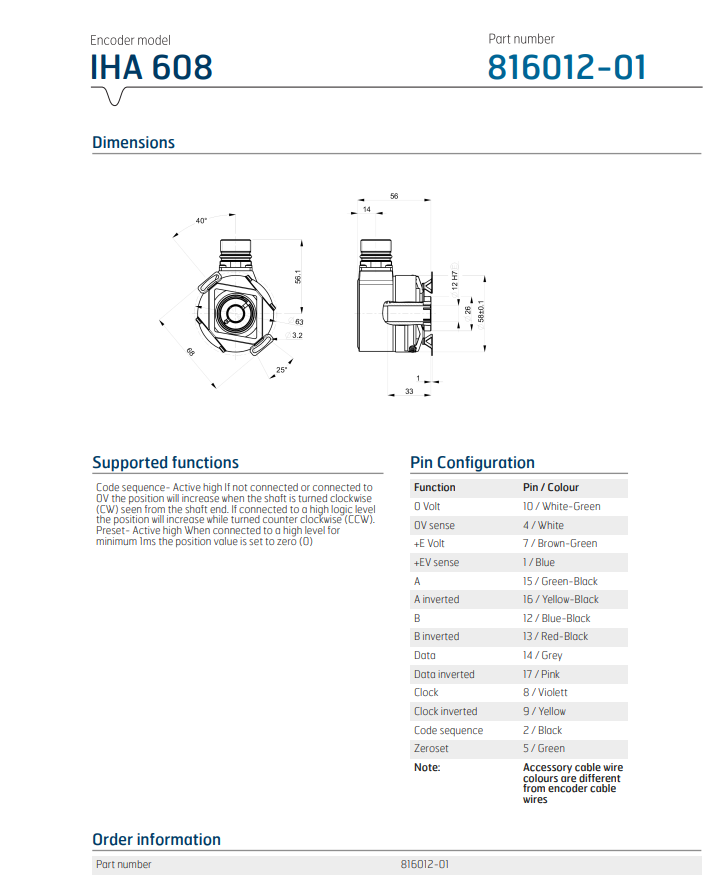

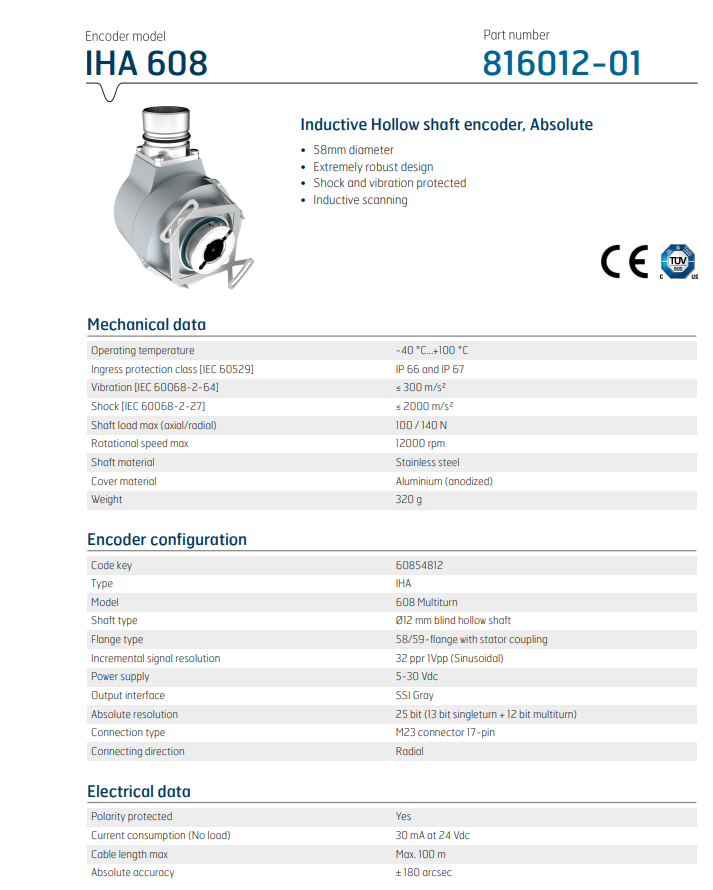

Description Specifications and Drawings


Leine & Linde: Inductive Hollow Shaft Absolute Encoder 816012-01 (IHA 608)

IHA 608

Part number: 816012-01

Inductive Hollow shaft encoder, Absolute

  • 58mm diameter
  • Extremely robust design
  • Shock and vibration protected
  • Inductive scanning


Product data

Code key60854812
TypeIHA
Model608 Multiturn
Shaft typeØ12 mm blind hollow shaft
Flange type58/59-flange with stator coupling
Incremental signal resolution32 ppr 1Vpp (Sinusoidal)
Power supply5-30 Vdc
Output interfaceSSI Gray
Absolute resolution25 bit (13 bit singleturn + 12 bit multiturn)
Connection typeM23 connector 17-pin
Connecting directionRadial
