AMC: DigiFlex® Performance™ CANopen Drive Mounting Card MC1XDZC03-QD
The MC1XDZC03-QD mounting card is designed to host a DZC or DZXC series DigiFlex® PerformanceTM digital servo drive. The drive plugs into the bottom side of the mounting card, providing a compact assembly with connectors and switches readily accessible. The MC1XDZC03-QD is ideal for prototyping and integrating a DZC or DZXC series digital servo drive in your machine.

The MC1XDZC03-QD utilizes vertical-entry quick disconnect screw terminals for the Motor and Power connectors (mating connectors included). For side entry right angle Motor and Power connections use the MC1XDZC03 mounting card.

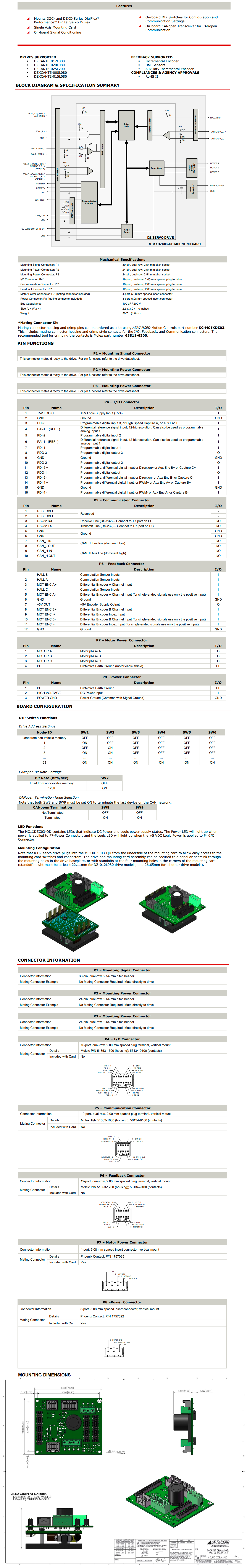

Specifications:

The MC1XDZC03-QD mounting card is designed to hold a DZCANTE or DZXCANTE DigiFlex® Performance™ family pcb mount servo drive to simplify connection to the controller, motor, and feedback. The motor and power connectors utilize quick-disconnect style connections.

Downloads:
Datasheet_MC1XDZC03-QD.pdf

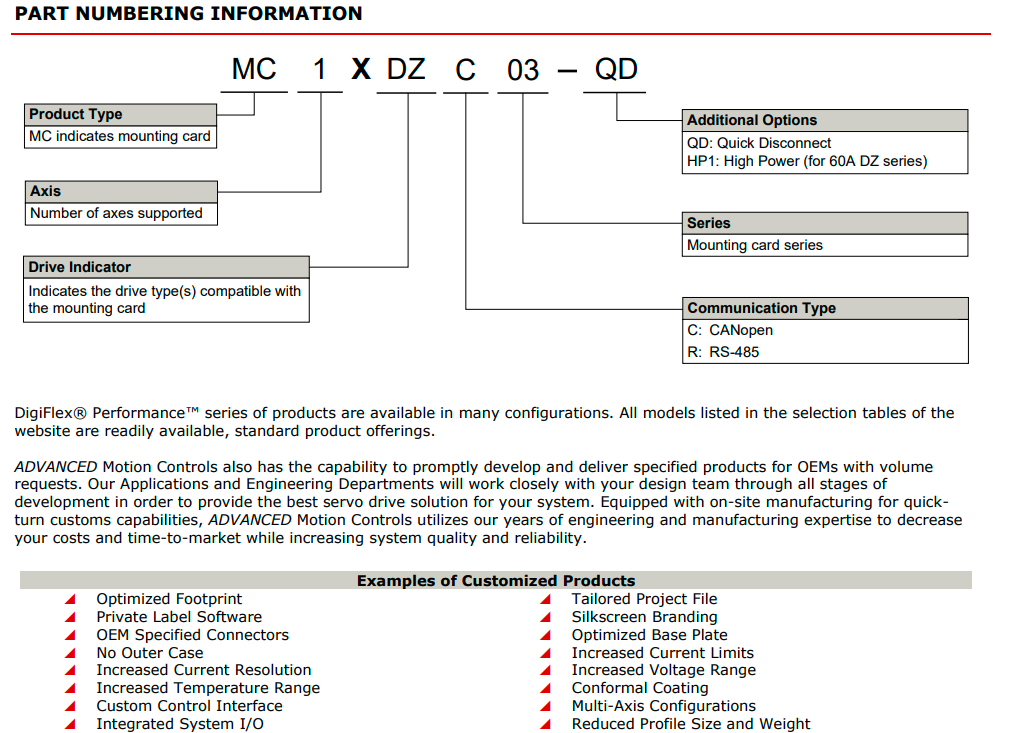

Product-Identification.pdf
