AMC: DIGIFLEX® PERFORMANCE™ Modbus RTU, RS-485/232 Drive Mounting Card MC1XDZR03-QD

The MC1XDZR03-QD mounting card is designed to host a DZR or DZRC series DigiFlex® PerformanceTM digital servo drive. The drive plugs into the bottom side of the mounting card, providing a compact assembly with connectors and switches readily accessible. The MC1XDZR03-QD is ideal for prototyping and integrating a DZR or DZXR series digital servo drive in your machine

The MC1XDZR03-QD utilizes vertical-entry quick disconnect screw terminals for the Motor and Power connectors (mating connectors included). For side entry right angle Motor and Power connections use the MC1XDZR03 mounting card.

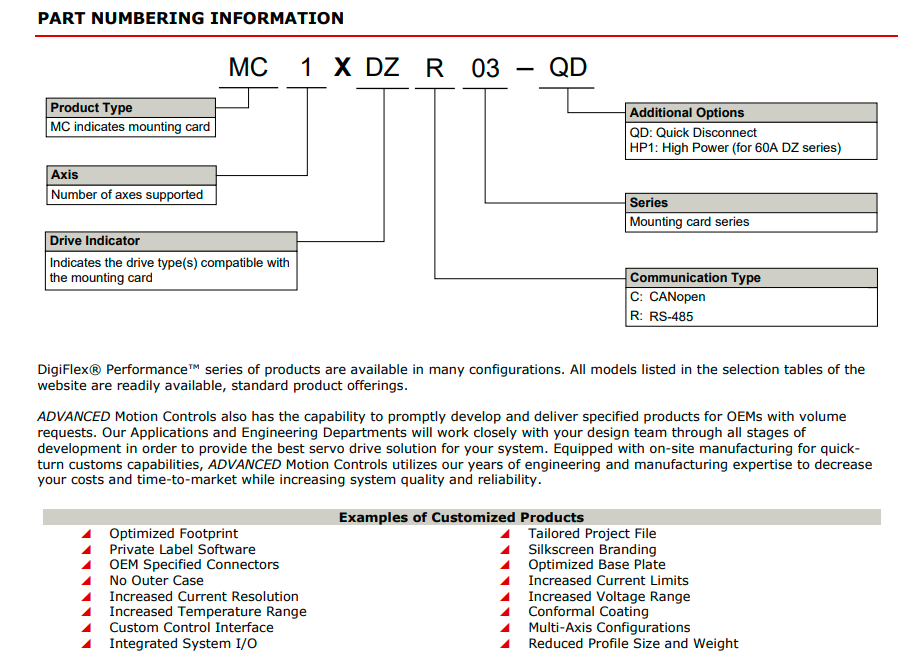

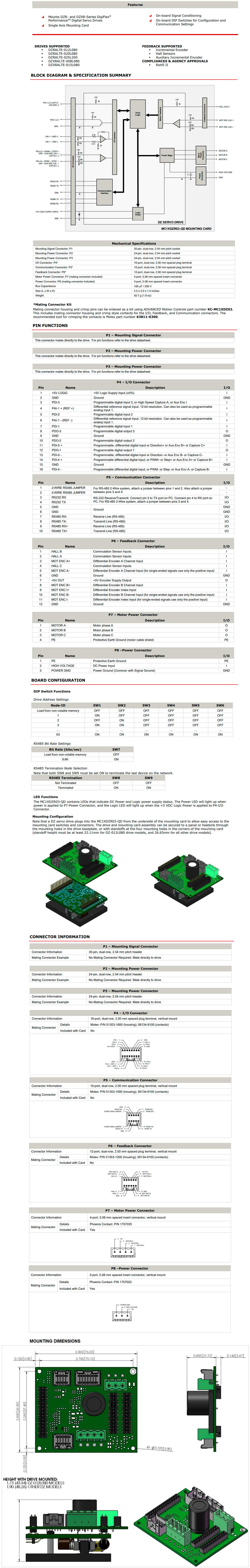

Specifications:

The MC1XDZR03-QD mounting card is designed to hold a DZRALTE or DZXRALTE DigiFlex® Performance™ family pcb mount servo drive to simplify connection to the controller, motor, and feedback. The motor and power connectors utilize quick-disconnect style connections.
