LIMING: SERVOBOX Planetary Reducer SB120-10-32-P2+7MP120A-114.3-A2 W/O MOTOR
LI MING Machinery CO., LTD. is a specialist in the design, R&D and manufacturing of a wide range of high-tech gear motor and helical gear reducers, worm gear reducers, and planetary gear reducers. Among the wide range of speed reducers, the planetary gear reducers are widely applied in servo, stepping and DC transmission systems. With its outstanding feature of high precision transmission, the planetary gear reducer is excellent for reducing speed, increasing torque and reducing torsional inertia ratio. High torque, low backlash and low noise are three key features of LIMING's gear reducers.

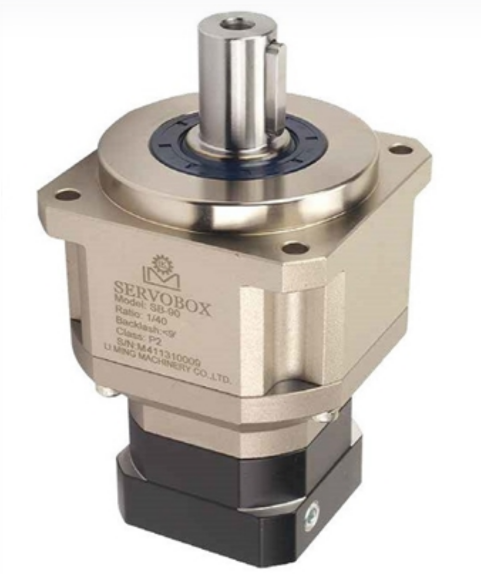

SERVOBOX series high-precision planetary gear reducer employs helical gears. All gears are high-precision machined by a CNC gear hobbing machine, providing high-accuracy gear engagement, smooth running and minimum noise. LIMING gearbox is a one-piece fabricated. When compared with the competitive gear reducer, the LIMING gear reducer features smaller construction (saves over 1/4 of size and weight), higher output torque and higher transmission efficiency.
This part number SB120-10-32-P2+7MP120A-114.3-A2 specifies a LIMING SERVOBOX High-Precision Inline Planetary Gearbox with a 10:1 reduction ratio and a custom 7MP120A motor adapter plate. The unit comes without the motor included.
.

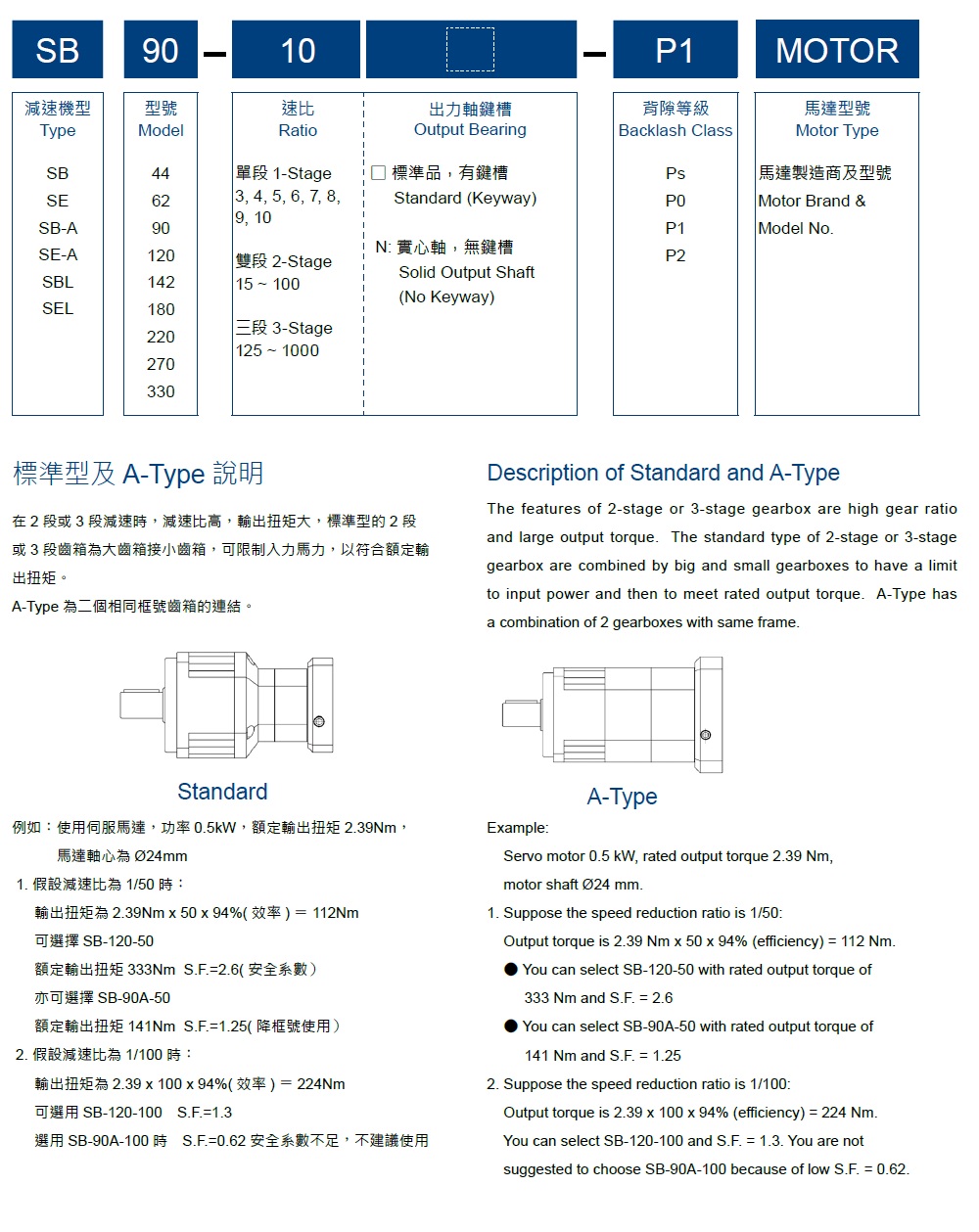

Part Number Breakdown
Gearbox Specifications (SB120-10-32-P2)
- SB: In-line high-precision planetary gearbox series featuring helical gear technology.
- 120: Frame size designation (120 mm square outer body dimension).
- 10: 10:1 speed reduction ratio.
- 32: φ32 input is suitable for the motor.
- P2: Standard backlash rating tier.
Motor Adapter Bracket & Coupling Specifications (+7MP120A-114.3-A2)
- 7MP120A: Custom motor mounting adapter flange tailored to match specific servo motor frames.
- 114.3: Pilot/centering diameter (114.3 mm or 4.5 inches) on the input mounting plate.
- A2: Collet locking mechanism size and input bore designation to clamp onto the specific motor's drive shaft.
Ordering Info:
SB120-10-32-P2+7MP120A-114.3-A2 W/O MOTOR
