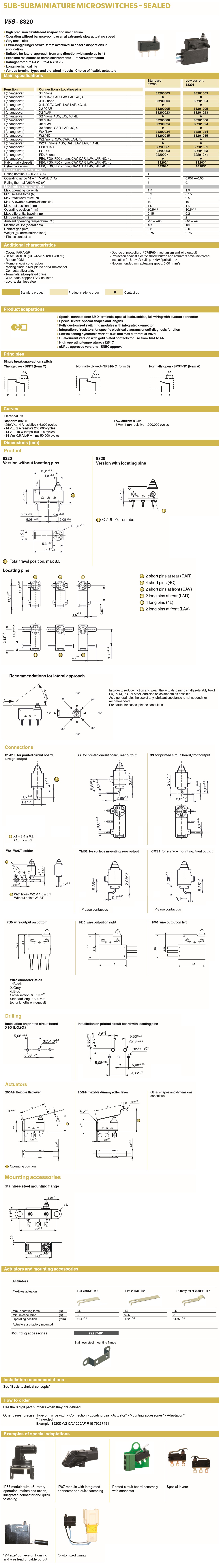

Crouzet: Sub-Subminiature Microswitches (V5S – 8320 Series)
With over 60 years’ experience in snap-action technology, Crouzet Switches offers a complete range of Microswitches for the highly demanding markets. The extensive choice consists of standard or customized Sub-subminiature, Subminiature, Miniature and Special microswitches, all conform to the most rigorous quality standards.
Our microswitches are characterized by a large range of switching ratings from 1 mA to 25 A, magnetic blowout versions for High DC ratings, sealed models, positive break versions, a wide range of operating temperatures, models for explosive atmospheres, long service life and wide variety of actuators, contact materials and fixing means.
Sub-Subminiature Microswitches – Sealed
High precision flexible leaf snap-action mechanism
Operation without balance-point, even at extremely slow actuating speed
Very small size
Extra-long plunger stroke: 2 mm overtravel to absorb dispersions in application
Suitable for lateral approach from any direction with angle up to 45°
Excellent resistance to harsh environments - IP67/IP69 protection
Long mechanical life
Various terminal types and pre-wired models - Choice of flexible actuators
Cover: PARA GF
Base: PA66 GF (UL 94-V0 / GWFI 960 °C
Button: POM
Membrane: silicone rubber
Moving blade: silver-plated beryllium copper
Contacts: silver alloy
Terminals: silver-plated brass
Wire leads: copper, PVC insulated
Levers: stainless steel
Degree of protection: IP67/IP69 (mechanism and wire output)
Protection against electric shock: button and actuators have reinforced insulation for Ui 250V / Uimp 2,5kV / pollution 2
Recommended min actuating speed: 0.001 mm/s
Specifications
Approx body size (mm): 15x8x5
Rating (max): 4A / 250Vac
Degree of protection: IP67/IP69
Operating temperature: -40°C / +90°C
Operating force (max): 1.5 N
Differential travel (max): 0.06 –> 0.20 mm
Overtravel (min): 2 mm
Mechanical life (cycles): 1 M
