Yaskawa Rotary Servo Motors: SGMGV Sigma-5 Series
Yaskawa Rotary Servo Motors: SGMGV Sigma-5 Series



Price: (Members Only)


Availability: est. 1-2 weeks ARO
Order #: SGMGV-20ADA6C
Qty:

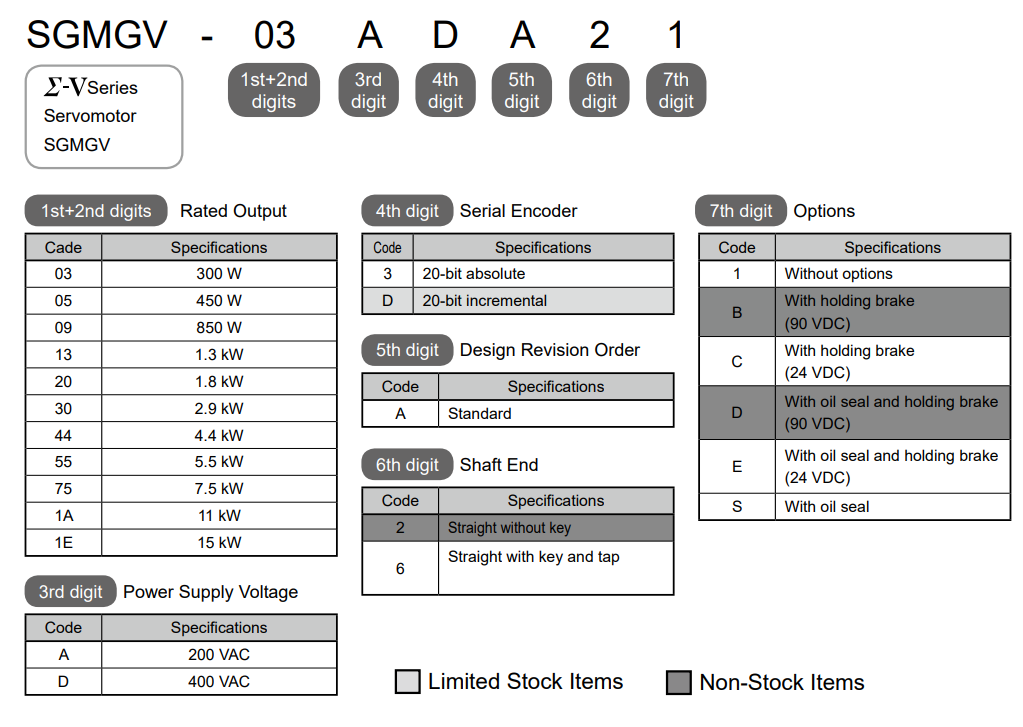

Description Ordering Information Specifications and Drawings

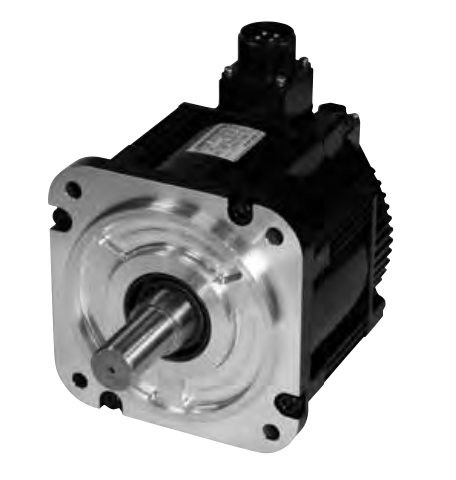

Yaskawa: Rotary Servo Motors: SGMGV Sigma-5 Series SGMGV-20ADA6C

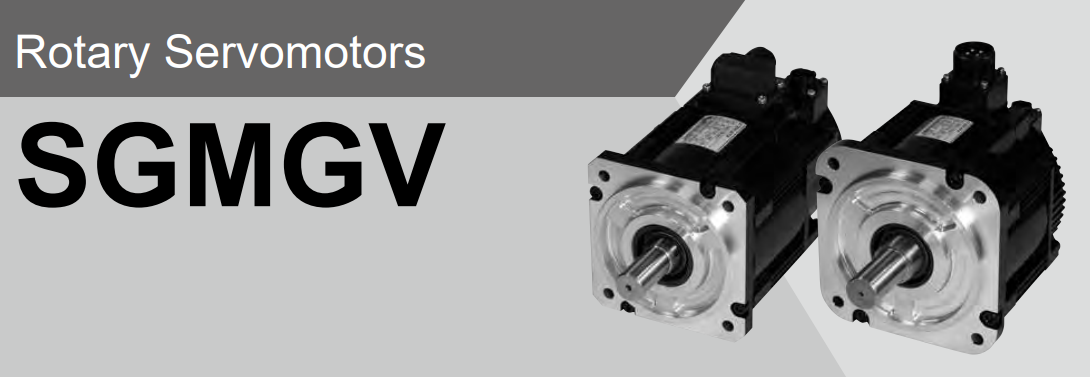

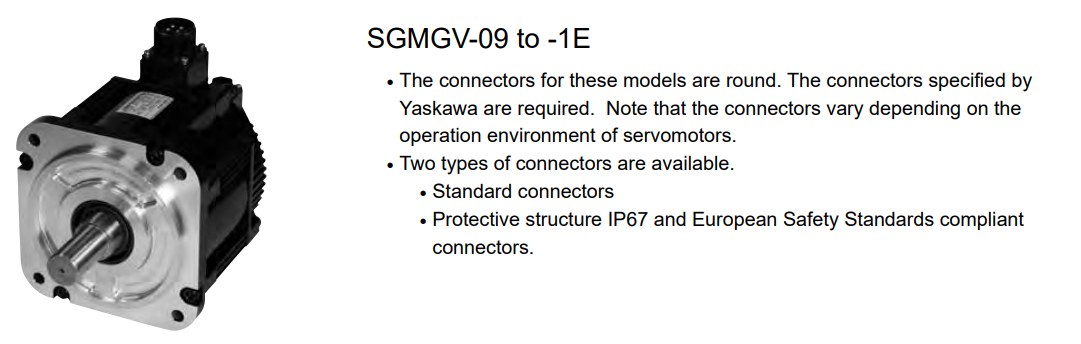

SGMGV Sigma-5
Rated Output: 1.8kW


SGMGV-20ADA6C - S5 MTR 1.8KW 200V INC KY TP BK

The SGMGV medium capacity brushless servomotor can be used in a variety of applications. Some characteristics of this motor line are as follows:

  • Medium inertia
  • Mounted high resolution serial encoder: 20-bit
  • Maximum Speed: 3000 rpm
  • Wide Selection: 30W to 15kW

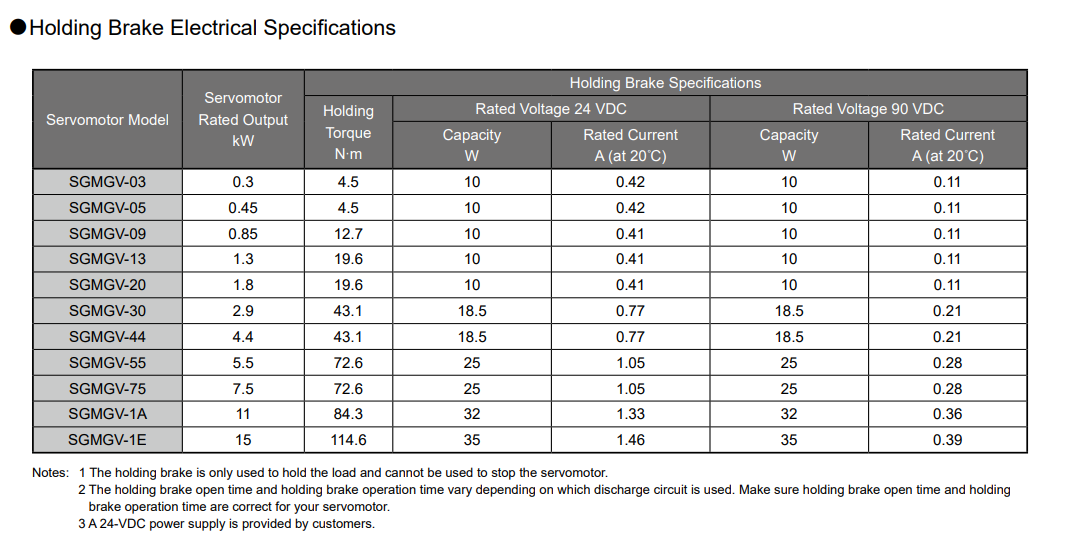

  • Holding Brake and Shaft Seal options available
  • Protective Structure: IP67
  • Time Rating: Continuous
  • Vibration Class: V15
  • Insulation Resistance: 500 VDC, 10 MW min.
  • Ambient Temperature: 0 to 40˚C
  • Excitation: Permanent magnet
  • Mounting: Flange-mounted
  • Thermal Class: F
  • Withstand Voltage: 1500 VAC for one minute (200-V Class)
  • 1800 VAC for one minute (400-V Class)
  • Enclosure for IP67 (except for shaft opening): Totally enclosed, self-cooled
  • Ambient Humidity: 20% to 80% (no condensation)
  • Drive Method: Direct drive
  • Rotation Direction: Counterclockwise (CCW) with forward run reference when viewed from the load side

Sigma-5 Series Product Catalog

SGMGV Catalog

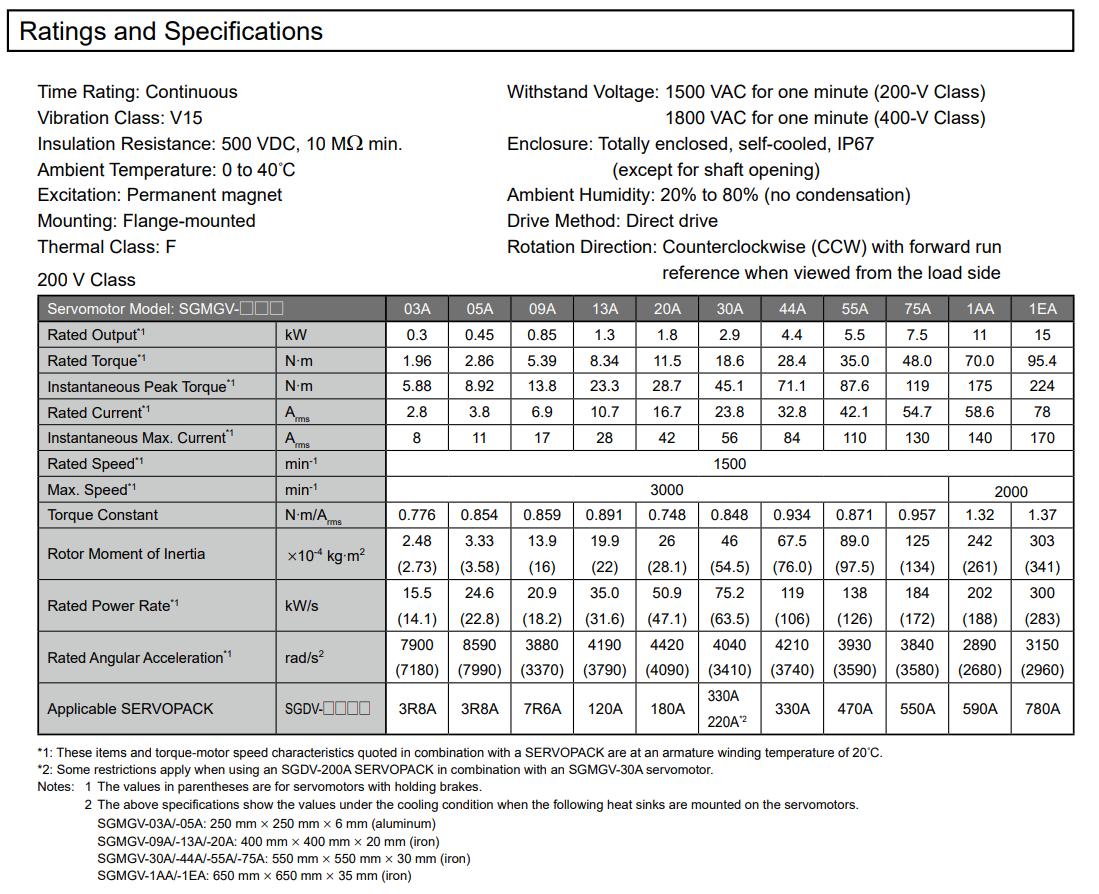

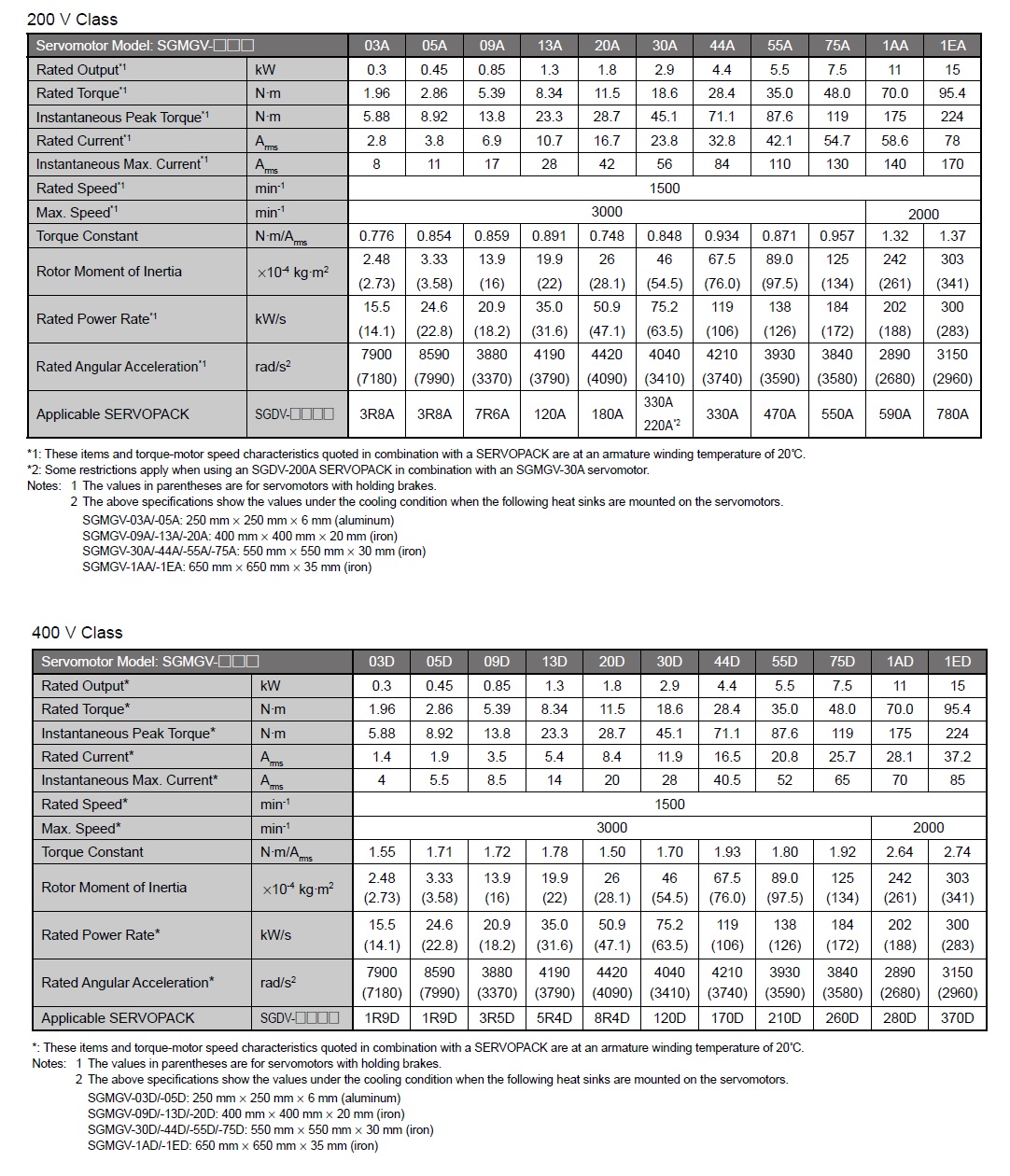

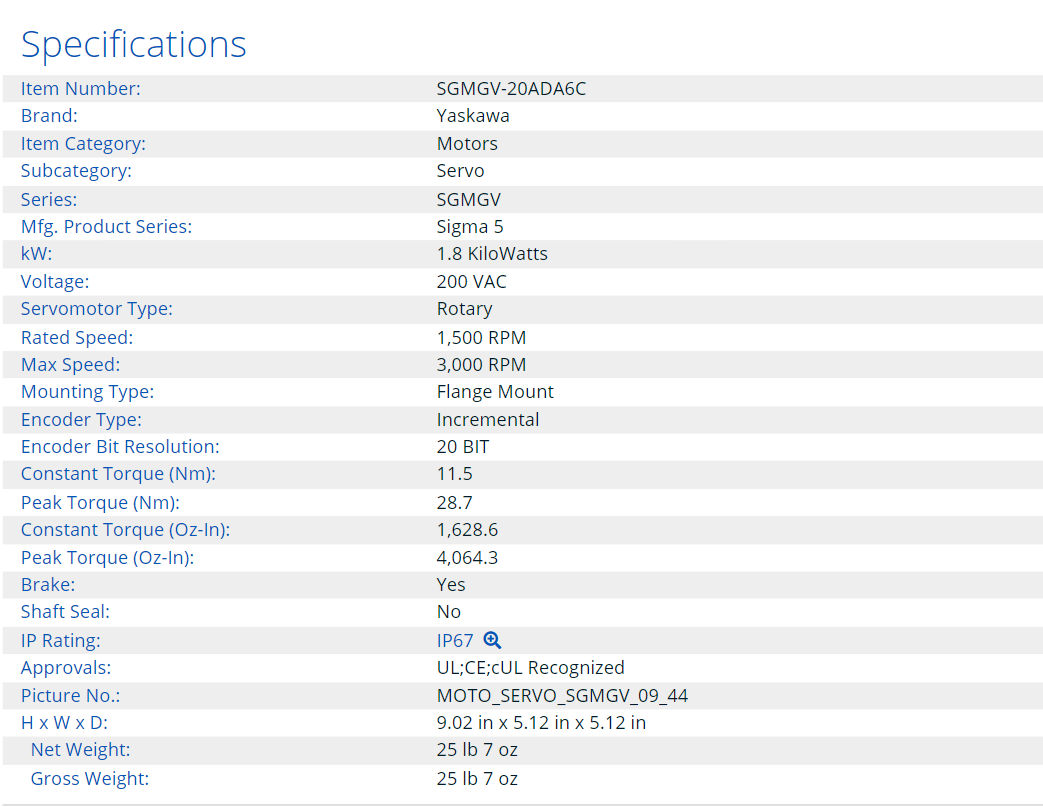

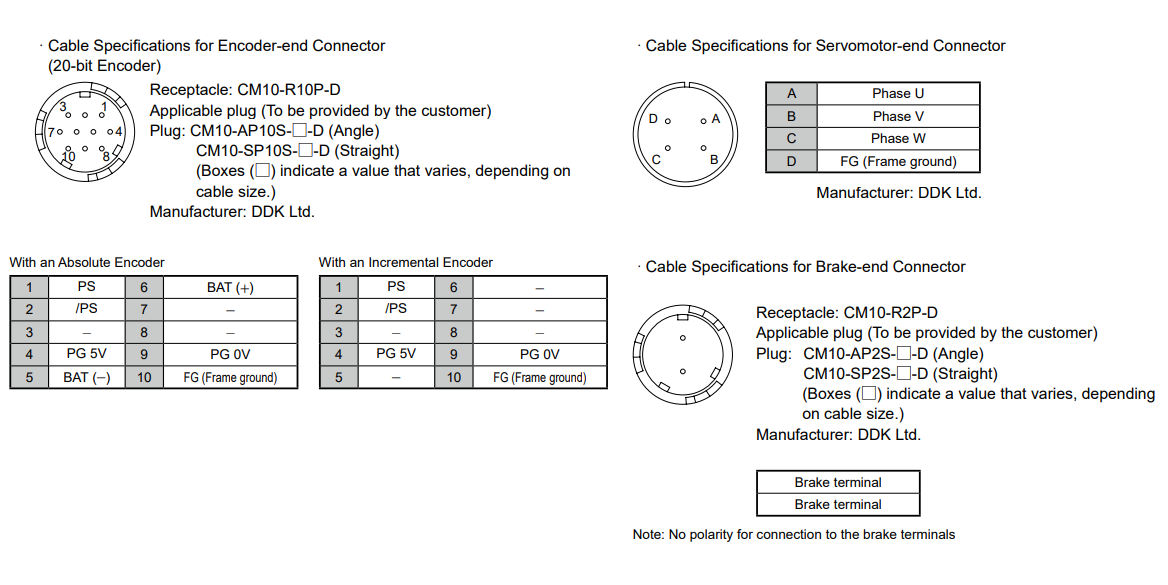

Specs

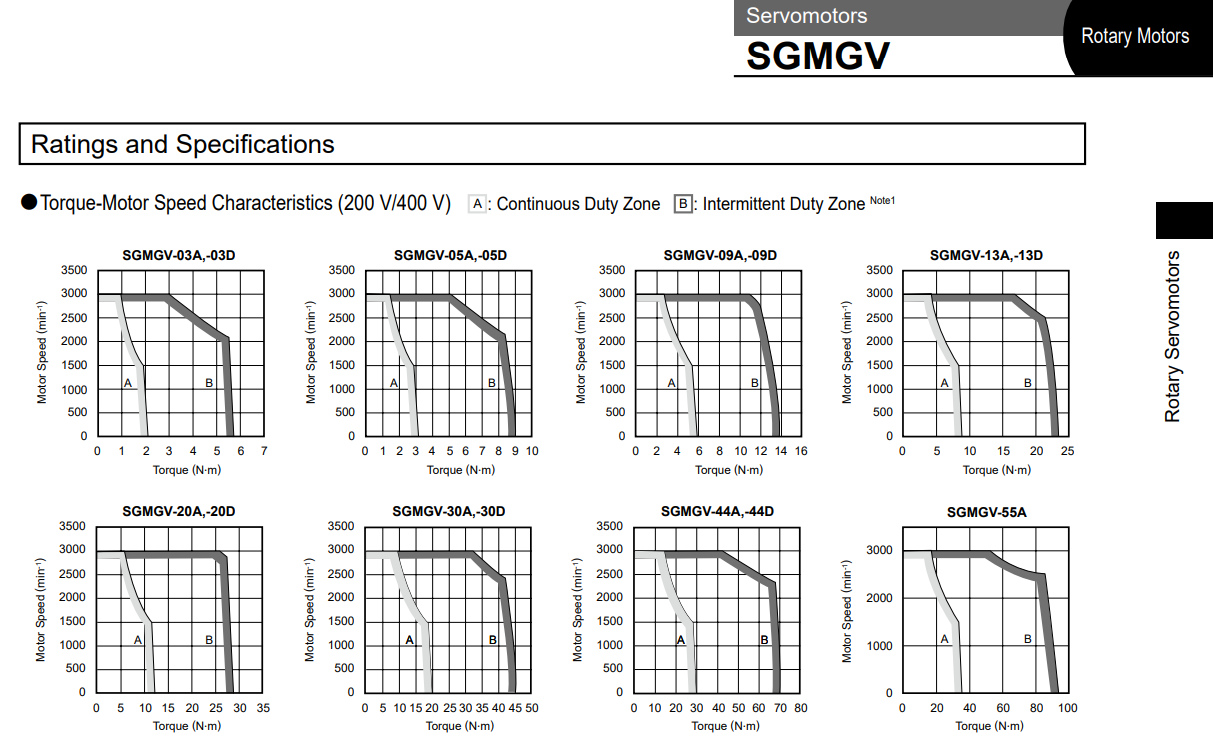

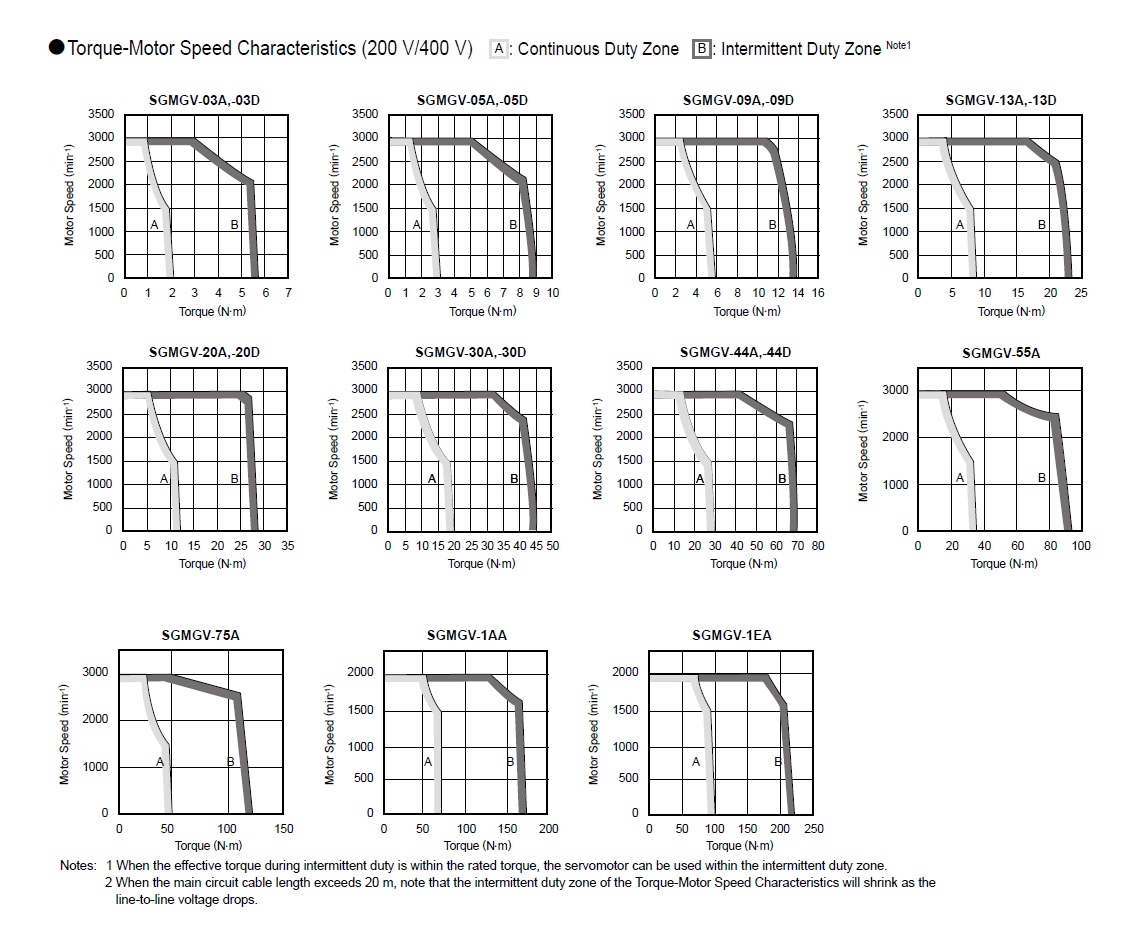

Torque Curves

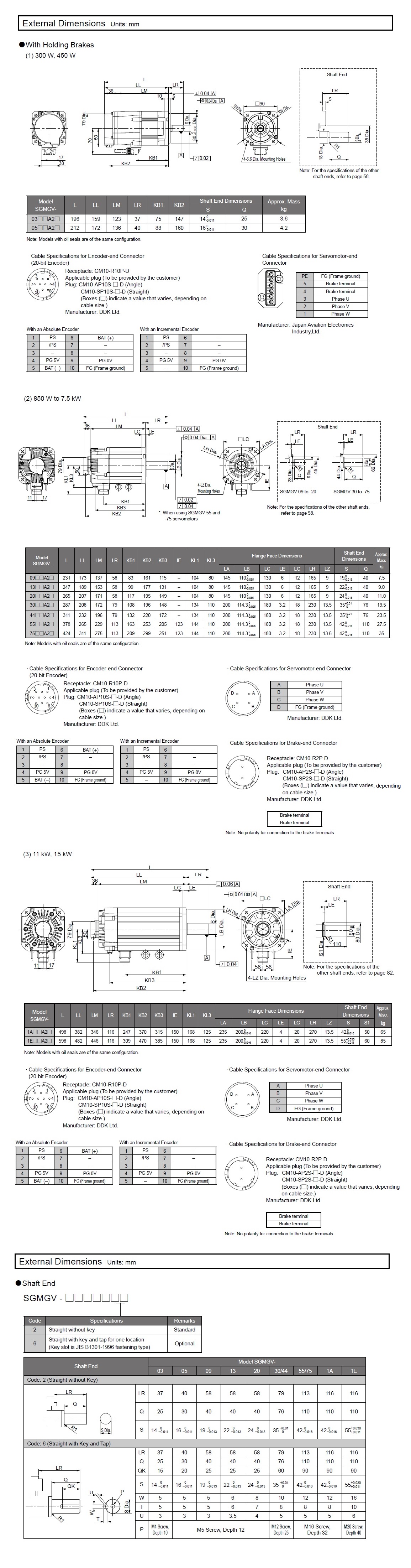

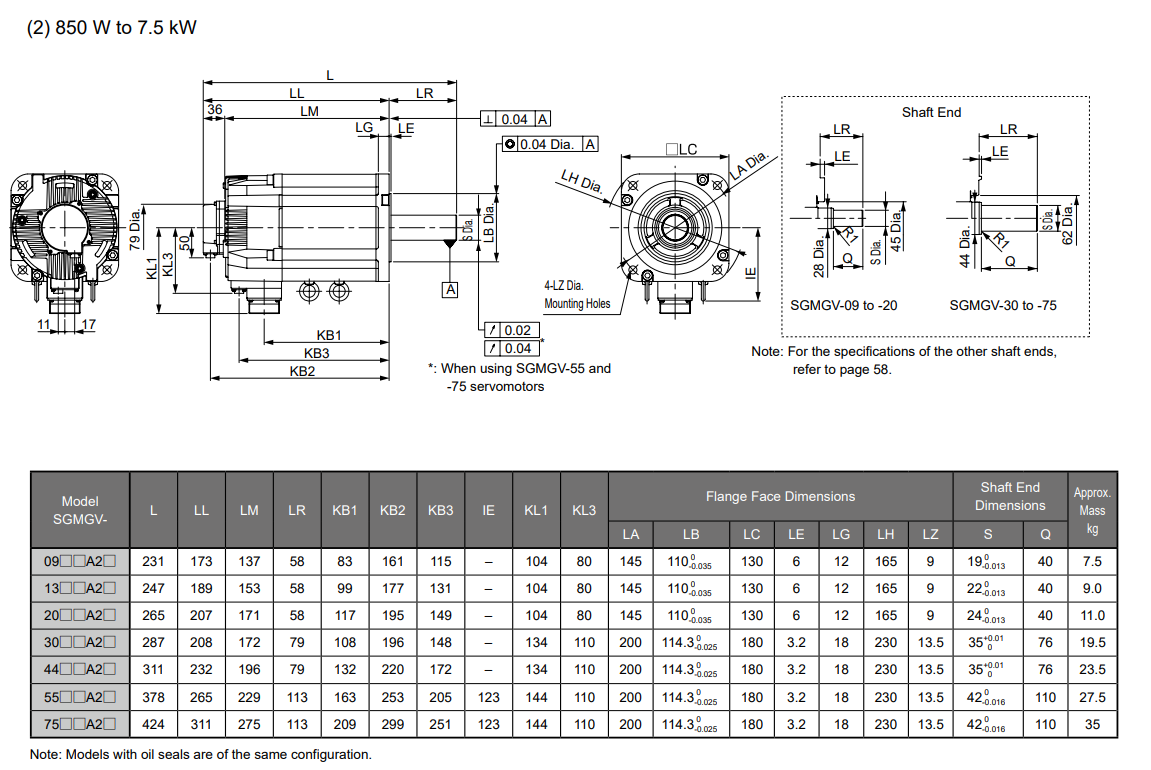

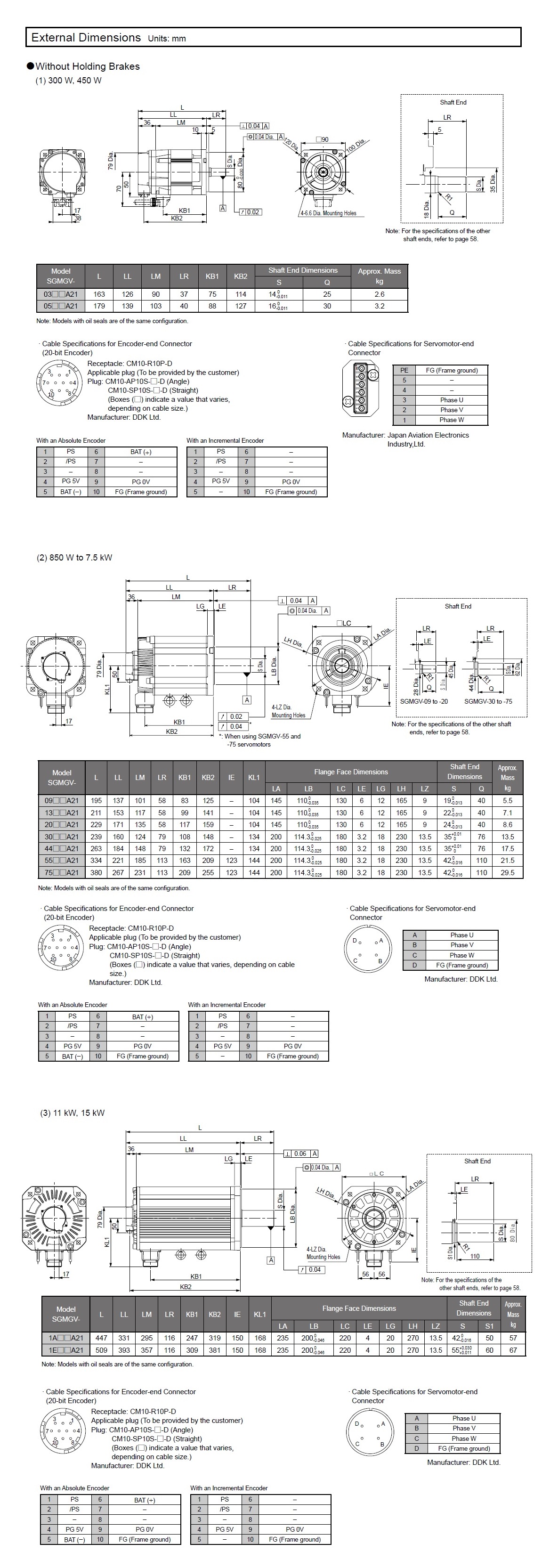

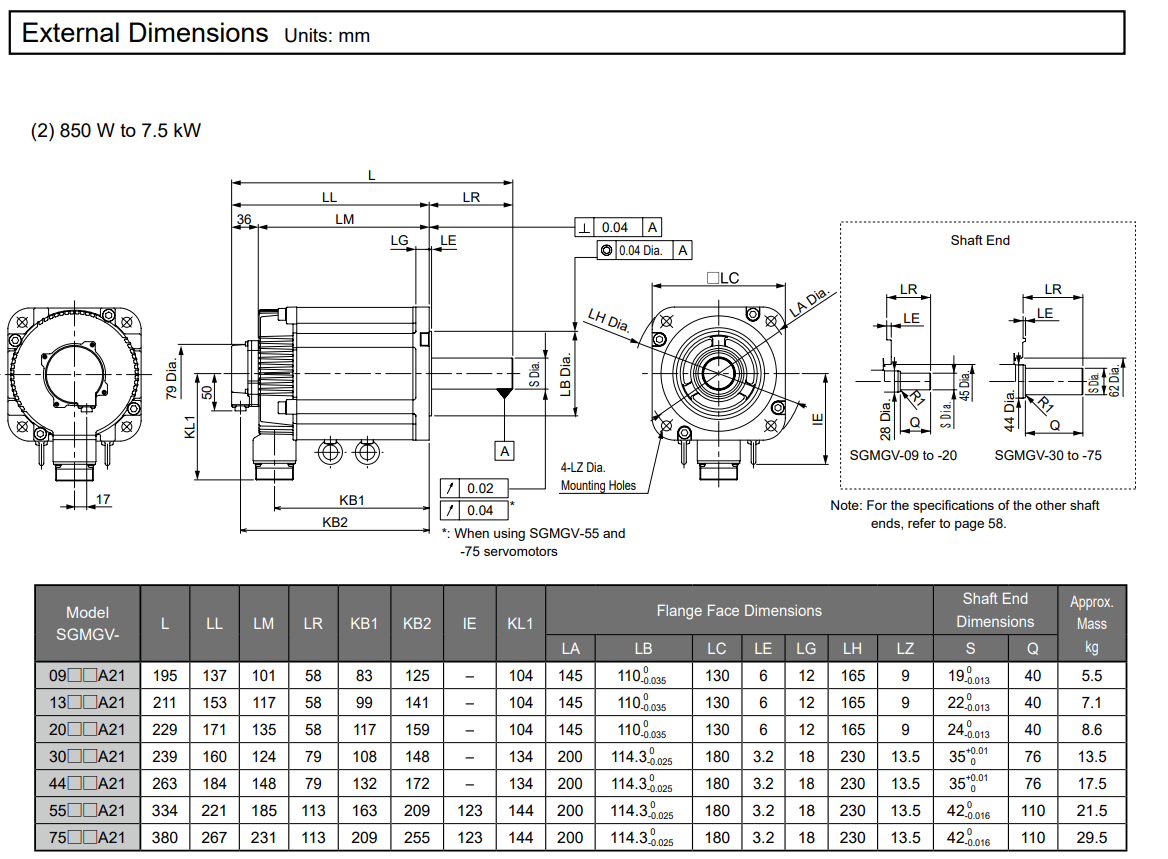

CAD1 (2)

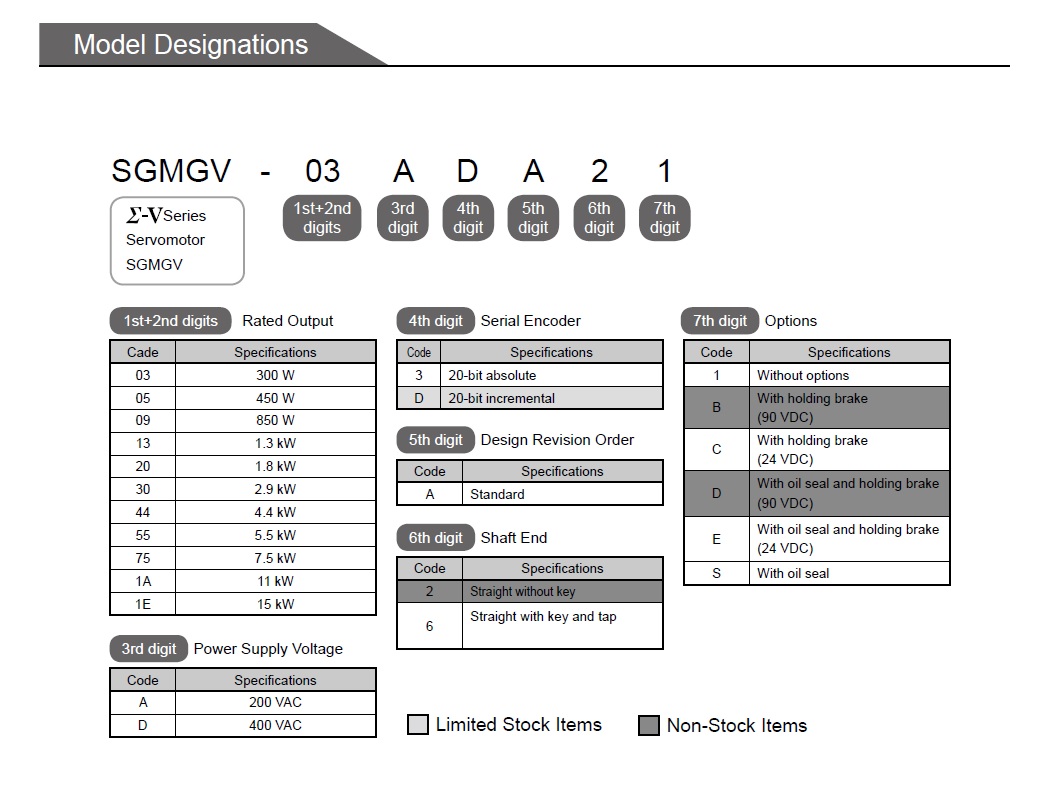

Buying Guide
