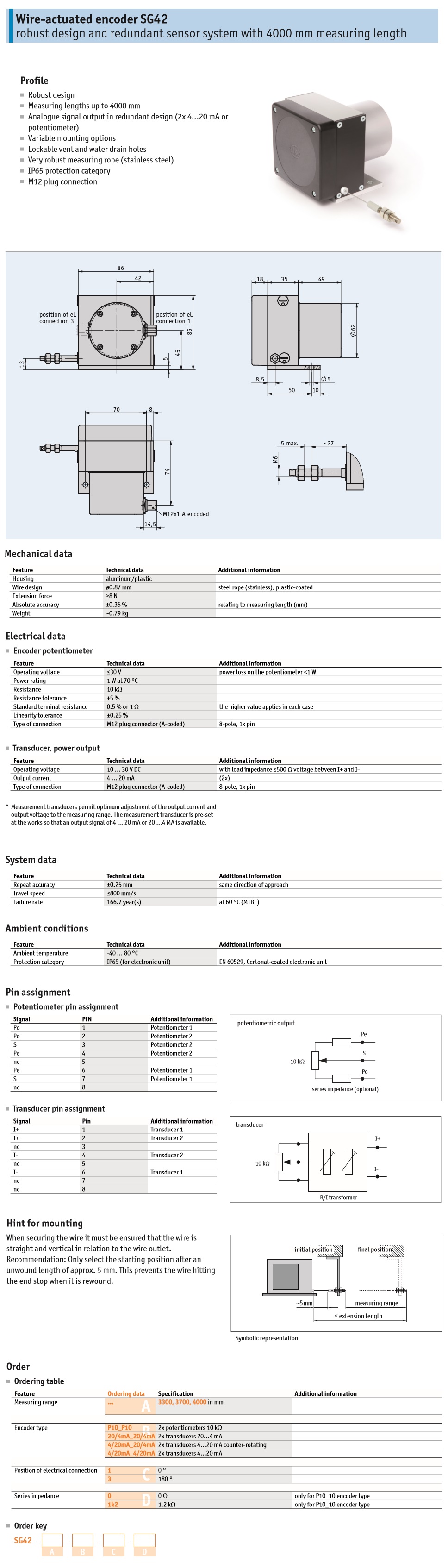

Description Specifications and Drawings


SIKO: Wire-actuated Encoder SG42-0014

Robust design and redundant sensor system with 4000 mm measuring length

Wire-actuated encoder with redundant acquisition of linear measurement distances with a max. measuring length of 4000 mm.

Profile SG42:

  • Robust design

  • Measuring lengths up to 4000 mm

  • Analogue signal output in redundant design (2x 4…20 mA or potentiometer)

  • Variable mounting options

  • Lockable vent and water drain holes

  • Very robust measuring rope (stainless steel)

  • IP65 protection category

  • M12 plug connection
