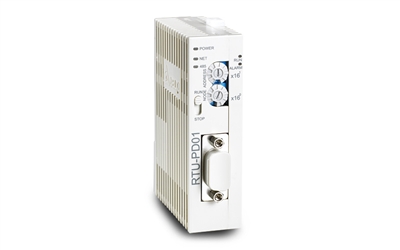

Delta: Industrial Fieldbus Solution (RTU-PD01 Series)
Delta Electronics provides complete solutions for drive, motion and control type of industrial automation products. Apart from general Modus serial communication, we further offer advanced CANopen, DeviceNet, Ethernet, EtherNet/IP and PROFIBUS fieldbus solutions for complex and harsh industrial sites and demands for high speed as well as stable and highly cost-effective choices of applications.
PROFIBUS Communication Devices (RTU-PD01 Series)
Supports max. baudrate 12M bps
Applicable for distributed control system in industrial automation
Features:
A PROFIBUS DP remote communication module
Supports PROFIBUS DPV0 cyclic data transmission
Auto-detects baud rate, diagnosis
Max. baud rate: 12M bps
Connectable to 8 DVP-S series analog I/O modules
Connectable to 256 points of digital I/O modules
RS-485 port is connectable to max. 16 Modbus slaves
Supports max. 100 bytes of I/O data input and 100 bytes of output
Specifications:
Transmission method: High-speed RS-485
Connector: DB9
Serial baud rate: 9.6k, 19.2k, 93.75k, 187.5k, 500k, 1.5M, 3M, 6M, 12M bps
Message type: DPV0
Power supply voltage: 24 VDC (-15 to 20%)
Power consumption: 2.5 W
Insulation voltage: 500 VDC
