Beijer Electronics: Legacy HMI (PPC T15C Series)
Beijer Electronics: Legacy HMI (PPC T15C Series)



Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: PPC-T15C
.

Description Specifications and Drawings


Beijer Electronics: Legacy HMI (PPC T15C Series)


PPC TxC

Panel PCs for demanding 3rd party windows applications


Legacy HMI's

While the iX HMI product family is the core of our visualization offer, we still deliver several other units developed with quality and the user in focus. Here you will find product information on products e.g. operator panels not supported by iX, PCs, monitors and legacy products.

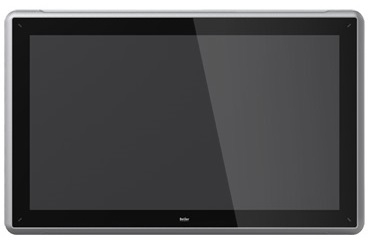

Extended performance panel PC

The panel PC series PPC TxC allows a wide range of complex applications. All versions have high resolution widescreen displays and the PPC T21C models offer full-HD. Display sizes: 12″, 15″ and 21″.


Features:

  • 15.4″ TFT-LCD touch screen

  • 1280 × 800 (16:10), 16 mio. colors, LED backlight

  • Intel® Celeron® B810E (2 × 1.6 GHz)/
    Intel® Core™ i7-2715QE (4 x 2.1 GHz)

  • Main memory 2 GB - 4 GB DDR3 (with ECC support)

  • Application memory 64 GB – 128 GB 2.5″ SSD

  • WES7, Windows® 7

  • Operating temperature 0 to +50 °C

  • CE, UL 508 and DNV

  • +24 V DC (18-32 V DC)

  • 410 x 286 x 83mm
