Kavlico: Silicon Capacitive Pressure Sensors (P992 Series)
Kavlico has more than 50 years of experience in the design of innovative pressure, position, force and other specialty sensors and transducers for mission critical applications in harsh environments for Transportation, Building Equipment, Energy & Infrastructure, Food & Beverage, Medical as well as Aerospace & Defense markets.
Kavlico Pressure Sensors pioneered the electronic pressure sensor and transducer market. Focused on premium quality products, and adapting innovative pressure sensing technologies to meet customer needs, Kavlico Pressure continues to be a leader in creating pressure sensing solutions for a cleaner, safer, more comfortable world.
Our broad range of technologies, such as Thin Film, Ceramic Capacitive, Piezo-Resistive and Silicon Capacitive, allows Kavlico Pressure Sensors to provide cutting-edge measurement devices for a diverse number of applications within several market segments.
Kavlico Pressure Sensors silicon capacitive technology has set the standard for low range differential pressure measurement for a wide variety of HVAC and VAV applications in the industrial market.
Kavlico's low pressure range differential pressure transducers designed for HVAC and VAV, static pressure controls, filter monitoring and medical equipment applications. These innovative rugged designs eliminates mounting position effects. In combination with Kavlico's mixed-signal CMOS ASIC, which ensures high accuracy at lowest pressure ranges starting with 1" H2O, superior stability makes these silicon capacitive pressure sensors the best choice for repeatable, low pressure measurements in a board-mountable footprint.

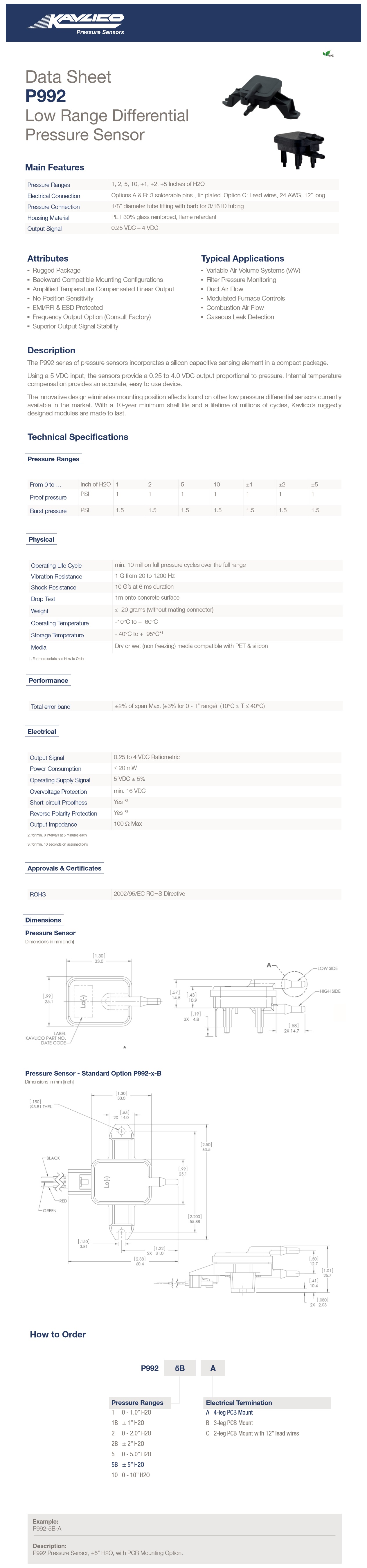

The P992 series Pressure Transducer incorporates a Silicon Capacitive sensing element in a compact package. Using a 5 Vdc input, the sensors provide a 0.25 to 4.0 Vdc output proportional to pressure. The internal temperature compensation provides an accurate, easy to use device. The innovative design eliminates mounting position effects for low pressure differential sensing down to 1" H2O.
Rugged Package
Backward Compatible Mounting Configurations
Amplified Temperature Compensated Linear Output
No Position Sensitivity
EMI/RFI and ESD Protected
Frequency Output Option
Superior Output Signal Stability
Variable Air Volume Systems (VAV)
Filter Pressure Monitoring
Duct Air Flow
Modulated Furnace Controls
Combustion Air Flow
Gaseous Leak Detection
Standard Full Scale Pressure Ranges
0 - 1, 0 - 1.5, 0 - 2, 0 - 5, 0 - 10" H2O
0 - +/-1, 0 - +/-2, 0 - +/-5" H2O
