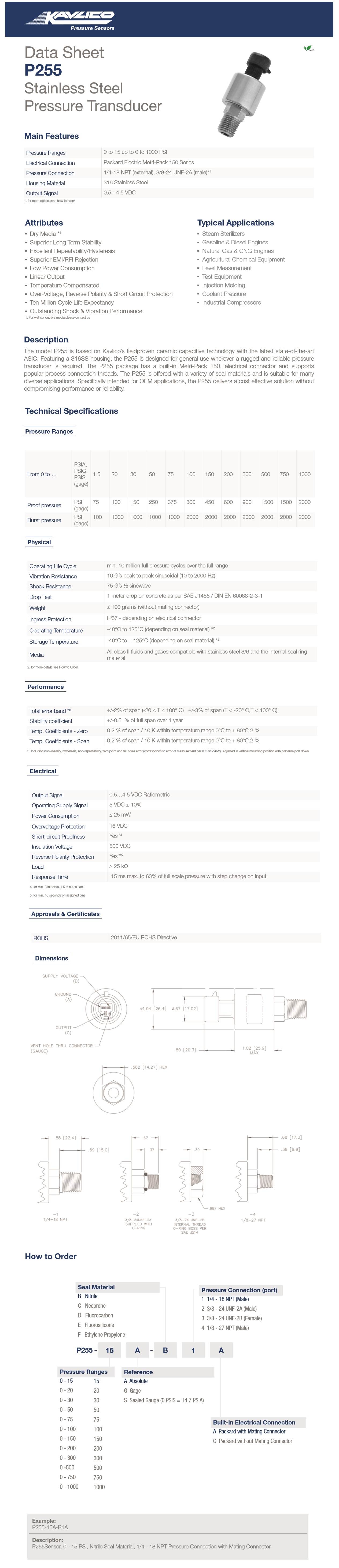

Kavlico: Ceramic Capacitive Pressure Sensors (P255 Series) Kavlico has more than 50 years of experience in the design of innovative pressure, position, force and other specialty sensors and transducers for mission critical applications in harsh environments for Transportation, Building Equipment, Energy & Infrastructure, Food & Beverage, Medical as well as Aerospace & Defense markets. Kavlico Pressure Sensors pioneered the electronic pressure sensor and transducer market. Focused on premium quality products, and adapting innovative pressure sensing technologies to meet customer needs, Kavlico Pressure continues to be a leader in creating pressure sensing solutions for a cleaner, safer, more comfortable world. Our broad range of technologies, such as Thin Film, Ceramic Capacitive, Piezo-Resistive and Silicon Capacitive, allows Kavlico Pressure Sensors to provide cutting-edge measurement devices for a diverse number of applications within several market segments. Flexible by design, Kavlico Pressure Sensors pressure sensors and transducers can be easily adapted to meet unique customer requirements. Ceramic Capacitive Pressure Sensors With more than 40 years of experience Kavlico Pressure Sensors is a leading pressure sensor manufacturer using this robust, reliable and media resistant Ceramic Capacitive Sensing Technology. Kavlico's Ceramic Capacitive Pressure Sensors incorporates the latest generation sensing elements with state-of-the-art ASIC's. Our Sensors and Transmitters are available in multiple standard configurations as well as customized adaptations. Ceramic Capacitive pressure Sensors are designed for harsh environments, with superior EMI protection, high overpressure capability, outstanding shock and vibration performance, and exceptional long term stability. This P255 pressure sensor is offered with a variety of seal materials and is suitable for many diverse applications. Specifically intended for OEM applications, the P255 delivers a cost effective solution without compromising performance or reliability.
Features Wet & Dry Media Superior Long Term Stability Excellent Repeatability/Hysteresis Superior EMI/RFI Rejection Low Power Consumption Linear Amplified Output Temperature Compensated Over-Voltage, Reverse Polarity & Short Circuit Protection Ten Million Cycle Life Expectancy Outstanding Shock & Vibration Performance
Marine Agriculture Equipment Petrochemical Equipment HVAC Gas Tank Pressure Test Equipment Injection Molding Industrial Compressors
Standard Full Scale Pressure Ranges 0-15, 20, 30, 50, 75, 100, 150, 0-200, 300, 500, 750, and 1000 PSIA, PSIG, PSIS
|
|
|
 |
|
 |
|
