Faulhaber: Gearhead (MD22P Series)
Faulhaber: Gearhead (MD22P Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: MD22P


Model No.:

.

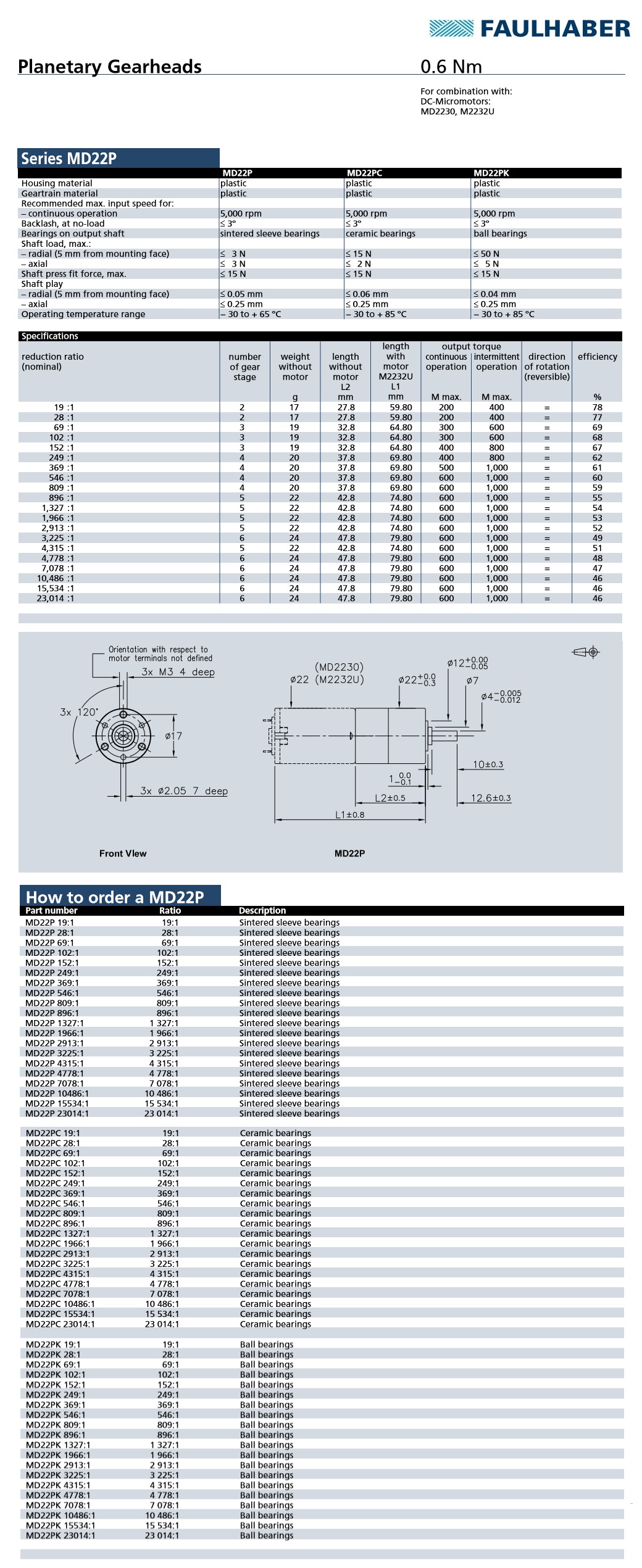

Description Specifications and Drawings


Faulhaber: Gearhead (MD22P Series)

FAULHABER develops high performance modular gearheads to complement each of its motor technologies.

From high torque planetary technology in a variety materials, to zero backlash spur gears, FAULHABER has the right solution.

Specifications:

  • Diameter (mm): 22

  • Type: Planetary

  • Reduction Ratios: 19:1...23,014:1

  • Shaft Diameter (mm): 4

  • Torque Continuous (mNm): 600

  • Torque Intermittent (mNm): 1,000

Model No.: MD22P 102:1, MD22P 10486:1, MD22P 1327:1, MD22P 152:1, MD22P 15534:1, MD22P 19:1, MD22P 1966:1, MD22P 23014:1, MD22P 249:1, MD22P 28:1, MD22P 2913:1, MD22P 3225:1, MD22P 369:1, MD22P 4315:1, MD22P 4778:1, MD22P 546:1, MD22P 69:1, MD22P 7078:1, MD22P 809:1, MD22P 896:1

MD22PC 102:1, MD22PC 10486:1, MD22PC 1327:1, MD22PC 152:1, MD22PC 15534:1, MD22PC 19:1, MD22PC 1966:1, MD22PC 23014:1, MD22PC 249:1, MD22PC 28:1, MD22PC 2913:1, MD22PC 3225:1, MD22PC 369:1, MD22PC 4315:1, MD22PC 4778:1, MD22PC 546:1, MD22PC 69:1, MD22PC 7078:1, MD22PC 809:1, MD22PC 896:1

MD22PK 102:1, MD22PK 10486:1, MD22PK 1327:1, MD22PK 152:1, MD22PK 15534:1, MD22PK 19:1, MD22PK 1966:1, MD22PK 23014:1, MD22PK 249:1, MD22PK 28:1, MD22PK 2913:1, MD22PK 3225:1, MD22PK 369:1, MD22PK 4315:1, MD22PK 4778:1, MD22PK 546:1, MD22PK 69:1, MD22PK 7078:1, MD22PK 809:1, MD22PK 896:1
