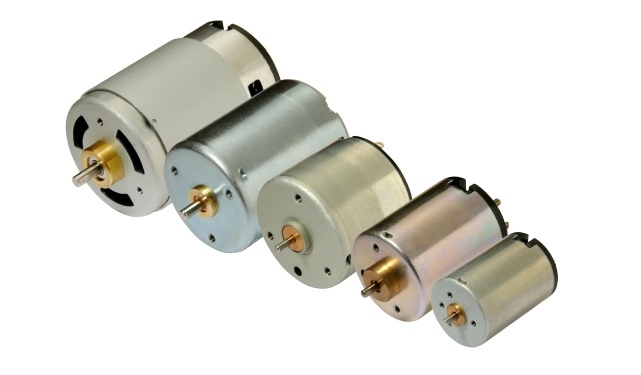

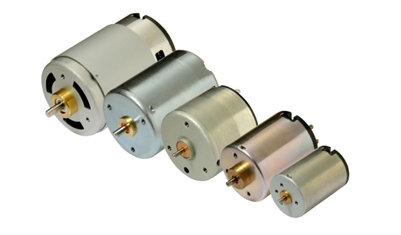

Faulhaber: Micro-Drives DC Motors (MD2232UGS Series)

Micro-Drives DC motors were designed to offer a cost-effective solution for challenging OEM applications where reliability and precision are vital. The micro DC motors are compact, lightweight and powerful.

Micro-Drives DC motors offer strong efficiencies and a high peak load through use of premium ferrite materials and optimized magnet systems. The DC motors are rated in power from 0.34 W to 100 W with mounting options for encoders and for planetary and spur gearheads with torque up to 10 Nm.

DC Micromotors feature:

  • High precision performance

  • Low brush contact resistance

  • Less power required

  • Graphite commutation achieves extended service life

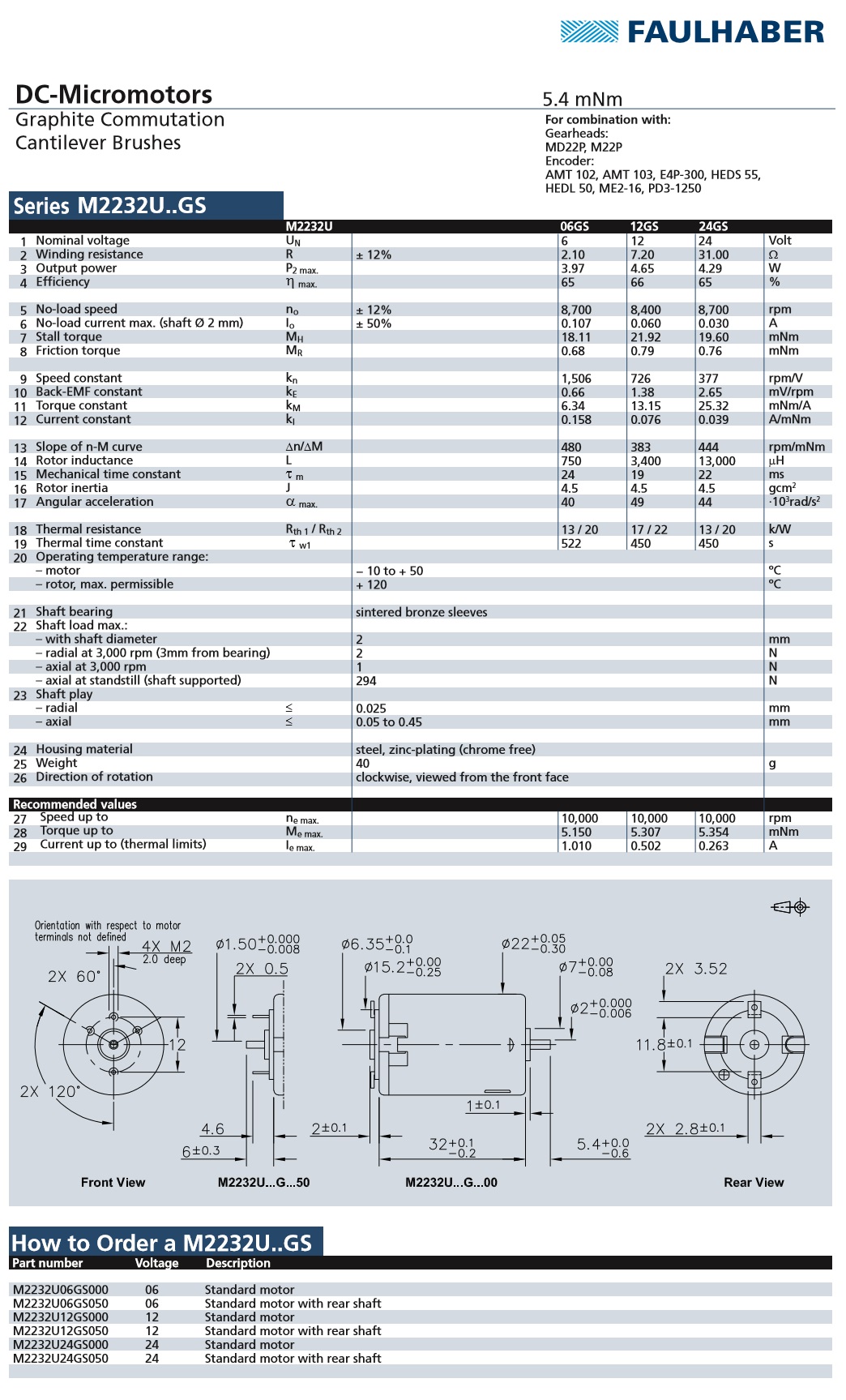

Specifications:

  • Diameter (mm): 22

  • Length (mm): 32

  • Shaft Diameter (mm): 2

  • Nominal Voltage (V): 6, 12, 24

  • No-Load Speed (rpm): 8,700

  • Rated Torque (mNm): 5.4

  • Output Power (Watt): 4.65

Model No.: M2232U06GS000, M2232U06GS050, M2232U12GS000, M2232U12GS050, M2232U24GS000, M2232U24GS050
