Faulhaber: Micro-Drives DC Motors (MD1622 Series)
Faulhaber: Micro-Drives DC Motors (MD1622 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: MD1622


Model No.:

.

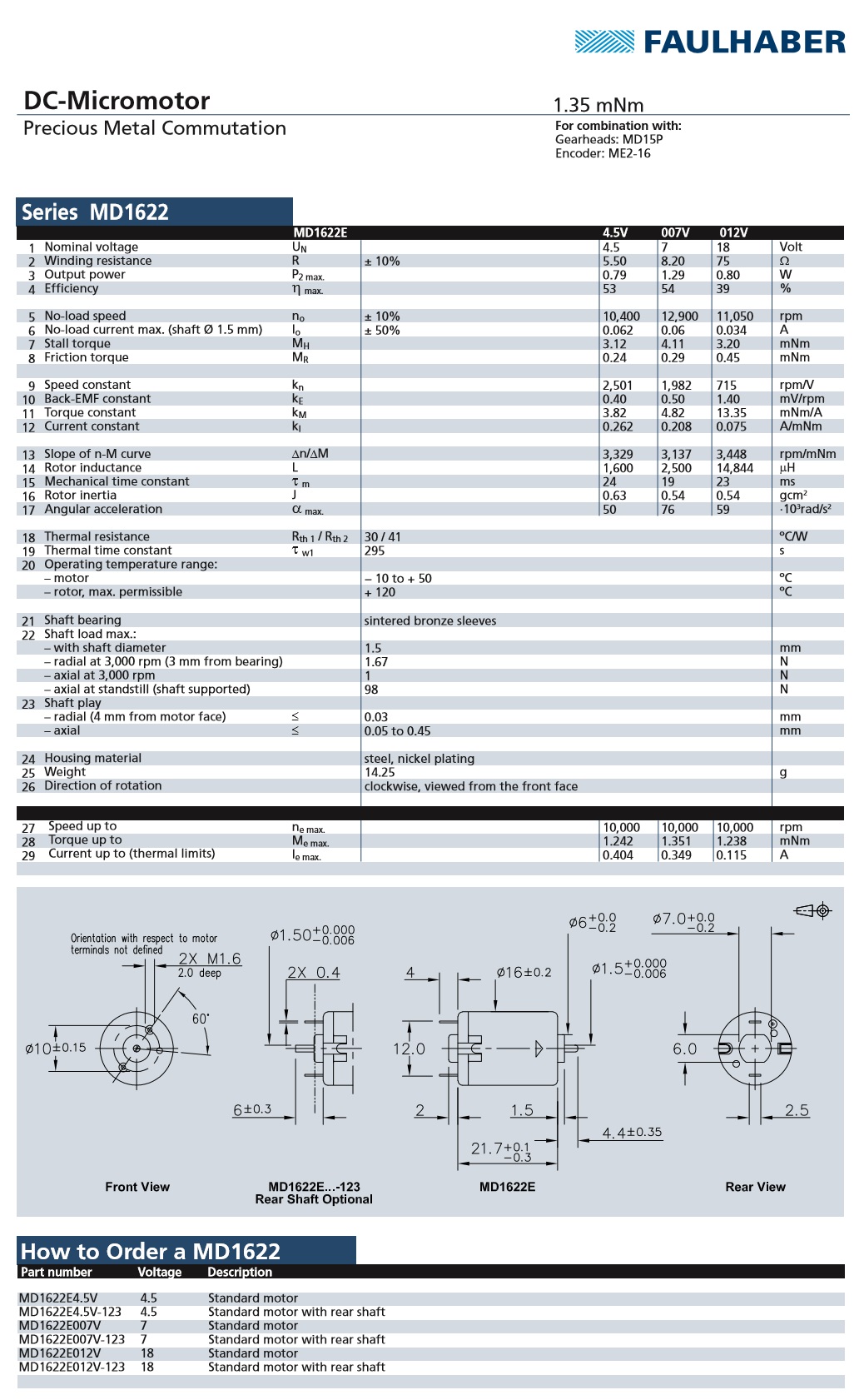

Description Specifications and Drawings


Faulhaber: Micro-Drives DC Motors (MD1622 Series)

Micro-Drives DC motors were designed to offer a cost-effective solution for challenging OEM applications where reliability and precision are vital. The micro DC motors are compact, lightweight and powerful.

Micro-Drives DC motors offer strong efficiencies and a high peak load through use of premium ferrite materials and optimized magnet systems. The DC motors are rated in power from 0.34 W to 100 W with mounting options for encoders and for planetary and spur gearheads with torque up to 10 Nm.

DC Micromotors feature:

  • High precision performance

  • Low brush contact resistance

  • Less power required

  • Graphite commutation achieves extended service life

Specifications:

  • Diameter (mm): 16

  • Length (mm): 21.7

  • Shaft Diameter (mm): 1.5

  • Nominal Voltage (V): 4, 5, 7, 18

  • No-Load Speed (rpm):12,900

  • Rated Torque (mNm):1.35

  • Output Power (Watt): 1.29

Model No.: MD1622E007V, MD1622E007V-123, MD1622E012V, MD1622E012V-123, MD1622E4.5V, MD1622E4.5V-123
