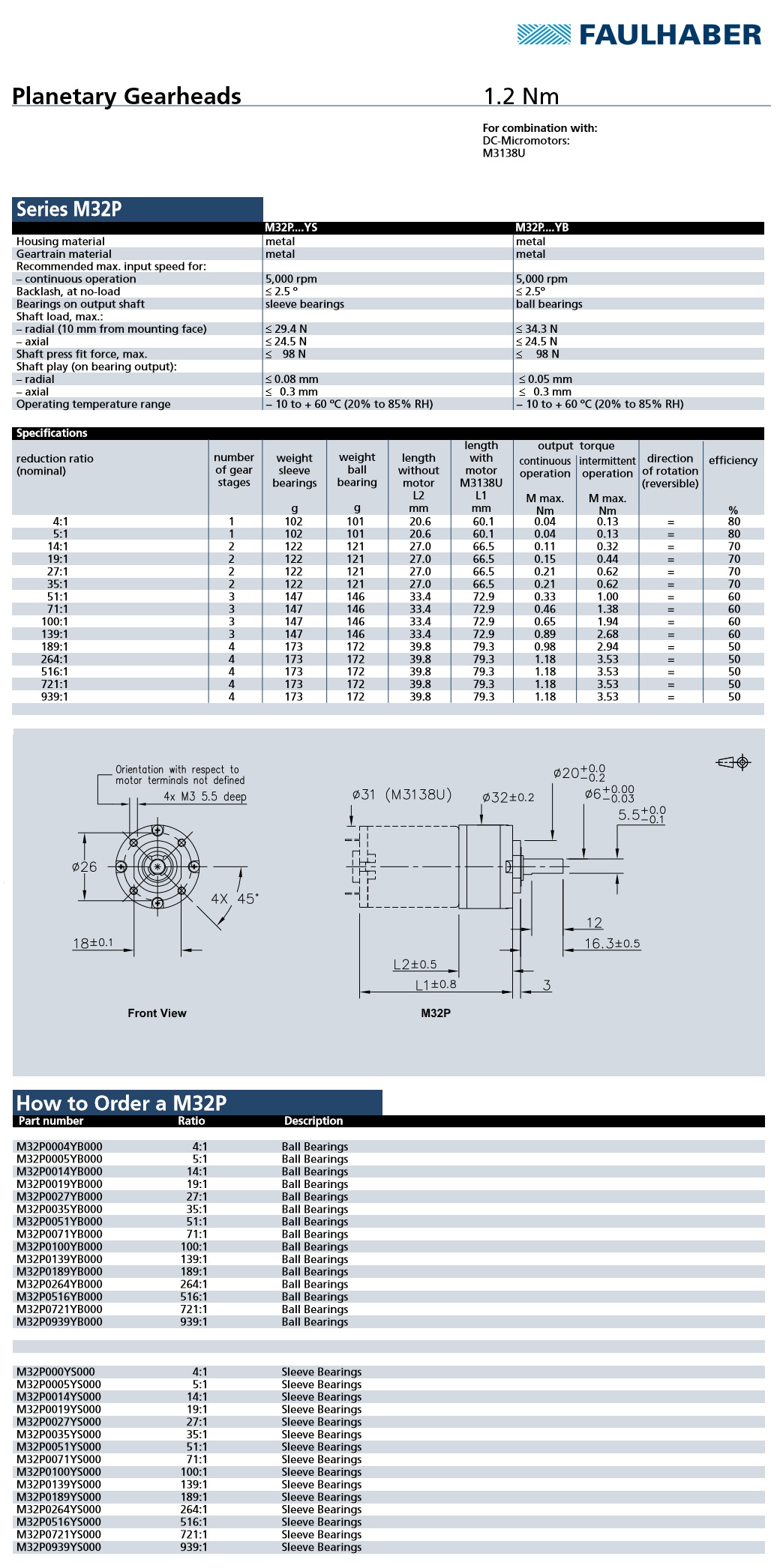

Faulhaber: Gearhead (M32P Series)
FAULHABER develops high performance modular gearheads to complement each of its motor technologies.
From high torque planetary technology in a variety materials, to zero backlash spur gears, FAULHABER has the right solution.
Diameter (mm): 32
Type: Planetary
Reduction Ratios: 5:1...721:1
Shaft Diameter (mm): 6
Torque Continuous (mNm): 1,180
Torque Intermittent (mNm): 3,530
Model No.: M32P0004YB000, M32P0005YB000, M32P0005YS000, M32P000YS000, M32P0014YB000, M32P0014YS000, M32P0019YB000, M32P0019YS000, M32P0027YB000, M32P0027YS000, M32P0035YB000, M32P0035YS000, M32P0051YB000, M32P0051YS000, M32P0071YB000, M32P0071YS000, M32P0100YB000, M32P0100YS000, M32P0139YB000, M32P0139YS000, M32P0189YB000, M32P0189YS000, M32P0264YB000, M32P0264YS000, M32P0516YB000, M32P0516YS000, M32P0721YB000, M32P0721YS000, M32P0939YB000, M32P0939YS000
