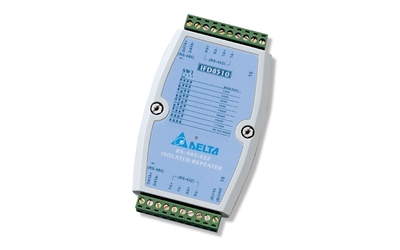

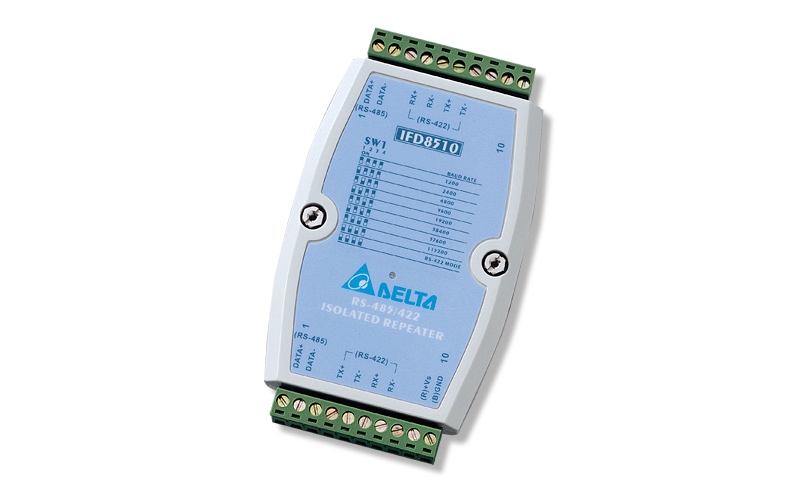

Delta: Industrial Fieldbus Solution (IFD8510 Series)

Delta Electronics provides complete solutions for drive, motion and control type of industrial automation products. Apart from general Modus serial communication, we further offer advanced CANopen, DeviceNet, Ethernet, EtherNet/IP and PROFIBUS fieldbus solutions for complex and harsh industrial sites and demands for high speed as well as stable and highly cost-effective choices of applications.

Modbus Serial Communication Devices (IFD8510 Series)

  • Supports Modbus serial communication

  • Offers additional RS-232, RS-422 and RS-485 ports and conversions among channels for various on-site demands

Features:

  • A serial signal regenerator

  • Extends RS-422/485 transmission to 1.2km

  • Connectable to 32 RS-485 devices

  • Isolation in RS-485 channel (incl. power supply)

Specifications:

  • Power supply: +9 to +35 VDC

  • Power consumption: 1.6 W

  • Insulation voltage: 3,000 VDC

  • Baud rate: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps

  • Terminal: 10-pin, accepts AWG1-#12 to #24 wires

  • Dimensions (L×W×H): 4.80×2.79×0.87in (122mm×71mm×22mm)
