OptoSigma: Goniometers (GOHT-60A Series)

Goniometers are rotation stages that rotate about an axis that is located at a distance above the surface of the stage.
Used for direction adjustment and correction, or tilting and rotation of samples.
Products with different guide mechanisms or feed mechanisms are also available.

Extended Contact Ball Guide

High precision goniometers with integrated bearing ways for superior stiffness, accuracy and durability.
Their smooth movement is ideal for frequent operations.

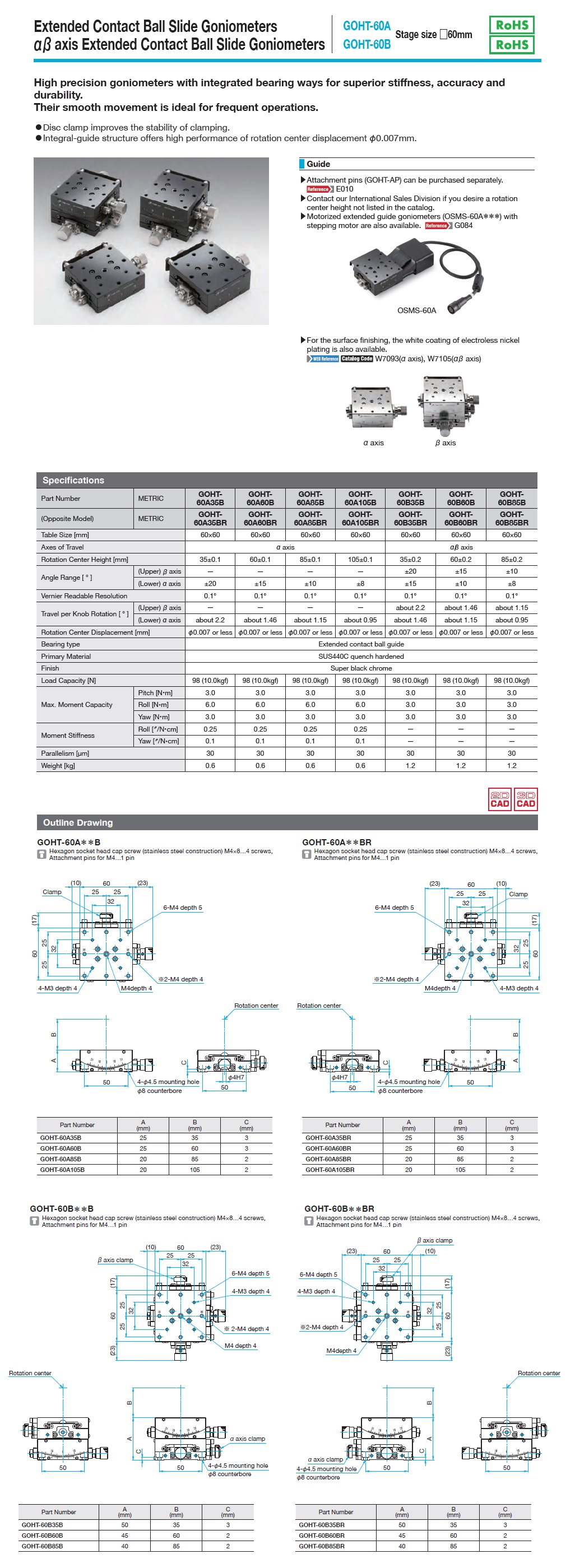

Extended Contact Ball Slide Goniometers (GOHT-60A Series) Stage Size: 60mm

High precision goniometers with integrated bearing ways for superior stiffness, accuracy and durability.
Their smooth movement is ideal for frequent operations.

Model No.: GOHT-60A105, GOHT-60A105B, GOHT-60A105BR, GOHT-60A105R, GOHT-60A35, GOHT-60A35B, GOHT-60A35BR, GOHT-60A35R, GOHT-60A60, GOHT-60A60B, GOHT-60A60BR, GOHT-60A60R, GOHT-60A85, GOHT-60A85B, GOHT-60A85BR, GOHT-60A85R
