Nanomotion: Piezo Motor Drive Stage (EM4X Series)
Nanomotion: Piezo Motor Drive Stage (EM4X Series)



Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: EM4X-S-1-O
.

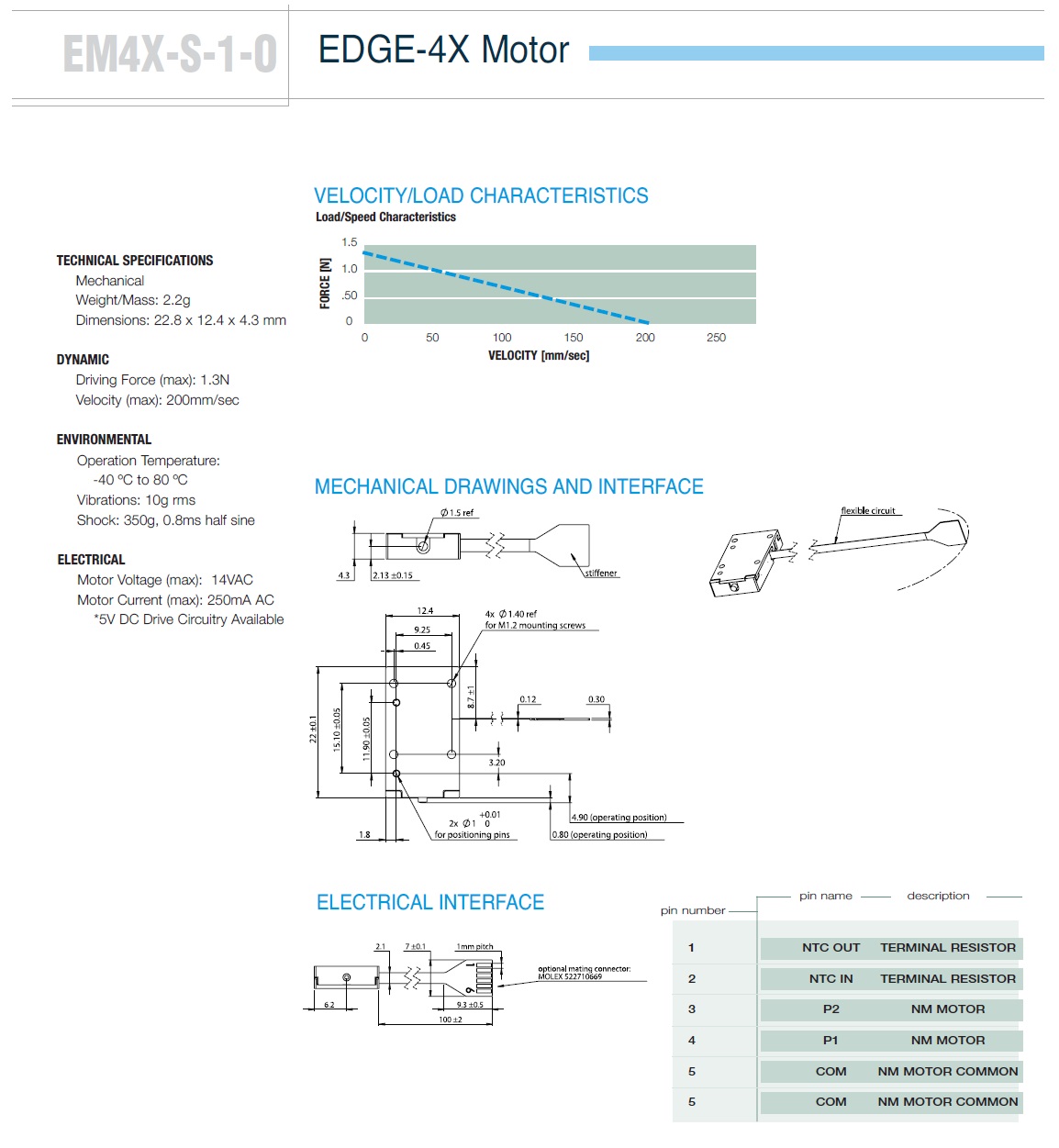

Description Specifications and Drawings


Nanomotion: Piezo Motor (EM4X Series)


The EDGE-4X motor offers a small footprint for unlimited linear and rotary motion. The EDGE-4X provides 1.3N max force and is capable of achieving 200mm/sec maximum velocity. The EDGE-4X can easily adapt to numerous bearing structures to provide high resolution motion control for a wide range of applications in defense optronics, medical and semiconductor markets.


EDGE-4X Moto Features:

  • Small operating footprint

  • Wide dynamic velocity range

  • Zero backlash

  • Holds position at power off

  • Silent operation

  • Negligible EMI

  • Non-magnetic motor


Application Recommendations:

The EDGE-4X motor expands the Nanomotion’s product line of low voltage piezo motors, bringing 4 times the force of the Edge motor. The EDGE-4X provides up to 1.3N force with unlimited travel for linear or rotary applications. continuing to optimize size, weight and power, the EDGE-4X is well suited to:

  • Auto Focus & Zoom Requirements

  • Pan & Tilt Gimbal Drive

  • Optical image Stabilization Modules
