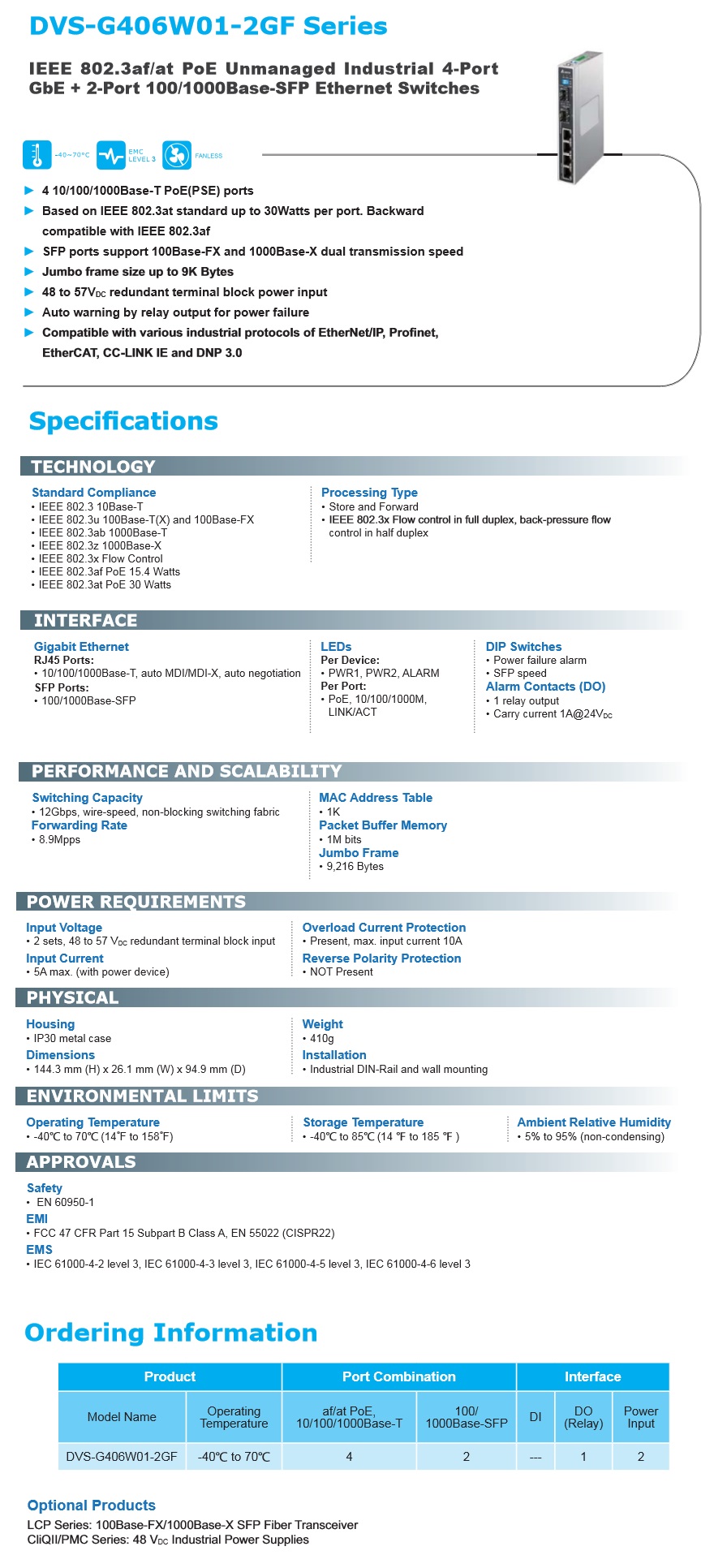

Delta: Industrial Ethernet Solution (DVS-G406W01-2GF Series)

Delta has just launched the Delta Industrial Ethernet Total Solution, which provides Ethernet products with enhanced hardware design, a user-friendly software interface, packet protection and compatibility with multiple industrial communication standards. With the rise of industrial automation technology and intelligent municipal engineering systems, the Ethernet, with its advantages of high speed, high stability and high compatibility, has become the most popular and widely used communication protocol. Based on Delta’s accumulated customer service experience and industrial know-how, the Delta Industrial Ethernet Total Solution helps customers construct an industrial Ethernet system that will satisfy their requirements in a wide range of applications. All of Delta’s Ethernet products are certified to UL, CE and FCC standards.

Ethernet (Unmanaged) Switches: DVS-G406W01-2GF Series

Supports IEEE802.3x full/half-duplex, auto-MDI/MDI-X.
Excellent ruggedized hardware design of 12 to 48 VDC redundant power inputs and a wide-operating temperature from -40℃ to 75℃ without the use of internal fans are providing superior reliability.
DIP switches for built-in alarm relay function, assisting network engineers with notification when port link-down and power failures occur.

Features:

  • 4 10/100/1000Base-T PoE(PSE) ports

  • Based on IEEE 802.3at standard up to 30Watts per port. Backward compatible with IEEE 802.3af

  • SFP ports support 100Base-FX and 1000Base-X dual transmission speed

  • Jumbo frame size up to 9,216 Bytes

  • 48 to 57VDC redundant terminal block power input

  • Auto warning by relay output for power failure

  • Compatible with various industrial protocols of EtherNet/IP, Profinet, EtherCAT, CC-LINK IE and DNP 3.0

Specifications:

Technology

Standard Compliance

  • IEEE 802.3 10Base-T

  • IEEE 802.3u 100Base-T(X) and 100Base-FX

  • IEEE 802.3ab 1000Base-T

  • IEEE 802.3z 1000Base-X

  • IEEE 802.3x Flow Control

  • IEEE 802.3af PoE 15.4 Watts

  • IEEE 802.3at PoE 30 Watts

Processing Type

  • Store and Forward

  • IEEE 802.3x Flow control in full duplex, back-pressure flow control in half duplex

Interface

Gigabit Ethernet

  • RJ45 Ports: 4 10/100/1000Base-T, auto MDI/MDI-X, auto negotiation

  • SFP Ports: 2 100/1000Base-SFP

DIP Switches

  • Power failure alarm

  • SFP speed

Alarm Contact(DO)

  • 1 relay output

  • Carry current 1A@24VDC

Performance and Scalability

  • Switching Capacity: 12Gbps, wired-speed, non-blocking switching fabric

  • Forwarding Rate: 8.9Mpps

  • MAC Address Table: 1K

  • Packet Buffer Memory: 1M bits

  • Jumbo Frame: 9,216 Bytes

Power Requirements

  • Input Voltage: 2 sets, 48 to 57VDC redundant terminal block input

  • Input Current: 5A max. (with power device)

  • Overload Current Protection: Present, max. input current 10A

  • Reverse Polarity Protection: NOT Present

Physical

  • Housing : IP30 metal case

  • Dimensions : 144.3 mm(H) x 26.1 mm(W) x 94.9 mm (D)

  • Weight : 410g

  • Installation : Industrial DIN-Rail and wall mounting

Environmental Limits

  • Operating Temperature : -40℃ to 70℃(-40°F to 158°F)

  • Storage Temperature: -40℃ to 85℃(-40°F to 185°F)

  • Ambient Relative Humidity: 5% to 95%(non-condensing)

Approvals

  • Safety: EN 60950-1

  • EMI: FCC 47 CFR Part 15 Subpart B Class A, EN 55022(CISPR22)

  • EMS: IEC 61000-4-2 level 3, IEC 61000-4-3 level 3, IEC 61000-4-5 level 3, IEC 61000-4-6 level 3
