Delta: Industrial Ethernet Solution (DVS-G005I00A Series)

Delta has just launched the Delta Industrial Ethernet Total Solution, which provides Ethernet products with enhanced hardware design, a user-friendly software interface, packet protection and compatibility with multiple industrial communication standards. With the rise of industrial automation technology and intelligent municipal engineering systems, the Ethernet, with its advantages of high speed, high stability and high compatibility, has become the most popular and widely used communication protocol. Based on Delta’s accumulated customer service experience and industrial know-how, the Delta Industrial Ethernet Total Solution helps customers construct an industrial Ethernet system that will satisfy their requirements in a wide range of applications. All of Delta’s Ethernet products are certified to UL, CE and FCC standards.

Ethernet (Unmanaged) Switches: DVS-G005I00A Series

Supports IEEE802.3x full/half-duplex, auto-MDI/MDI-X.
Excellent ruggedized hardware design of 12 to 48 VDC redundant power inputs and a wide-operating temperature from -40℃ to 75℃ without the use of internal fans are providing superior reliability.
DIP switches for built-in alarm relay function, assisting network engineers with notification when port link-down and power failures occur.

Features:

  • Supports IEEE 802.1p based QoS for packet forwarding precedence

  • Built-in Broadcast Storm Protection

  • Transparent transmission of VLAN tagged packets

  • Jumbo frame size up to 9216 Bytes

  • EEE Green Ethernet power saving

  • Compatible with various industrial protocols of EtherNet/IP, Profinet, EtherCAT, CC-LINK IE and DNP 3.0

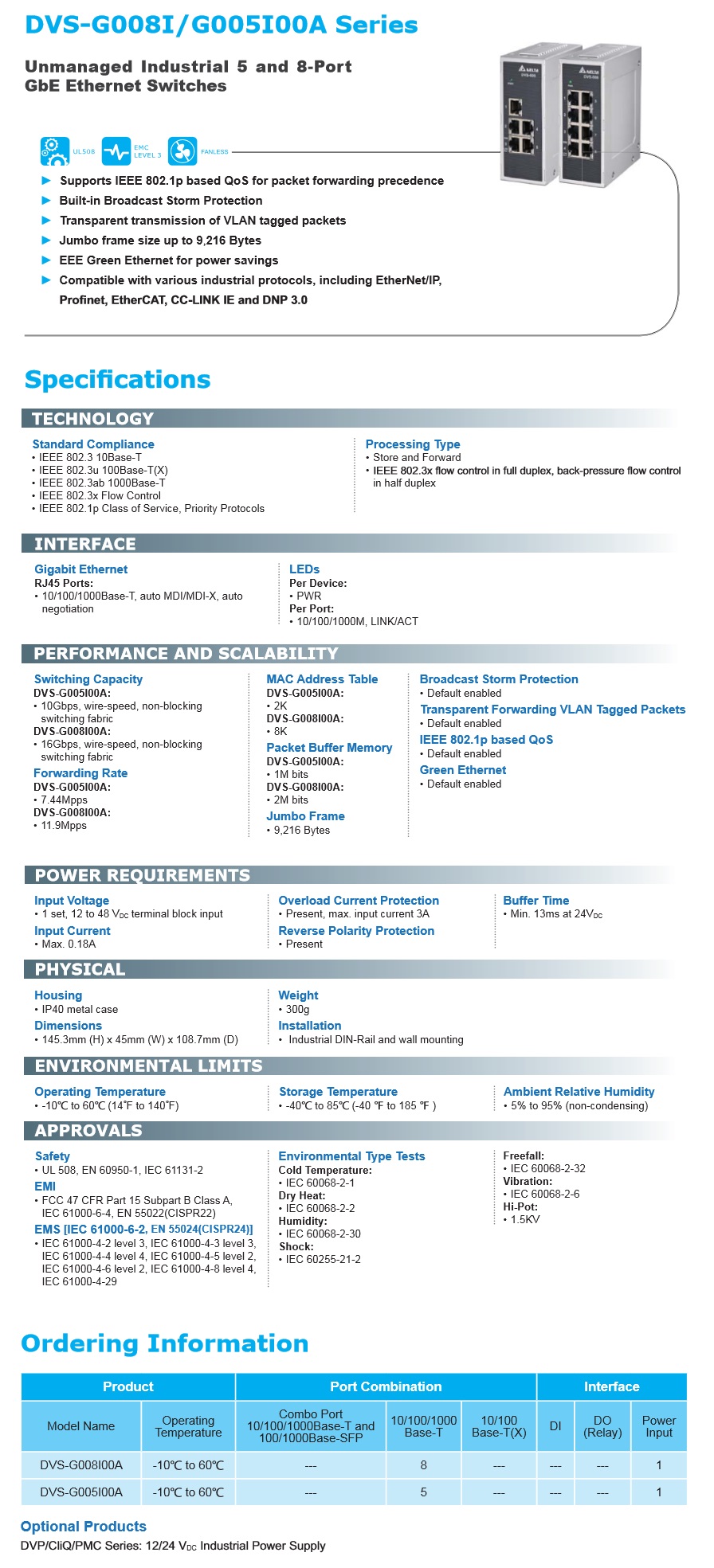

Specifications:

Technology

Standard Compliance

  • IEEE 802.3 10Base-T

  • IEEE 802.3u 100Base-T(X) and 100Base-FX

  • IEEE 802.3ab 1000Base-T

  • IEEE 802.3x Flow Control

  • IEEE 802.1p Class of Service, Priority Protocols

Processing Type

  • Store and Forward

  • IEEE 802.3x Flow control in full duplex, back-pressure flow control in half duplex

Interface

  • Gigabit Ethernet Ports

  • RJ45 Ports: 5 10/100/1000Base-T, auto MDI/MDI-X, auto negotiation

Performance and Scalability

  • Switching Capacity: 10Gbps, Wired speed, Non-blocking switching fabric

  • Forwarding Rate: 7.44Mpps

  • MAC Address Table: 2K

  • Packet Buffer Memory: 1M bits

  • Jumbo Frame: 9,216 Bytes

  • Broadcast Storm Protection: Default enabled

  • Transparent Forwarding VLAN Tagged Packets: Default enabled

  • IEEE 802.1p based QoS: Default enabled1

  • Green Ethernet: Default enabled

Power Requirements

  • Input Voltage: 1 set, 12 to 48 VDC terminal block input

  • Input Current: Max. 0.18A

  • Overload Current Protection: Present, Max. input current 3A

  • Reverse Polarity Protection: Present

  • Buffer Time: Min. 13ms at 24VDC

Physical

  • Housing: IP40 aluminum metal case

  • Dimensions: 145.3 mm(H) × 45 mm(W) × 108.7 mm (D)

  • Weight: 300g

  • Installation: Industrial DIN-Rail and wall mounting

Environmental Limits

  • Operating Temperature: -10℃ to 60℃(14℉ to 140℉)

  • Storage Temperature: -40℃ to 85℃(-40℉ to 185℉)

  • Ambient Relative Humidity: 5% to 95%(non-condensing)

Approvals

  • Safety: UL 508, EN 60950-1, IEC 61131-2

  • EMI: FCC 47 CFR Part 15 Subpart B Class A, IEC 61000-6-4, EN 55022

  • EMS: IEC 61000-6-2

Environmental Type Tests

  • Cold Temperature: IEC 60068-2-1

  • Dry Heat: IEC 60068-2-2

  • Humidity: IEC 60068-2-30

  • Shock: IEC 60255-21-2

  • Freefall: IEC 60068-2-32

  • Vibration: IEC 60068-2-6

  • Hi-Pot: 1.5KV
