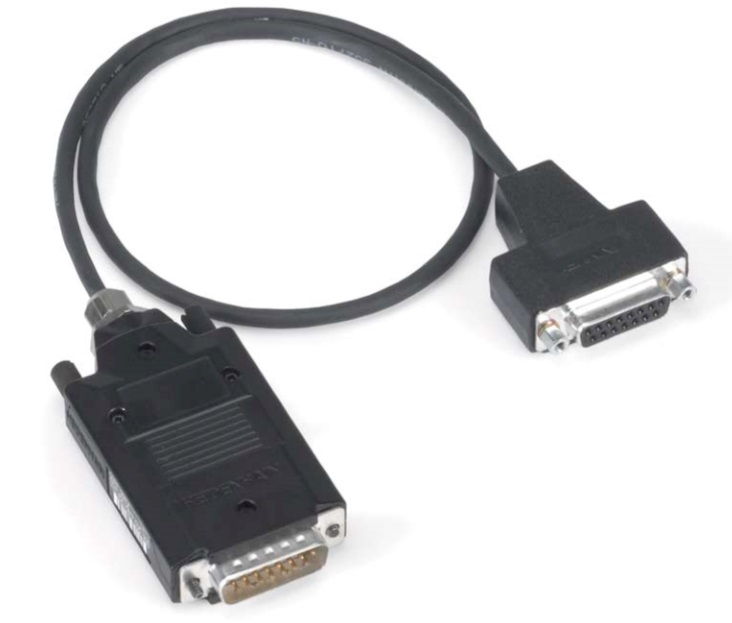

Heidenhain: Interface Electronics ID 591765-34 (APE 371)

Interface electronics from HEIDENHAIN adapt the encoder signals to the interface of the subsequent electronics. They are used when the subsequent electronics cannot directly process the output signals from HEIDENHAIN encoders, or if additional interpolation of the signals is necessary.


Features:

  • Interpolation and Digitizing Electronics

  • Interpolation up to 100-fold

  • Adapter cable design with electronics in D-sub connector

ID591765-34
Part NameAPE 371 TTLx50 100.00 RV OT MI 01 2.00 51B15 93S015 D
StatusS D4

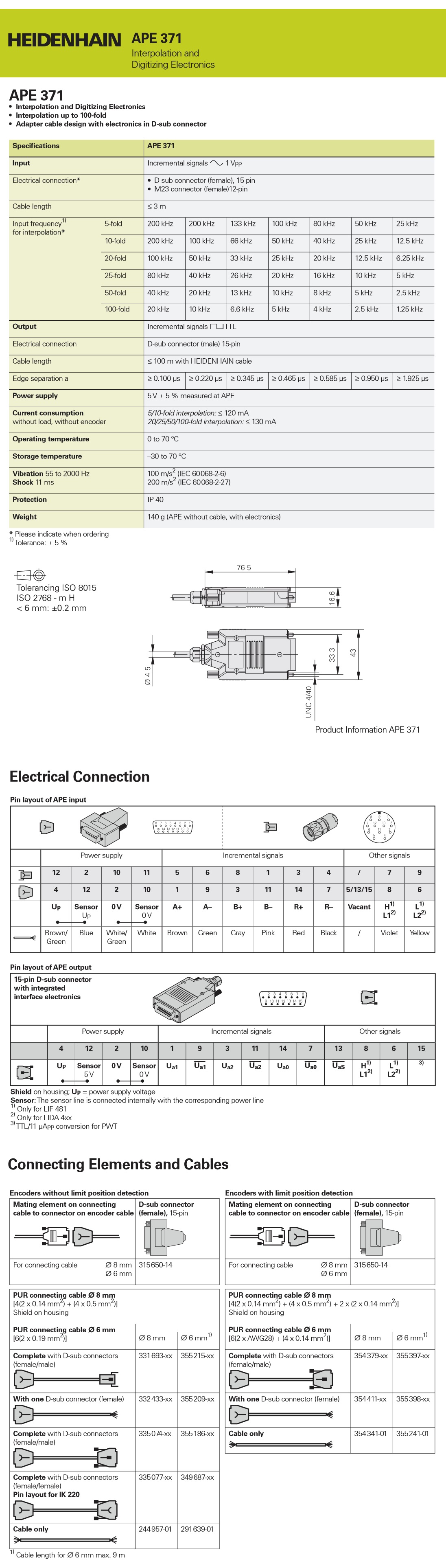

Description
APE 371
Interpolation and digitizing electronics; for
encoders with 1-VPP signals
Input signal:             sinusoidal voltage
                          signals (1 Vpp)
Electrical connection:    D-sub connector, 2-row,
                          without locking screws,
                          female, 15-pin
Output signal:            Square-wave signals, TTL
                          levels with 50-fold
                          interpolation
Electrical connection 2:  D-sub connector, 2-row,
                          with locking screws,
                          with integrated
                          electronics, coated,
                          male, 15-pin
Max. scanning frequency:  100.00 kHz
Reference mark:           90°
Fault detection signal:   for disturbance LOW
Reversal hysteresis:      with
Power supply:             5 V (+-5 %)
Limit switch:             led through
Cable type:               PUR Ø 4.5 mm
Cable length:             2.00 m
Pin configuration:        D348100
Pin configuration 2:      D350261
Protection rating:        IP40 (EN60529)
Operating temperature:    0/+70 °C
Special characteristics,
interface electronics:    none
