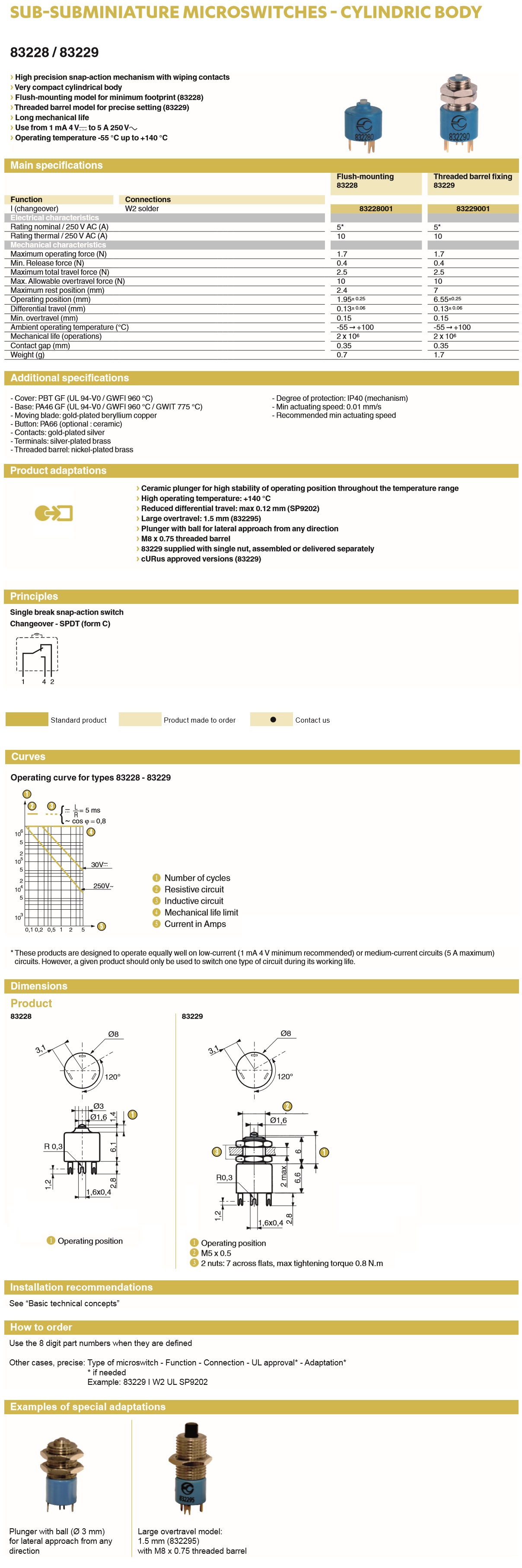

Crouzet: Sub-Subminiature Microswitches (83228/83229 Series)
With over 60 years’ experience in snap-action technology, Crouzet Switches offers a complete range of Microswitches for the highly demanding markets. The extensive choice consists of standard or customized Sub-subminiature, Subminiature, Miniature and Special microswitches, all conform to the most rigorous quality standards.
Our microswitches are characterized by a large range of switching ratings from 1 mA to 25 A, magnetic blowout versions for High DC ratings, sealed models, positive break versions, a wide range of operating temperatures, models for explosive atmospheres, long service life and wide variety of actuators, contact materials and fixing means.
Sub-Subminiature Microswitches – Cylindric Adjustable
High precision snap-action mechanism with wiping contacts
Very compact cylindrical body
Flush-mounting model for minimum footprint (83228)
Threaded barrel model for precise setting (83229)
Long mechanical life
Cover: PBT GF (UL 94-V0 / GWFI 960 °C)
Base: PA46 GF (UL 94-V0 / GWFI 960 °C / GWIT 775 °C)
Moving blade: gold-plated beryllium copper
Button: PA66 (optional : ceramic)
Contacts: gold-plated silver
Terminals: silver-plated brass
Threaded barrel: nickel-plated brass
Degree of protection: IP40 (mechanism)
Min actuating speed: 0.01 mm/s
Recommended min actuating speed
Specifications
Approx body size (mm): Ø8×8
Rating (max): 5A / 250Vac
Degree of protection: IP40
Operating temperature: -55°C / +140°C
Operating force (max): 1.7 N
Differential travel (max): 0.12 mm; 0.19 mm
Overtravel (min): 0.15 mm
Mechanical life (cycles): 2 M
