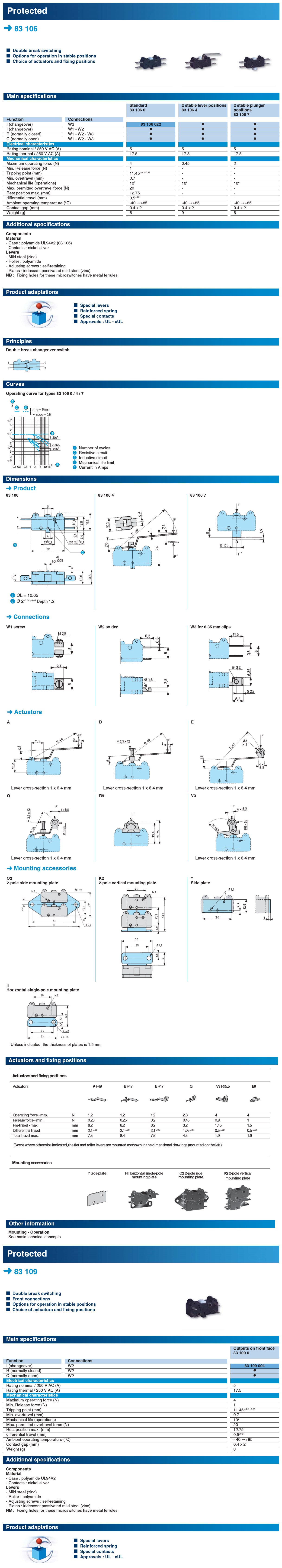

Crouzet: Special Microswitches (83106/83109/83111/83112 Series)
With over 60 years’ experience in snap-action technology, Crouzet Switches offers a complete range of Microswitches for the highly demanding markets. The extensive choice consists of standard or customized Sub-subminiature, Subminiature, Miniature and Special microswitches, all conform to the most rigorous quality standards.
Our microswitches are characterized by a large range of switching ratings from 1 mA to 25 A, magnetic blowout versions for High DC ratings, sealed models, positive break versions, a wide range of operating temperatures, models for explosive atmospheres, long service life and wide variety of actuators, contact materials and fixing means.
Special Microswitches – Double Break (maintained action optional)
(83106 Series)
Double break switching
Options for operation in stable positions
Choice of actuators and fixing positions
(83109 Series)
Front connections
(83111 Series)
Rear-fixing via nut or clips
(83112 Series)
Flush-mounted connections
Specifications
Approx body size (mm): 32x19x13
Rating (max): 16A / 250Vac
Degree of protection: IP40
Operating temperature: -40°C/+125°C
Operating force (max): 0.45N → 7.5N
Differential travel (max): 0.7 mm
Overtravel (min): 0.7 mm
Mechanical life (cycles): 10 M
