Crouzet: Subminiature Microswitches (83151 Series)
With over 60 years’ experience in snap-action technology, Crouzet Switches offers a complete range of Microswitches for the highly demanding markets. The extensive choice consists of standard or customized Sub-subminiature, Subminiature, Miniature and Special microswitches, all conform to the most rigorous quality standards.
Our microswitches are characterized by a large range of switching ratings from 1 mA to 25 A, magnetic blowout versions for High DC ratings, sealed models, positive break versions, a wide range of operating temperatures, models for explosive atmospheres, long service life and wide variety of actuators, contact materials and fixing means.

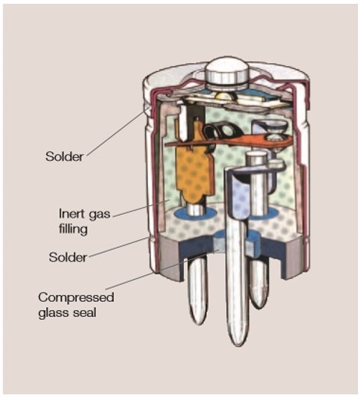

Subminiature Microswitches – Hermetic Inox Housing
Switching power from 1 mA to 7 A
Vibration resistant up to 80 G
Shock resistant up to 200 G
High level of hermetic sealing
Long life: 200 000 cycles
Numerous single pole and multipoles operating and fixing option
Specifications
Approx body size (mm): Ø11×15
Rating (max): 5A/250Vac
Degree of protection: Hermetic 10-3Pa.cm3/s
Operating temperature: -55°C/+250°C
Operating force (max): 5 –> 47N
Differential travel (max): 0.05 mm
Overtravel (min): 0.08 mm
Mechanical life (cycles): 0.2 M
