Crouzet: Special Microswitches (83123 Series)
With over 60 years’ experience in snap-action technology, Crouzet Switches offers a complete range of Microswitches for the highly demanding markets. The extensive choice consists of standard or customized Sub-subminiature, Subminiature, Miniature and Special microswitches, all conform to the most rigorous quality standards.
Our microswitches are characterized by a large range of switching ratings from 1 mA to 25 A, magnetic blowout versions for High DC ratings, sealed models, positive break versions, a wide range of operating temperatures, models for explosive atmospheres, long service life and wide variety of actuators, contact materials and fixing means.

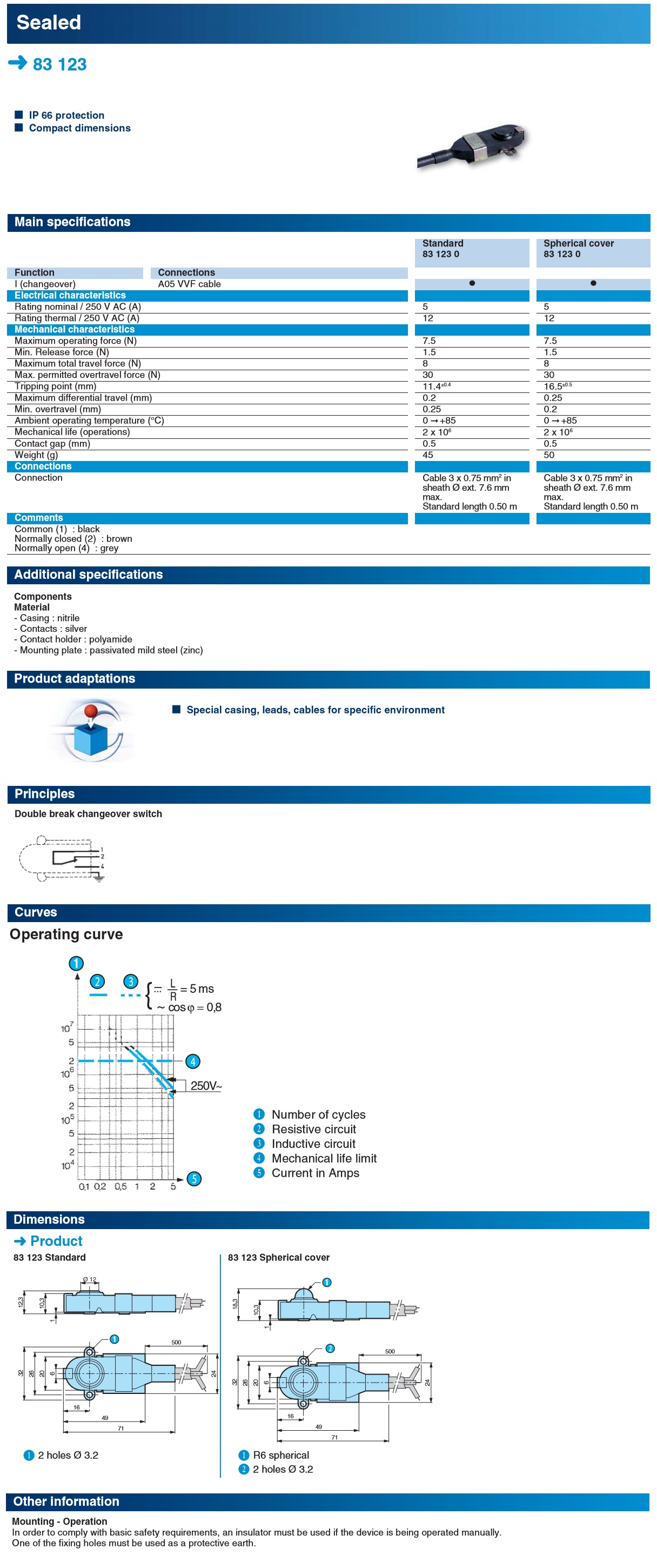

Special Microswitches – Sealed Rubber Housing Flat Pack
IP66 Protection
Compact Dimensions
Specifications
Approx body size (mm): 49x10x20
Rating (max): 10A / 250Vac
Degree of protection: IP66/IP67/IP69
Operating temperature: -40°C/+85°C
Operating force (max): 7.5 N
Differential travel (max): 0.2 mm
Overtravel (min): 0.25 mm
Mechanical life (cycles): 2 M
