Faulhaber: Planetary Gearheads (38/2 Series)
Faulhaber: Planetary Gearheads (38/2 Series)

Alternate View
Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: 38-2


Model No.:

.

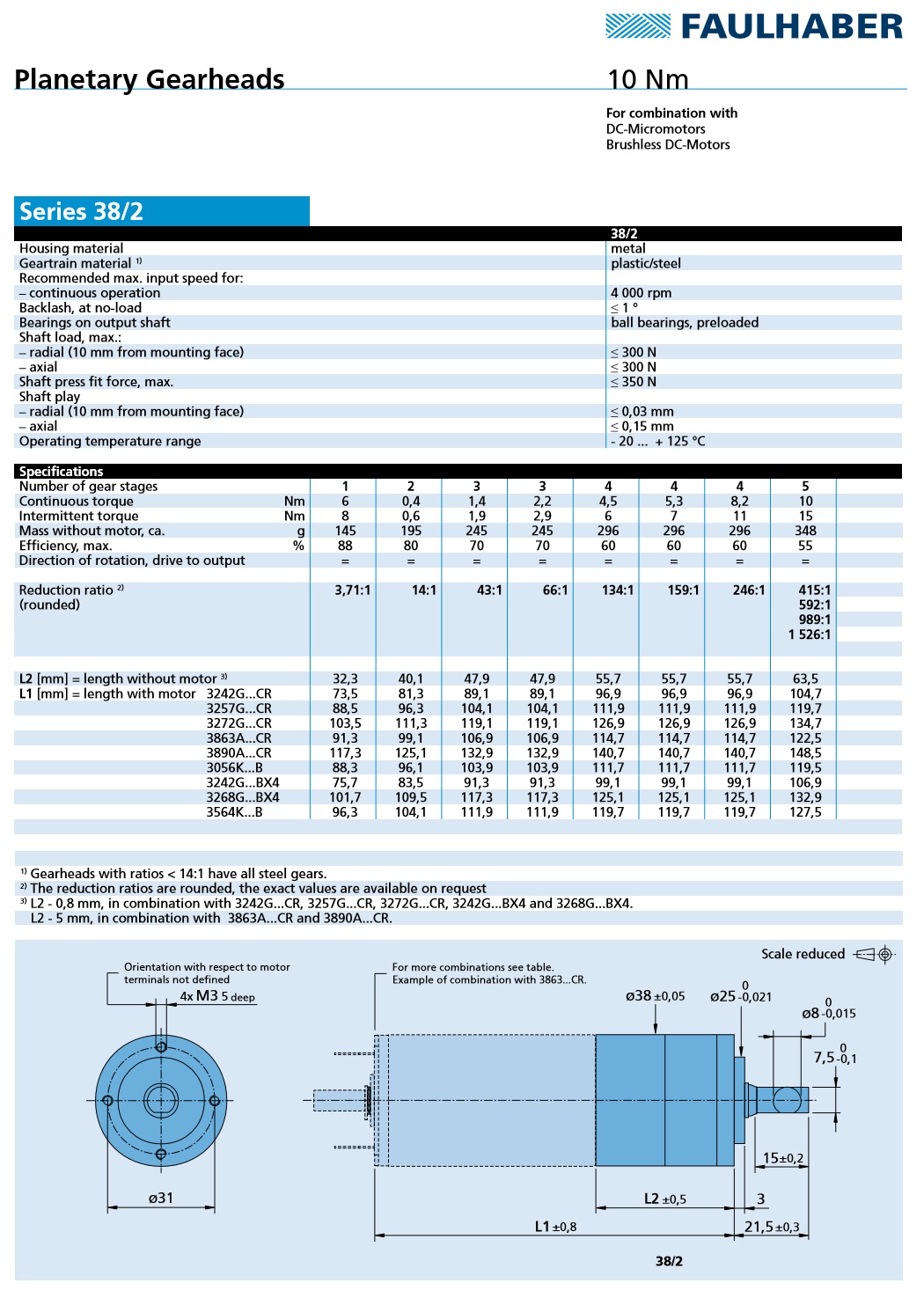

Description Specifications and Drawings

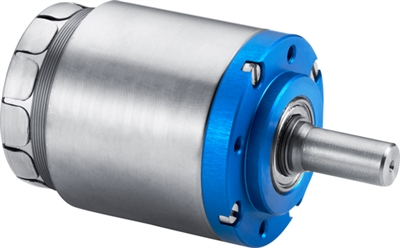

Faulhaber: Planetary Gearheads (38/2 Series)

Planetary Gearheads

Their robust construction make the planetary gearheads, in combination with FAULHABER DC-Micromotors, ideal for high torque, high performance applications.

For applications requiring medium to high torque FAULHABER offers planetary gearheads constructed of high performance plastics.

Features and Benefits:

  • Available in all plastic or metal versions

  • Available with a variety of shaft bearings including sintered, ceramic, and ball bearings

  • Modified versions for extended temperature and special environmental conditions are available

Specifications:

  • Diameter (mm): 38

  • Standard Ratios (from...to): 3.71:1 ... 1,526:1

  • Torque cont. duty (mNm): 10,000

  • Intermittent duty Torque (mNm):15,000

Model No.: 38/2 3,71:1, 38/2 14:1, 38/2 43:1, 38/2 66:1, 38/2 134:1, 38/2 159:1, 38/2 246:1, 38/2 415:1, 38/2 592:1, 38/2 989:1, 38/2 1526:1
