SIKO: Wire-actuated Encoder (SGP/1 Series) SGP/1-0180
SIKO: Wire-actuated Encoder (SGP/1 Series) SGP/1-0180



Price: (Members Only)


Availability: 7-9 weeks
Order #: SGP-1-0180
Qty:

Description Ordering Information Specifications and Drawings

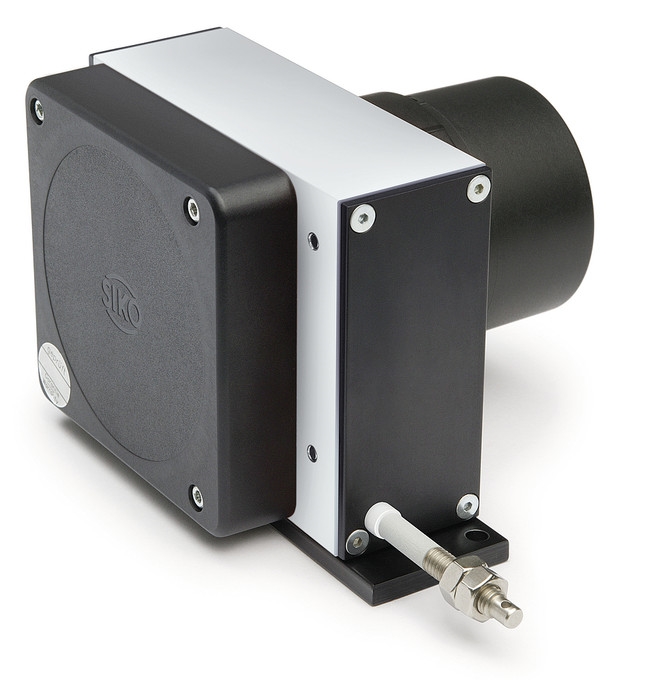

SIKO: Wire-actuated Encoder (SGP/1 Series) SGP/1-0180

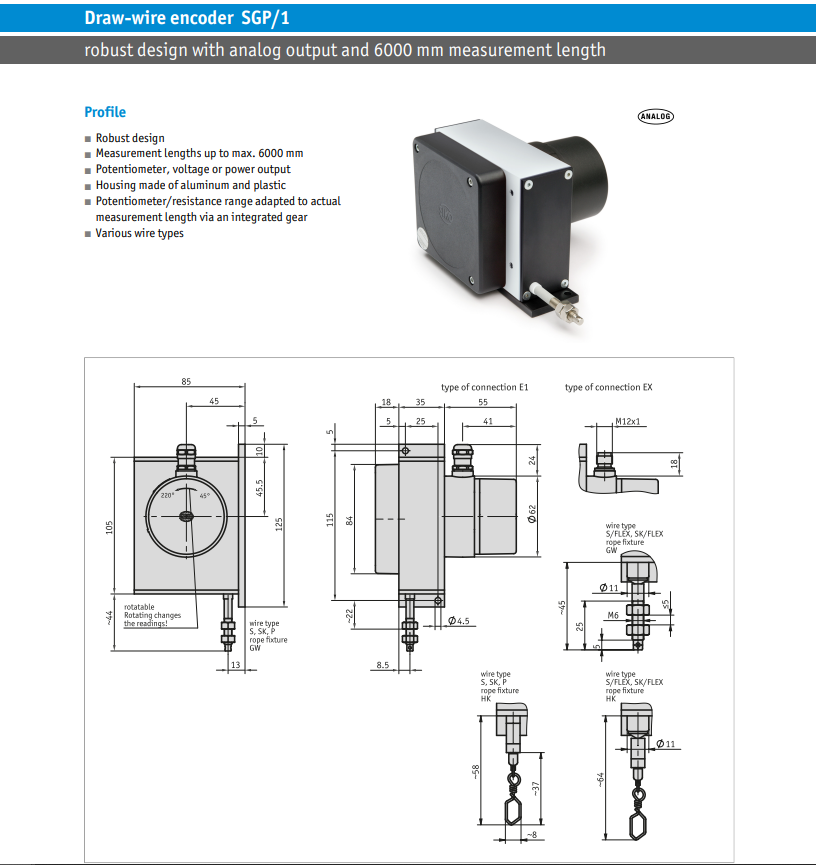

Robust design with analog output and 6000 mm measurement length

Wire-actuated encoder with analog output, potentiometric, current source or voltage output, with a measuring length of up to 6000 mm. Easy adjustment of the output signal to the actual measuring length via an integrated gear mechanism.

Profile SGP/1:

  • Robust design

  • Measurement lengths up to max. 6000 mm

  • Potentiometer, voltage or power output

  • Housing made of aluminum and plastic

  • Potentiometer/resistance range adapted to actual measurement length via an integrated gear

  • Various wire types
