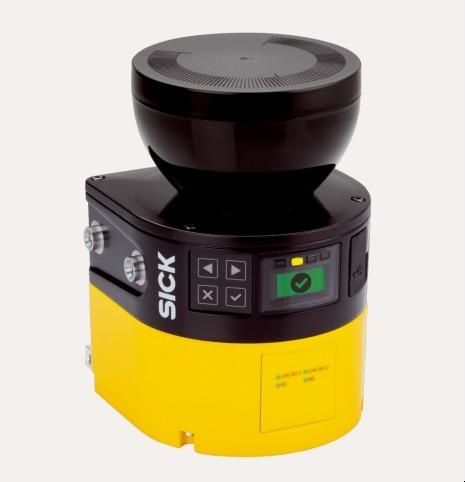

SICK: Safety Laser Scanner MICS3-CCAZ40AN1P01
SICK: Safety Laser Scanner MICS3-CCAZ40AN1P01 (Part No. 1133818)


Price: (Members Only)


Availability: 2-4 weeks
Order #: 1133818
Qty:

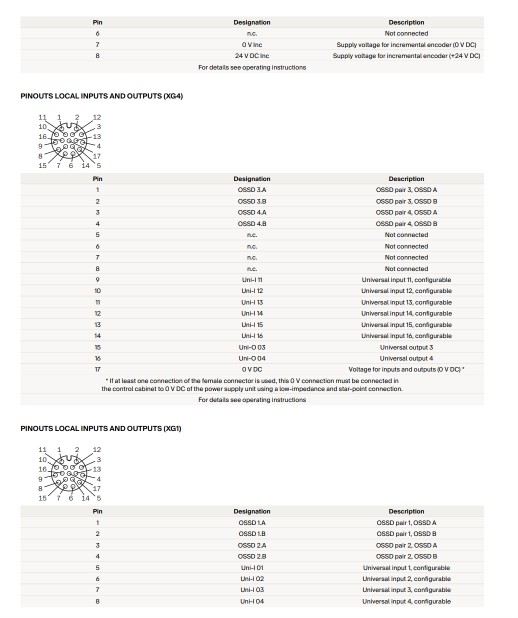

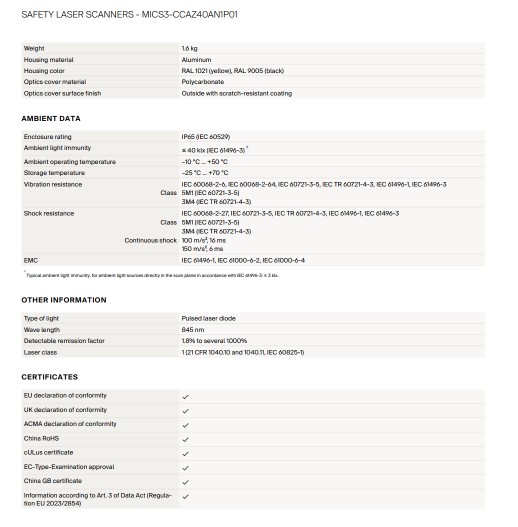

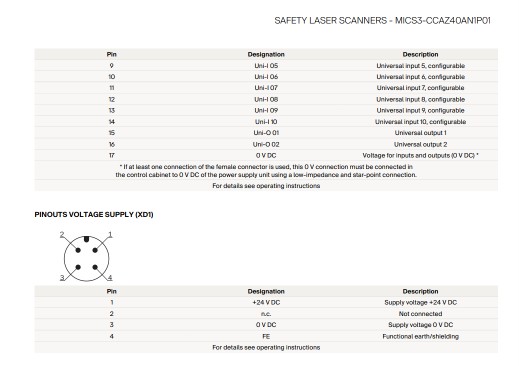

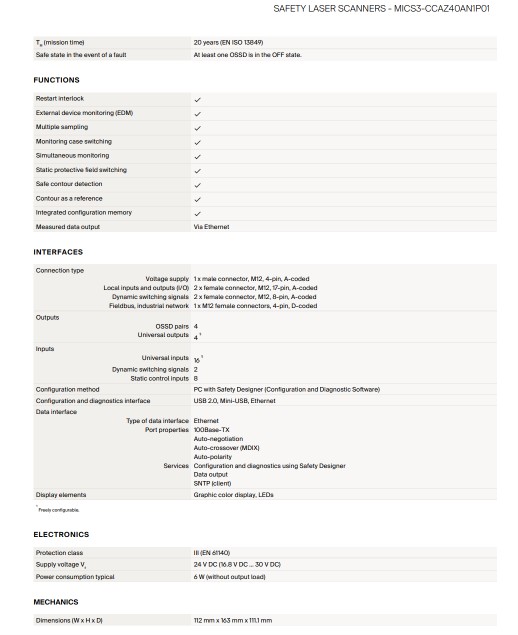

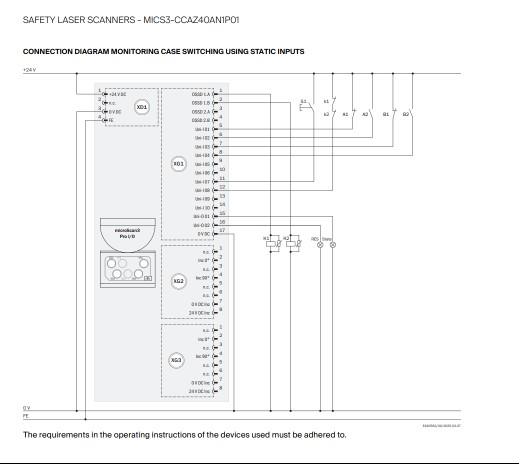

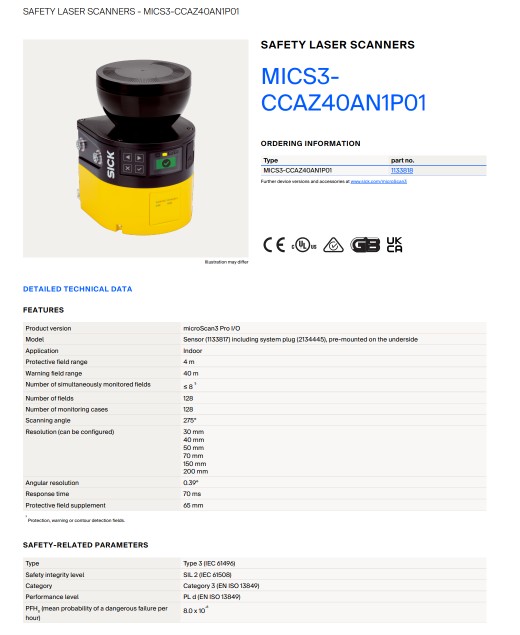

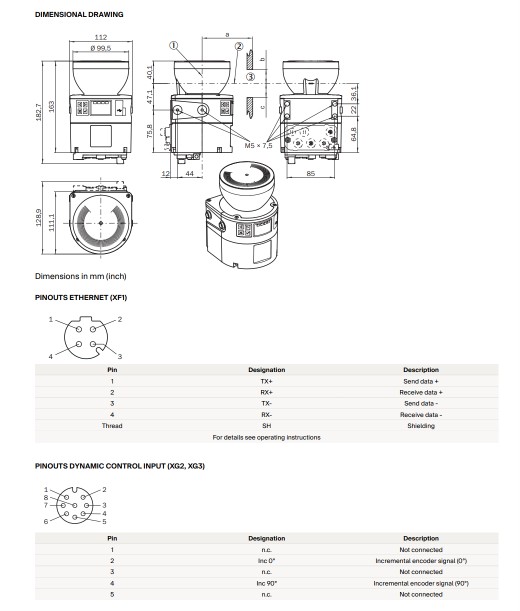

Description Specifications and Drawings

SICK: Safety Laser Scanner MICS3-CCAZ40AN1P01 (Part No. 1133818)
STAND ALONE UNIT

The MICS3-CCAZ40AN1P01 (Part No. 1133818) is designed for high-performance hazardous area protection and indoor machine safety.
Key Specifications
Protective Field Range: Up to 4 meters
Warning Field Range: Up to 40 meters
Scanning Angle: 275° for comprehensive coverage
Field Sets: Monitors up to 8 protective fields simultaneously (with up to 128 monitoring cases)

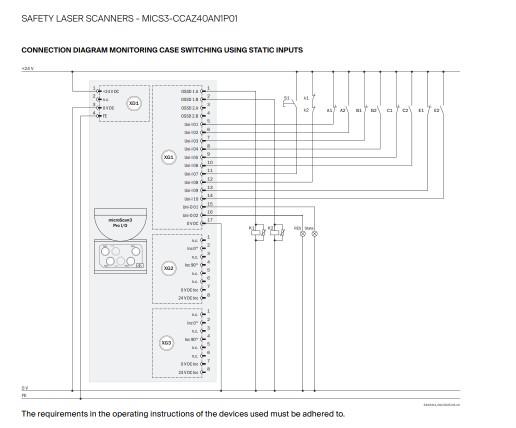

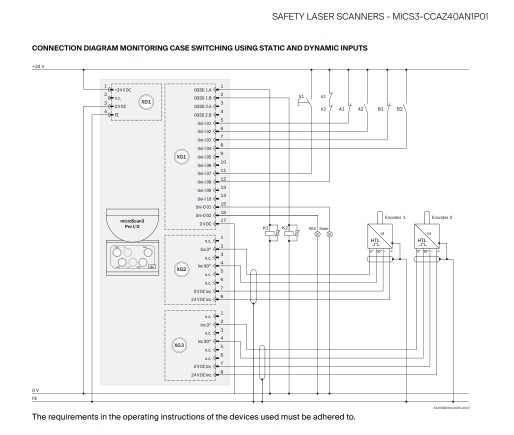

Electrical Connection: Pre-mounted system plug on the underside (supports underside or rear mounting)
