RSF Elektronik: Sealed Linear Encoders MSA 570.63 (ID: 1038326-03)

Sealed linear encoders are particularly predestined for applications in automation and production technology. They are ideally suited for metrology, printing and robotics, especially in applications where protection for the scale and reading head is required. RSF Linear Encoders are designed for CNC machine closed loop positioning feedback. Digital Readouts are also available for manually operated machines.

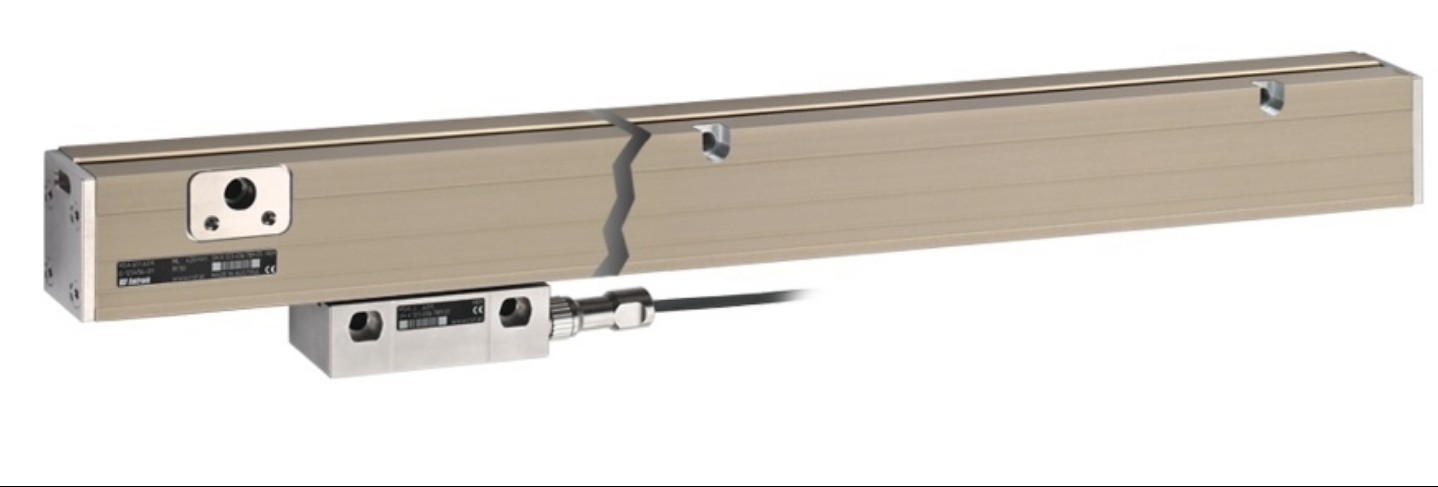

The RSF Elektronik MSA 570.63 (part of the RSF MSA 5xx Series) is a sealed, high-precision incremental linear encoder designed for harsh industrial environments. It features optical scanning, a detachable connecting cable, and an aluminum housing with sealing lips to protect against coolants, lubricants, and debris . These devices are high-precision measuring instruments used on industrial machinery like milling machines, lathes, and automation setups.

Key Technical Details

• Device Type: Sealed incremental linear encoder.
• Series: Part of the MSA 5xx family, featuring a large cross-sectional aluminum housing profile to protect the glass scale from dust, chips, and coolant splash.
• Wiring Setup: The .63 suffix typically denotes a specific electrical output signal variant, connector style (often a 12-pin or 15-pin layout), and integrated cable configurations.
• Cable Feature: Unlike the MSA 4xx or 7xx series which have fixed cables, the MSA 570 uses a detachable connecting cable.
