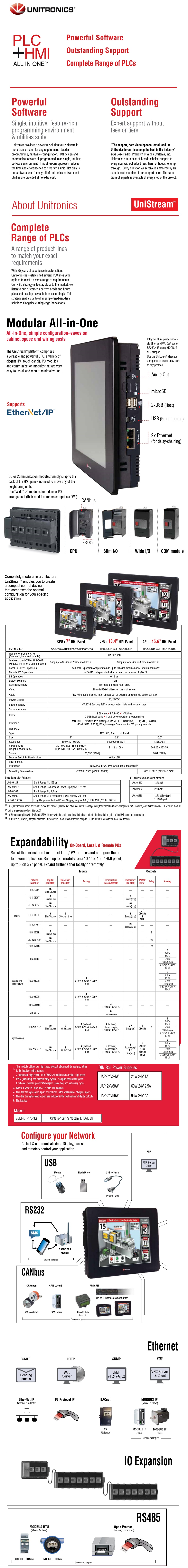

Unitronics: CPU + HMI Panel (UniStream® Series)

For High-End Machines & Automation Projects

Powerful PLC with incredible HMI features and a built-in webserver. Completely modular and scalable hardware — backed by the most efficient programming software you have ever used. Execute high-end projects — on time and within budget.


UniLogic
® - UniStream® Software

All-in-One programming environment. Slash your development time by 50%.


UniStream
® Hardware - Uniquely Modular

Tailor UniStream™ to suit your precise application. Select your HMI panel, snap on a CPU, and I/O to create a compact All-in-One controller.

  • Powerful CPUs—faster scan time, up to 2048 I/Os, and over 2MB of operand memory.

  • High-quality HMI touch panels + an easy-to-use HMI editor for elegant screen design.

  • COM ports: Ethernet, CANbus, USB host & device, Audio Out, add RS232/RS485 ports via COM modules

  • Sophisticated, space-saving I/O—effortless local and remote I/O installation.


Award-winning features - a true multi-purpose controller

  • Built-in Trends and Gauges, auto-tuned PID, data tables, data sampling, and Recipes

  • Media files: Video, Audio, pdf Viewer, embedded speakers

  • UniApps™ – Use the HMI to access & edit data, monitor, troubleshoot & debug and more

  • Security: Multi-level password protection

  • Alarms: Built-in system, ANSI/ISA standards


Communications
DataCom with any device:
CANopen, CAN Layer2, MODBUS, EtherNetIP, SNMP Agent/Trap, VNC Client, FTP Server/Client, Web Server, e-mail, SMS messaging, modems, GPRS/GSM, Remote Access via VNC. Implement any serial RS232/485, TCP/IP, or CANbus third-party protocols via Message Composer


PLC

  • Variety of I/O options including high- speed and temperature measurement

  • Auto-tune PID

  • Recipe programs and data logging via Data Tables & sampling

  • Micro SD card – log, backup, clone & more

  • Trends

  • Media files: Video, Audio and PDF viewer

  • UDFBs and Structs


HMI

  • Highly professional touchscreen

  • Multi Language

  • Built-in image library

  • UniApps


Communication

  • Ethernet IP

  • Web server

  • Send e-mail function

  • SMS messaging

  • GPRS/GSM enabled

  • Ethernet via TCP/IP

  • Remote Access via VNC

  • MODBUS configurator

  • Message composer

  • CANopen, UniCAN, and more

  • BACnet and M-Bus via gateway

  • NEW – supports Ethernet IP

  • Ports: Ethernet, CANbus, USB host & device Audio, Communication models RS232/RS485


I/O

I/O options include digital, analog, high-speed, temperature & weight measurement. See table below:

  • Uni-I/O™ Modules


Model No.:

  • CPU + 7” HMI Panel: USC-P-B10 and USP-070-B08/ USP-070-B10

  • CPU + 10.4” HMI Panel: USC-P-B10 and USP-104-B10

  • CPU + 15.6” HMI Panel: USC-P-B10 and USP-156-B10
