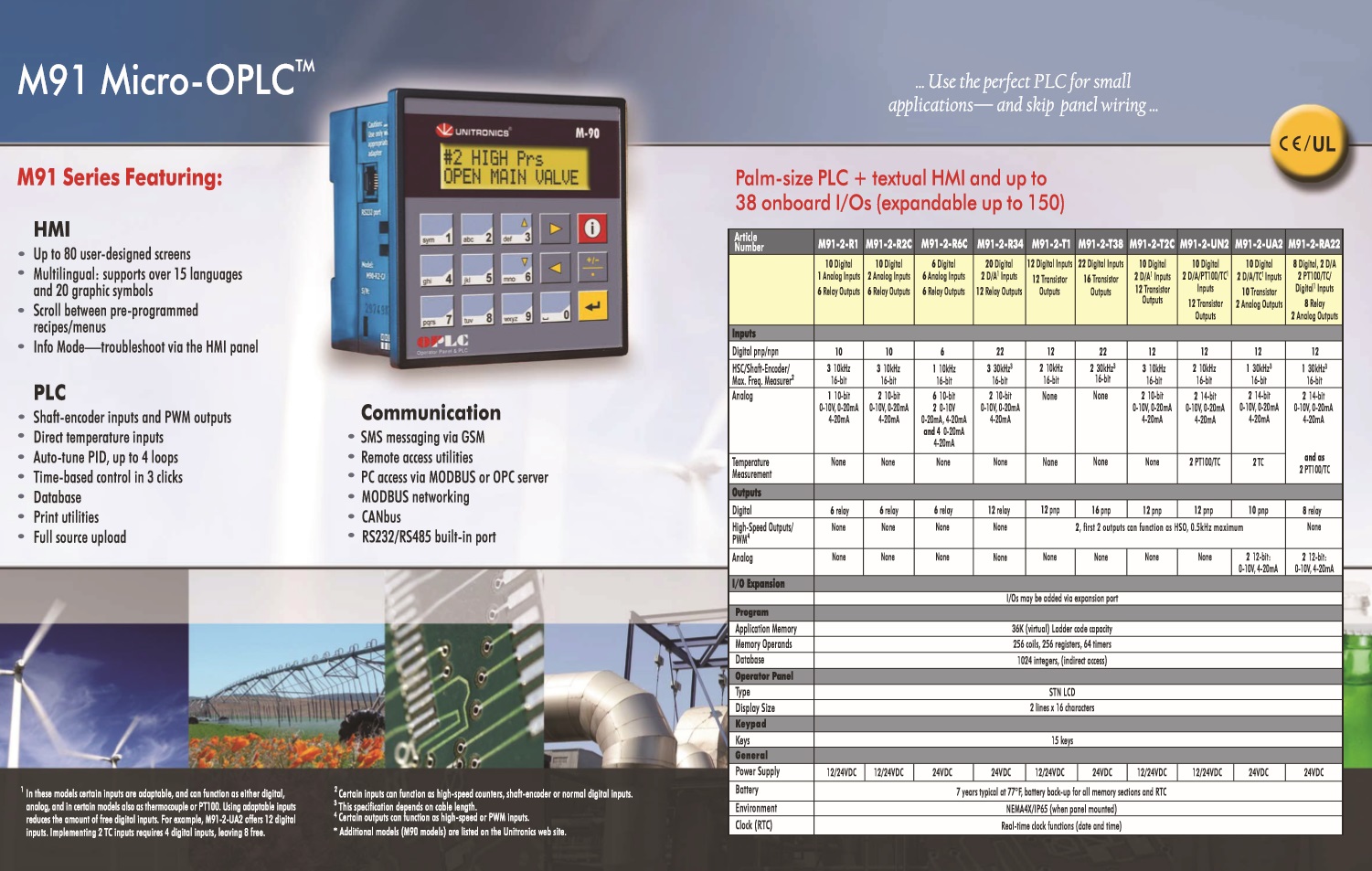

Unitronics: PLC+HMI (M91™ Series) An affordable All-in-One controller: a smart PLC with a textual HMI and keyboard, plus onboard I/O configurations; expands up to 150 I/Os. The M90/M91™ is an innovative micro-PLC (Programmable Logic Controller) with a built-in operating panel. The operating panel offers an LCD that can display two 16-character text lines, and a keypad (one line in the M90 models). The M90/M91™ series offers a variety of onboard I/O configurations, including direct temperature and weight measurement inputs; the configuration can be expanded by adding I/O Expansion Modules. The M90/M91™ is the perfect control solution for small-to-medium applications such as water treatment, automated machines, and process control.
Our PLC/HMI integrated devices: Save our customers’ programming time, wiring, and cabinet space Cut budget by reducing requirements for additional hardware Prevent you from wasting time setting up Panel-PLC communication
10 Digital Inputs including 3 Inputs which can function as either high-speed counters, shaft encoders, frequency measurers or as normal digital inputs 1 Analog Input 6 Relay Outputs 2 Lines x 16 characters, STN LCD, LED backlight HMI Displays RS232 Communication Port MODbus GSM support - enables SMS messages 12/24 VDC power supply
2 Digital Inputs including: I) 3 Inputs, which can function as either high-speed counters, shaft encoders, frequency measurers or as normal digital inputs. II) 2 Inputs, which can function as either Analog Inputs for Voltage or Current, or as normal digital inputs. 12 Relay Outputs separated into 3 groups 2 Lines x 16 characters, STN LCD, LED backlight HMI Displays RS232/RS485 Communication Port MODbus GSM support - enables SMS messages 24 VDC power supply
10 Digital Inputs including 3 Inputs which can function as either high-speed counters, shaft encoders, frequency measurers or as normal digital inputs 2 Analog Input 6 Relay Outputs 2 Lines x 16 characters, STN LCD, LED backlight HMI Displays RS232 Communication Port CANbus MODbus GSM support - enables SMS messages 12/24 VDC power supply
6 Digital Inputs including 1 Input which can function as either high-speed counter, shaft encoder, frequency measurer or as normal digital input 6 Analog Input 6 Relay Outputs 2 Lines x 16 characters, STN LCD, LED backlight HMI Displays RS232 Communication Port CANbus MODbus GSM support - enables SMS messages 24 VDC power supply
12 Digital Inputs including 3 inputs which can function as either high-speed counters, shaft encoders, frequency measurers or as normal digital inputs 2 Analog Inputs 12 Transistor Outputs 2 First Outputs can function as PWM 2 Lines x 16 characters, STN LCD, LED backlight HMI Displays 1 RS232 Communication Port CANbus MODbus GSM support - enables SMS messages 12/24 VDC power supply
12 Digital Inputs including 2 Inputs which can function as either high-speed counters, shaft encoders, frequency measurers or as normal digital inputs 12 Transistor Outputs First 2 outputs can function as PWM 2 Lines x 16 characters, STN LCD, LED backlight HMI Displays RS232 Communication Port MODbus GSM support - enables SMS messages 12/24 VDC power supply
22 Digital Inputs including 2 Inputs which can function as either high-speed counters, shaft encoders, frequency measurers or as normal digital inputs 16 Transistor Outputs First 2 outputs can function as PWM 2 Lines x 16 characters, STN LCD, LED backlight HMI Displays RS232 Communication Port MODbus GSM support - enables SMS messages 24 VDC power supply
12 Digital Inputs including 1 Inputs which can function as either high-speed counter, shaft encoder, frequency measurer or as normal digital input 2 Analog inputs - can be used as thermocouple inputs 10 Transistor Outputs First 2 outputs can function as PWM 2 Analog Outputs 2 Lines x 16 characters, STN LCD, LED backlight HMI Displays RS232 Communication Port MODbus GSM support - enables SMS messages 24 VDC power supply
12 Digital Inputs including 2 Inputs which can function as either high-speed counters, shaft encoders, frequency measurers or as normal digital inputs 2 Analog inputs - can be used as thermocouple or PT100 inputs 12 Transistor Outputs First 2 outputs can function as PWM 2 Lines x 16 characters, STN LCD, LED backlight HMI Displays RS232 Communication Port MODbus GSM support - enables SMS messages 12/24 VDC power supply
12 Digital Inputs including 1 Input which can function as either high-speed counter, shaft encoder, frequency measurer or as normal digital input 2 Analog inputs - can be used as thermocouple or PT100 inputs 8 Relay Outputs 2 Lines x 16 characters, STN LCD, LED backlight HMI Displays RS232 Communication Port MODbus GSM support - enables SMS messages 24 VDC power supply

|
|
|
 |
|
 |
|
