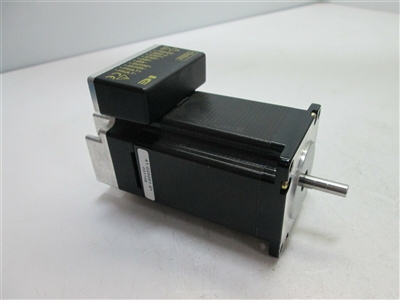

The Integral E combines a high-performance stepper motor with a microstepping drive in a single integrated package. This integrated design reduces the required panel space and eliminates the motor-to-drive cabling. Setup is quick and easy with the four DIP switches – no programming or RS232 communication required.

Integral E Features

• Industry standard step-and-direction inputs

• Industry standard NEMA 23 mounting

• Integrated drive eliminates panel space

• Eliminates motor-to-drive cable, lowering cost and increasing system reliability

• Quick and easy 4-DIP-switch setup – no communications required

• 24-48 VDC power input

• Auto current reduction

Anti-resonance circuitry

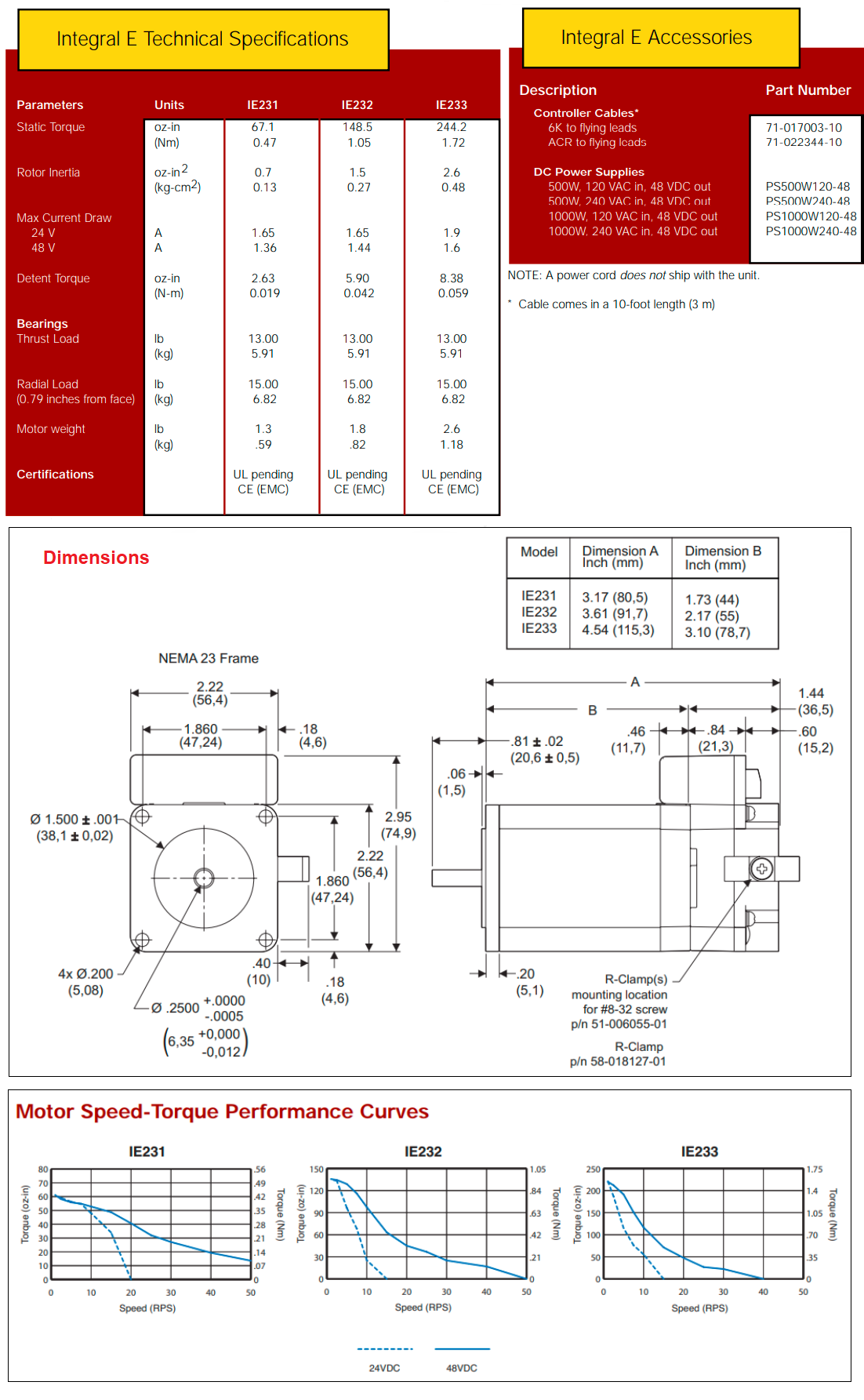

• Static torques from 67-244 oz-in.

• Speeds to 3000 RPM
