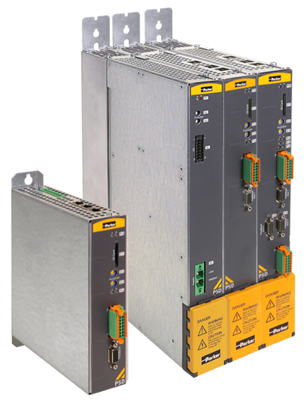

Parker: High Performance Servo Drive - PSD1-M(Multi axis) PSD1MW3433B1100000

Description:

The Parker Servo Drive family, or PSD1, combines the latest in high performance servo technology with features that provide unique value to OEMs and machine builders. Hiperface DSL feedback greatly reduces complexity with only one cable connection between drive and motor. A removable SD card enables rapid drive exchange and software updates. The PSD1-M is the most compact multi-axis servo system on the market and is available with modules as one, two or three axis versions.

Available with power ratings from 2 to 30 Amps, the series offers a choice of form factors. The PSD1-S is a standalone drive which can be connected directly to the AC line. The PSD1-M is a multi-axis servo system where each axis module can supply up to three servo motors. The base configuration consists of a common DC bus supply and multiple PSD1-M modules, connected through DC bus bars. The modules are available as one, two or three axis versions.

Overview

• Hiperface DSL ® feedback Reduced cabling; only one cable connection between drive & motor

• EtherNet/IP, EtherCAT, PROFINET communication

• Quick and simple wiring

• Removable SD card

• Same software functionality for standalone drive and multi-axis servo system

PSD1-S unique features

• Single or three phase power supply

• Compact housing

• Particularly suitable for small machines

PSD1-M unique features

• The most compact multi-axis servo system on the market

• One, two or three axis versions combined in one housing

• Common DC bus connection for energy exchange between drives

Applications include:

• Packaging machines

• Material forming machines

• Handling machines

• General automation
