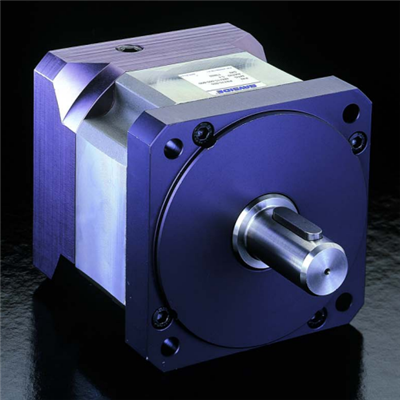

Parker Bayside: Gearhead (PX90-015 Series)
Parker Bayside: Generation II Stealth Gearhead (PX90-015 Series)


Price: (Members Only)


Availability: 8-10 weeks
Order #: PX90-015


Mounting Configuration:
Gearbox

Part Number*:

Qty:
Description Ordering Information Specifications and Drawings


Parker Bayside: Generation II Stealth Gearhead (PX90-015 Series)

High performance at an exceptional value makes STEALTH PX the gearhead of choice for today''s lower cost servo motor applications. Stealth PX delivers the best value with the advantages of helical planetary technology.


Features:

  • High Torque: More than standard planetaries.

  • Lowest Backlash: Less than 15 arcminutes (10 arcminute option)

  • Quietest operation: Less than 70db

  • High Input Speeds: Up to 5,000 RPM

  • High Efficiency: Over 90% efficiency.

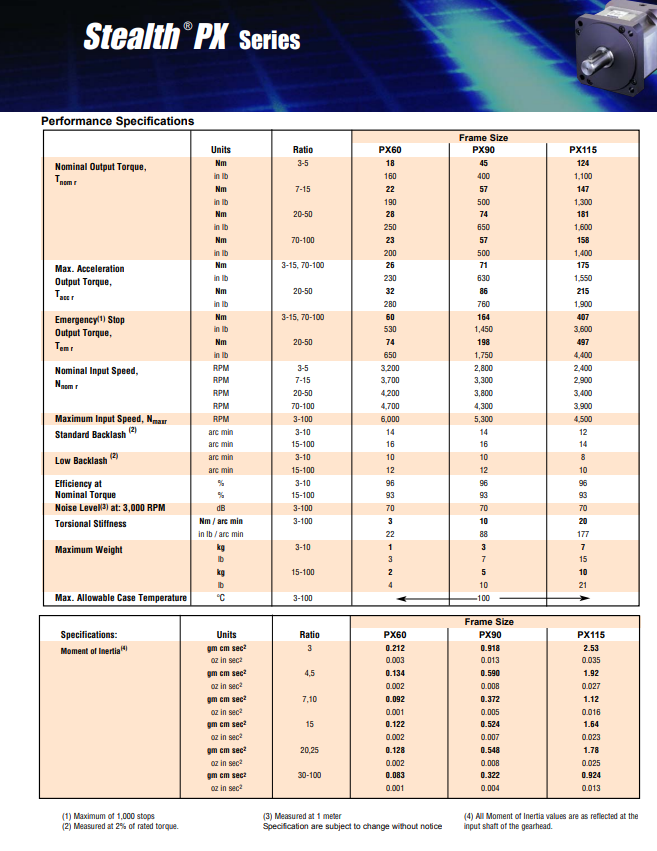

Specifications:

  • Configuration: In-line

  • Backlash: <8Arc/Minute

  • Frame Size: 90 mm

  • Gear Teeth: Helical Planetary

  • IP65

  • Noise: <70 db

  • Ratio: 15:1
