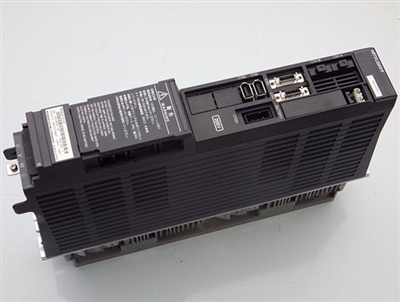

MITSUBISHI MDS-D-SP-40 CNC Spindle
drive unit 40A
MITSUBISHI
Electric MDS-D-SP-40(MDSDSP40 ) This is a MITSUBISHI Electric spindle drive
unit that permits a CNC Machine-tools drive a MITSUBISHI AC Spindle motor with
a max output capacity of kW ( rated output from the spindle drive unit).
MITSUBISHI
Electric MDS-D-SP-40
DC270-311V :
AC200-230V :
MITSUBISHI
Electric MDS-D-SP-40

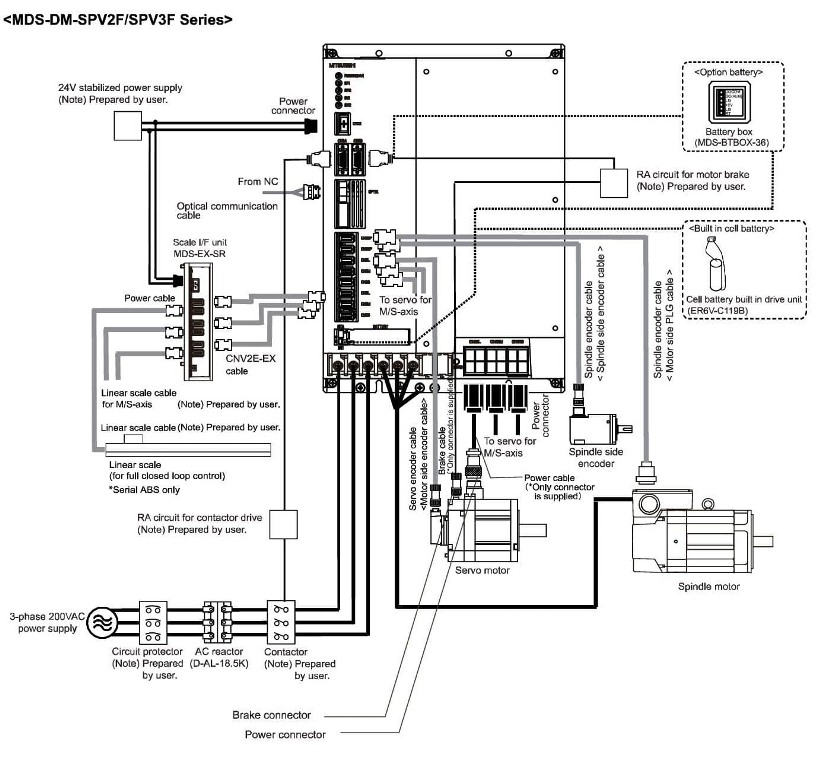

In systems
which use a MITSUBISHI Electric MDS-D-SP-40 Spindle drive unit, the spindle
drive unit must be placed next to the power supply as shown in the connection
manuals. Each units generates some heat, so leave a space on the top and bottom
when installing other equipment or parts. The heating value for the spindle
drive unit for during continuous rated output (190W).
MDS-D-SP-40 CNC
SPINDLE DRIVE UNIT 40A reference form MITSUBISHI ELECTRIC MDS-D-SP-40. This
MITSUBISHI ELECTRIC spindle drive MDS-D-SP-40 is ready to replace your spindle
drive and to be mounted on CNC machine tools such as transfer machines, milling
machines and turning machines. All the MDS-D-SP-40 have been tested by our
skilled technicians before shipment on dedicated test benches.
A spindle
drive unit that controls the high-speed synchronous tapping (OMR-DD control)
has to be connected on the farther side from the NC than the servo drive unit
that is subject to the synchronous tapping control
Spindle
drive unit has no battery voltage drop warning function. Wiring to CN9 of drive
unit must be always connected to servo drive unit.
