Heidenhain: Incremental sealed linear encoder 572249-06 (LS 487C series)

Heidenhain: Incremental Sealed Linear Encoder with small cross section #572249-06 (LS 487C series)

Price: (Members Only)

Availability: 14 weeks
Order #: 572249-06

Qty:

Description

Ordering Information

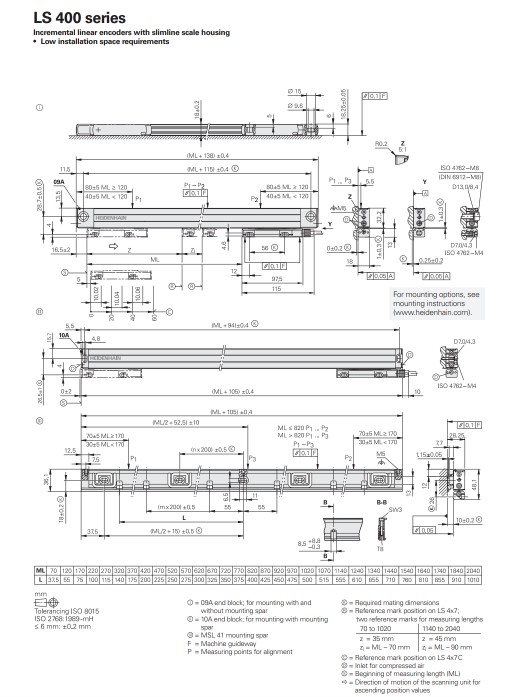

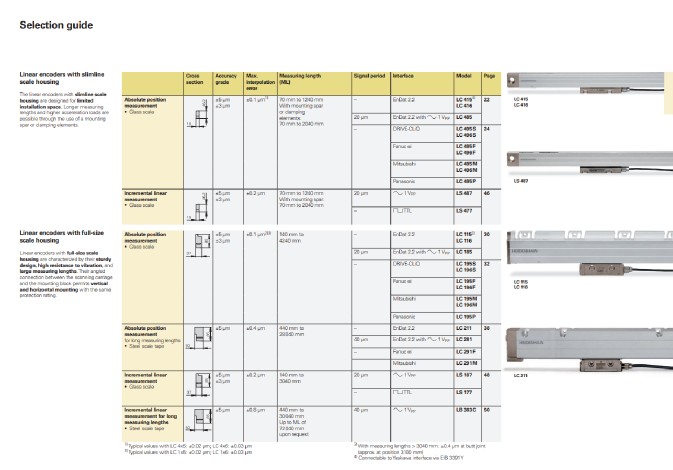

Specifications and Drawings

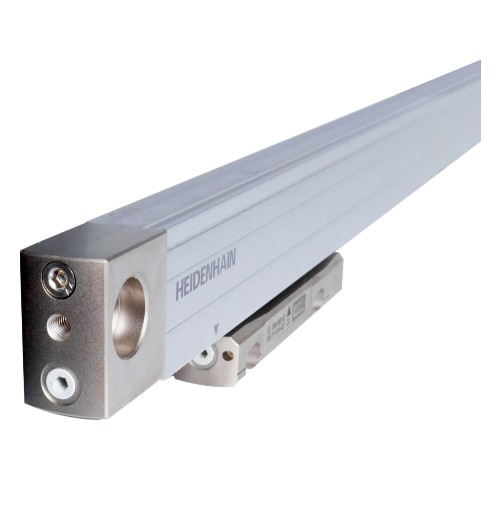

Heidenhain: Incremental Sealed Linear Encoder with small cross section #572249-06 (LS 487C series)

Incremental linear encoders with slimline scale housing

For linear axes up to 2040 mm long
Compact design for limited installation space
Particularly easy installation with mounting rail
Interfaces: 1 VPP and TTL

Features:
High contamination tolerance

A proven seal design optimally protects the LS 400 encoders from contamination. Their wide scanning field further reduces contamination sensitivity. Localized impurities on the measuring standard have very little influence on signal quality or measurement accuracy.

Easy installation
Linear encoders from HEIDENHAIN are very installer-friendly. As guided systems, they provide wide mounting tolerances for fast and easy installation.

Compact design
The LS 400 linear encoders deliver high accuracy and a rugged design with a small footprint. Their compact dimensions also make them ideal for very limited installation space.

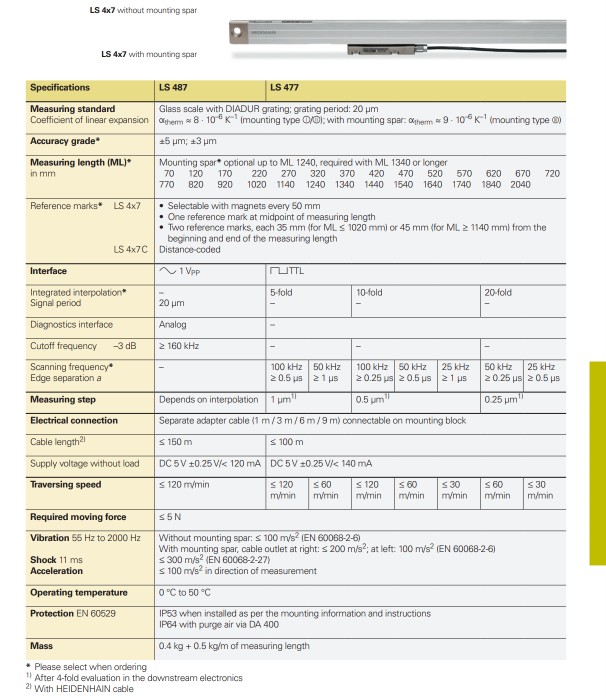

LS 487C (572249-06)
Incremental sealed linear encoder with small
cross section
Measuring length:       320 mm
Total length:           ML+105 mm
Accuracy grade:         ± 5.0 µm
Grating period:         20.000 µm
Fastening type:         End block + mounting spar
Output signal:          sinusoidal voltage signals
                        (1 Vpp)
Reference mark position:C001 - Distance-coded
                        reference marks with
                        nominal increment 1000 x
                        grating period
Further reference marks:none
Power supply:           5 V (+-5 %)
Electrical connection:  Flange socket, male,
                        14-pin
Special characteristics,
linear encoder:         none
