Heidenhain: Adapter cable for different connector connection ID# 1036549-01
Heidenhain: Adapter Cable for different connector connection ID# 1036549-01


Price: (Members Only)


Availability: 1-3 business days
Order #: 1036549-01
Qty:

Description Ordering Information Specifications and Drawings

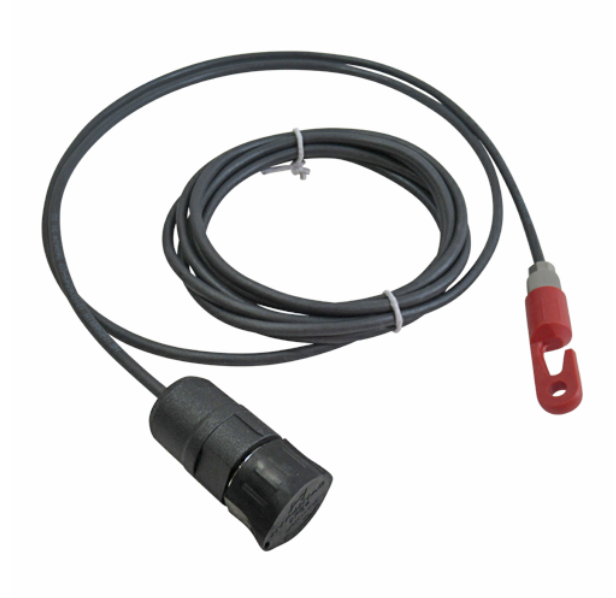

Heidenhain: Adapter Cable for different connector connection ID# 1036549-01


ID: 1036549-01

Adapter cable for different connector connection
Cable type:             PUR Ø 4.5 mm
Cable design:           1x4x0.09+4x0.16 or
                        4x2x0.14
Cable length:           1.00 m
Encoder side:           Coupling M12, 14-pin
Side of subsequent
electronic:             Coupling M23, male, 17-pin
