Faulhaber: Motion Controllers (MC 3001 P Series) MC 3001 P RS/CO
Faulhaber: Motion Controllers (MC 3001 P Series) MC 3001 P RS/CO with RS232 or CANopen interface

Alternate View

Price: (Members Only)


Order #: MC3001P
Qty:

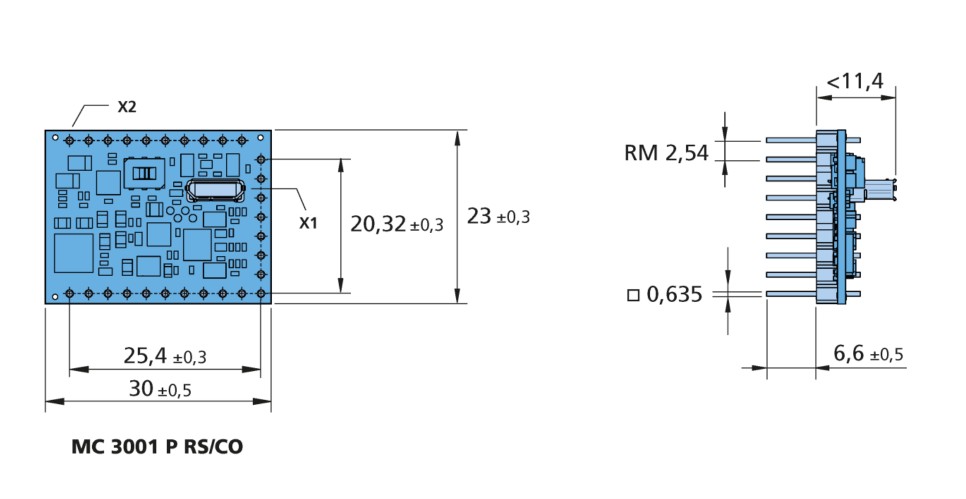

Description Specifications and Drawings


Faulhaber: Motion Controllers (MC 3001 P Series) MC 3001 P RS/CO

with RS232 or CANopen interface

FAULHABER Motion Controllers are easy to use single axis positioning controllers tailor made for the control of FAULHABER DC, Brushless, and linear motors.

For high resolution dynamic positioning applications, or high precision speed control applications they are available with serial or CAN interfaces and can be configured the free and easy to use Motion Manager software.

Features and Benefits:

  • Compact design
  • Controlled via RS232 or CANopen interface
  • Minimal wiring requirements
  • Parametrization with “FAULHABER Motion Manager“ software and USB interface
  • Wide range of accessories
  • Simple start-up

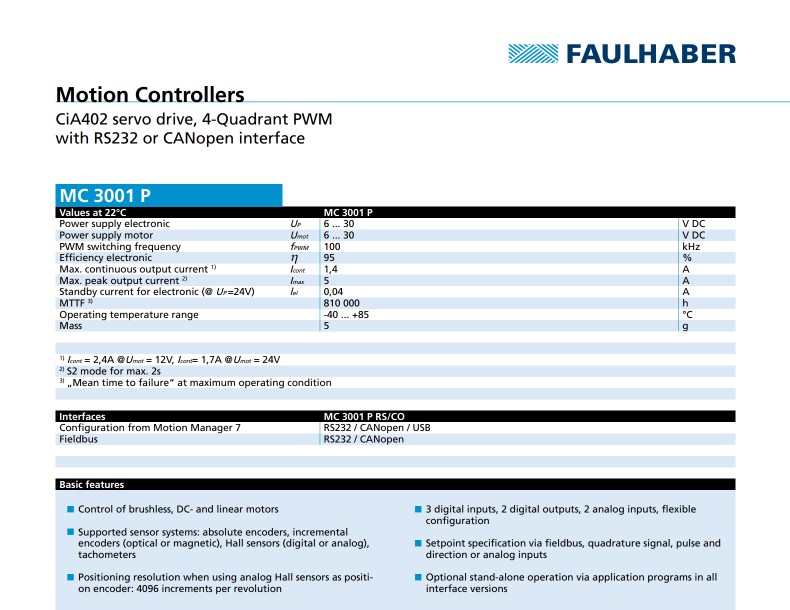

Specifications:

Product category:Motion Controllers
Supply voltage, min.:UP6 V DC
Supply voltage, max.:UP30 V DC
Power supply motor, min.:6 V DC
Power supply motor, max.:30 V DC
PWM switching frequency:f100 kHz
Efficiency electronic:η95 %
Max. continuous output current:Icont1.4 A
Max. peak output current:Imax5 A
Standby current for electronic:0.04 A
Operating temperature, min.:-40 °C
Operating temperature, max.:85 °C
Mass:5 g

Model No.: MC 3001 P RS/CO
