AMC: DigiFlex® Performance™ CANopen Drive Mounting Card MC1XDZC03-HP1

The MC1XDZC03-HP1 mounting card is designed to host a DZC or DZXC series DigiFlex® PerformanceTM digital servo drive. The drive plugs into the bottom side of the mounting card, providing a compact assembly with connectors and switches readily accessible. The MC1XDZC03-HP1 is ideal for prototyping and integrating a DZC or DZXC series digital servo drive in your machine.

The MC1XDZC03-HP1 utilizes side-entry right angle fixed screw terminals for the Motor and Power connectors. For vertical-entry quick-disconnect Motor and Power connections use the MC1XDZC03-QD mounting card.

The MC1XDZC03-HP1 is designed to host DZC and DZXC drive models with a 60 amp peak current rating (-060L080 models). Drives with a lower peak current rating may be used with the MC1XDZC03-HP1, although ADVANCED Motion Controls recommends the MC1XDZC03 or MC1XDZC03-QD for other drive models

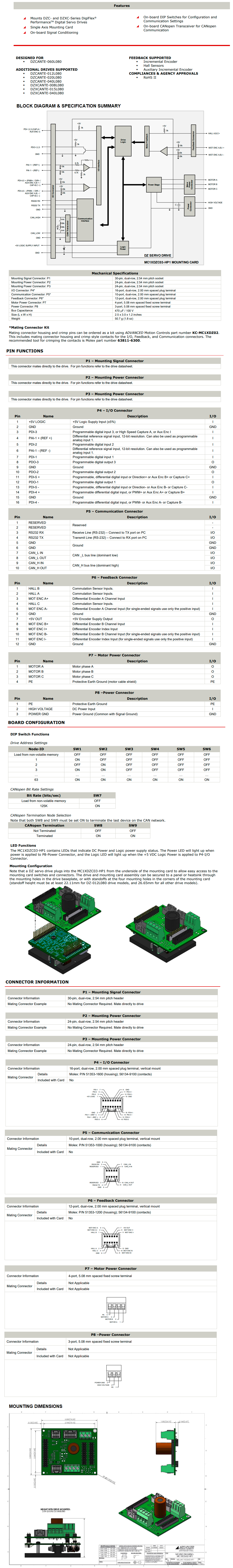

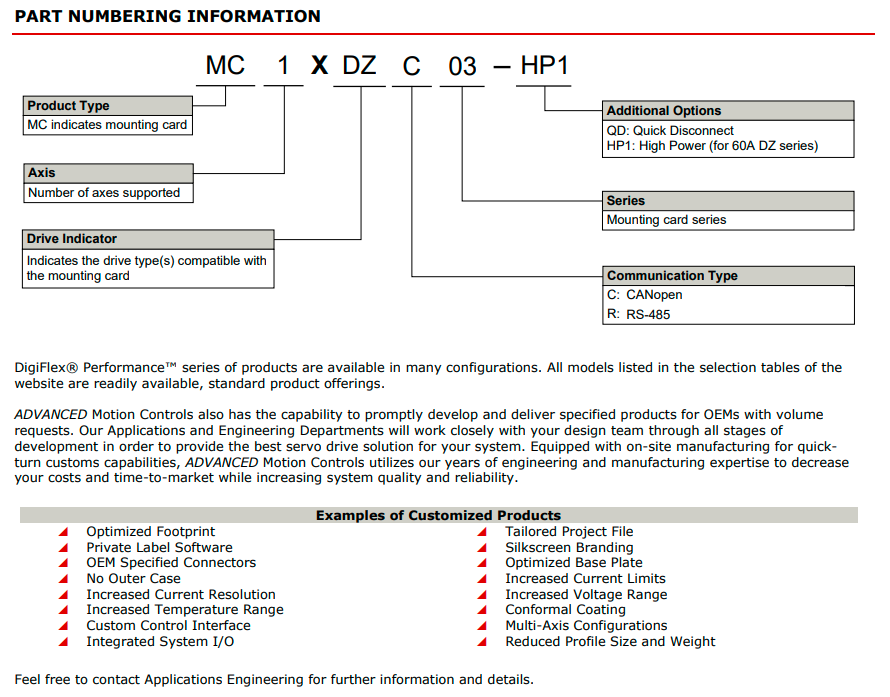

Specifications:

The MC1XDZC03-HP1 mounting card is designed to hold a high-current DZCANTE or DZXCANTE DigiFlex® Performance™ family pcb mount servo drive to simplify connection to the controller, motor, and feedback.
