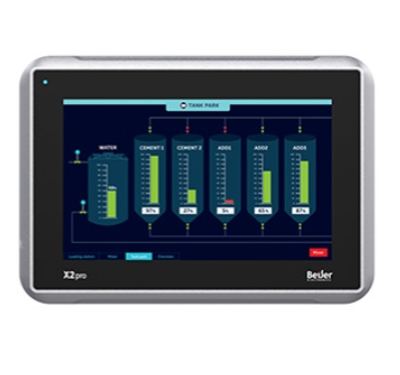

Beijer Electronics: Touch operator panel, 7" iX HMI, X2 pro 7 - B2 (630000205)
Touch operator panel, 7" iX HMI, 800x480, CPU Single Core, 1GHz, 512MB RAM, 2GB eMMC, 1xLAN, 1x9pin DSUB, USB, SD, 24VDC, -10 to +60C, IP65, CE/FCC, Marine, UL
High performance HMIs for all automation needs
X2 pro includes a wide range of high performance industrial panels from ultra-compact 4-inch to 21-inch panels designed for demanding applications. All with the high performance of powerful ARM Cortex-A9 processors, the latest screen technology and a wide range of connectivity options to cover all your automation needs.
Powerful ARM Cortex-A9 processor
Powerful single or dual core ARM Cortex-A9 processor delivers fast screen changes and program execution in demanding applications.
Robust aluminum housing
Robust aluminum housing with IP65, NEMA 4X/12 and UL Type 4X/12 front. Resistant to direct rain, snow or wash-downs, dirt, grime and dust.
Wide operating temperature
The wide -10°C to +60°C operating temperature range satisfies the demands of most industries.
UL, CE, FCC and KCC certificates
The entire X2 range offers a strong standard certification with UL, CE, FCC and KCC certificates.
Marine certifications
The X2 panels meet extended classes of marine certifications not normally carried by HMIs, making them suitable for all onboard locations.
iX software – why you’ll love our hardware
The iX software gives you smart communication tools. It combines top-class vector graphics and easy-to-use functions that provide reliable operation, and almost limitless connectivity to your other equipment. iX Developer is the programming software for iX-based X2 and C2 operator panels and BoX2 gateways. It is required to create new projects, modify existing projects, and load projects onto panels or thumb drives. iX Developer is licensed to a single Windows PC. A single license can program an unlimited number of iX devices.
