Beijer: High performance HMI panels X2 Pro 4 (630000105)
X2 pro includes a wide range of high-performance
industrial HMI panels from ultra-compact 4-inch to 21-inch panels designed for
demanding applications. All with the high performance of powerful ARM Cortex-A9
processors, the latest screen technology, and a wide range of connectivity
options to cover all your automation needs.
X2 pro also include a number of web HMI panels perfect
for enterprises and users who wants to utilize HTML5 web technologies in
industrial environments. The X2 web HMI panels enable visualization of the same
content across different target platforms such as mobile, tablet, pc, etc.
without any conversion or re-engineering.
X2 Pro 4 - 4''
HMI with iX runtime - 480 x 272 pixel (16:9)
- TFT-LCD touch screen
- 1.5 GB application memory
- Ethernet 1x100 Mbit
- -10°C to +60°C operating
temperature
- CE, FCC, KCC, UL approvals
- DNV GL, KR, LR, ABS, CCS, BV,
NK, RS marine approvals

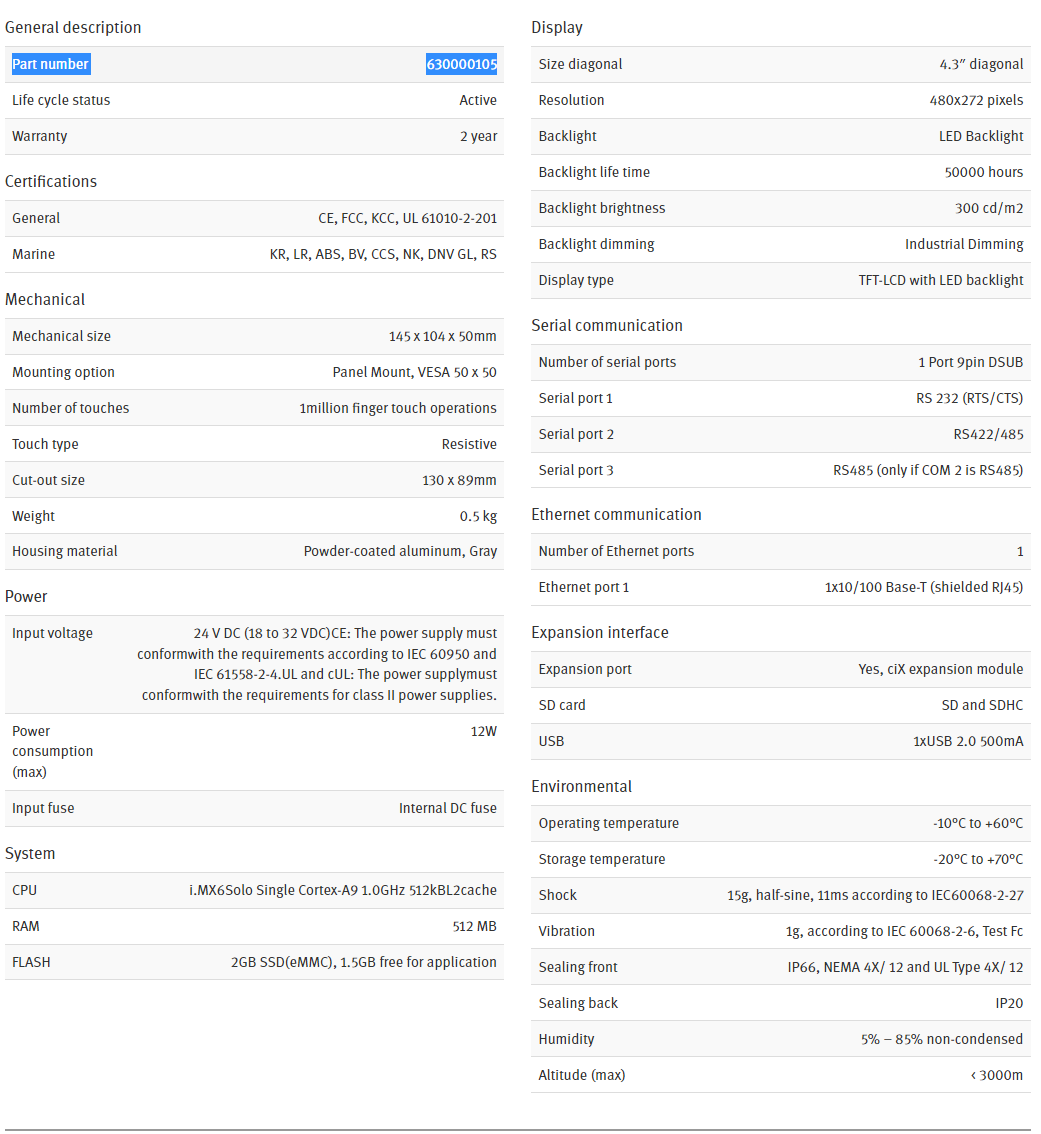

FactsGeneral description| Part number | 630000105 | | Life cycle status | Active | | Warranty | Up to 2 years |
Certifications| General | CE, FCC, KCC | | Marine | KR, LR, ABS, BV, CCS, NK, DNV GL | | Safety | UL 61010-1, UL 61010-2-201, CAN/CSA-C22.2 No. 61010-1, CAN/CSA-C22.2 No. 61010-2-201 |
Mechanical| Mechanical size | 145 x 104 x 50mm | | Panel Mount, VESA 50 x 50 | | 1million finger touch operations | | Touch type | Resistive | | Cut-out size | 130 x 89mm | | Weight | 0.5 kg | | Housing material | Powder-coated aluminum, Gray |
Power| Input voltage | 24 V DC (18 to 32 VDC)CE: The power supply must conformwith the requirements according to IEC 60950 and IEC 61558-2-4.UL and cUL: The power supplymust conformwith the requirements for class II power supplies. | | Power consumption (max) | 12W | | Input fuse | Internal DC fuse |
| Hardware platform | X2 | | CPU | i.MX6Solo Single Cortex-A9 1.0GHz 512kBL2cache | | RAM | 512 MB | | FLASH | 2GB SSD(eMMC), 1.5GB free for application |
Display| Size diagonal | 4.3″ diagonal | | Resolution | 480x272 pixels | | Backlight | LED Backlight | | Backlight life time | 50000 hours | | Backlight brightness | 300 cd/m2 | | Backlight dimming | Industrial Dimming | | Display type | TFT-LCD with LED backlight |
Serial communication| Number of serial ports | 1 Port 9pin DSUB | | Serial port 1 | RS 232 (RTS/CTS) | | Serial port 2 | RS422/485 | | Serial port 3 | RS485 (only if COM 2 is RS485) |
Ethernet communication| Number of Ethernet ports | 1 | | Ethernet port 1 | 1x10/100 Base-T (shielded RJ45) |
Expansion interface| Expansion port | Yes, ciX expansion module | | SD card | SD and SDHC | | USB | 1xUSB 2.0 500mA |
Environmental| Operating temperature | -10°C to +60°C | | Storage temperature | -20°C to +70°C | | Shock | 15g, half-sine, 11ms according to IEC60068-2-27 | | Vibration | 1g, according to IACS E10 | | Sealing front | IP66, NEMA 4X/ 12 and UL50E Type 4X/ 12 | | Sealing back | IP20 | | Humidity | 5% – 85% non-condensed | | Altitude (max) | < 3000m |
|
|
|
 |
|
 |
|
