AllMotion: Accessories Daisy Chain Cards(EZBus Station)

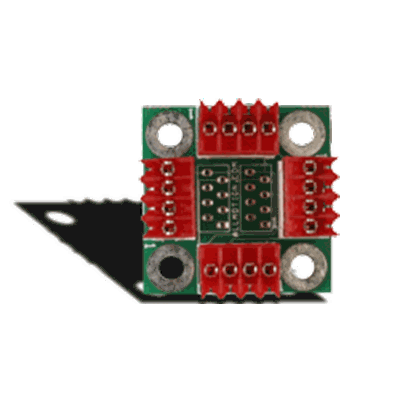

The EZ Bus Station allows easy daisy-chaining of the 4Wire (power + communication) connectors. Each EZ Bus Station will allow three Drives to be attached to one incoming 4 wire bus, or will allow 2 Drives to be attached plus one Bus cable to continue on to another Daisy-Chaining point.

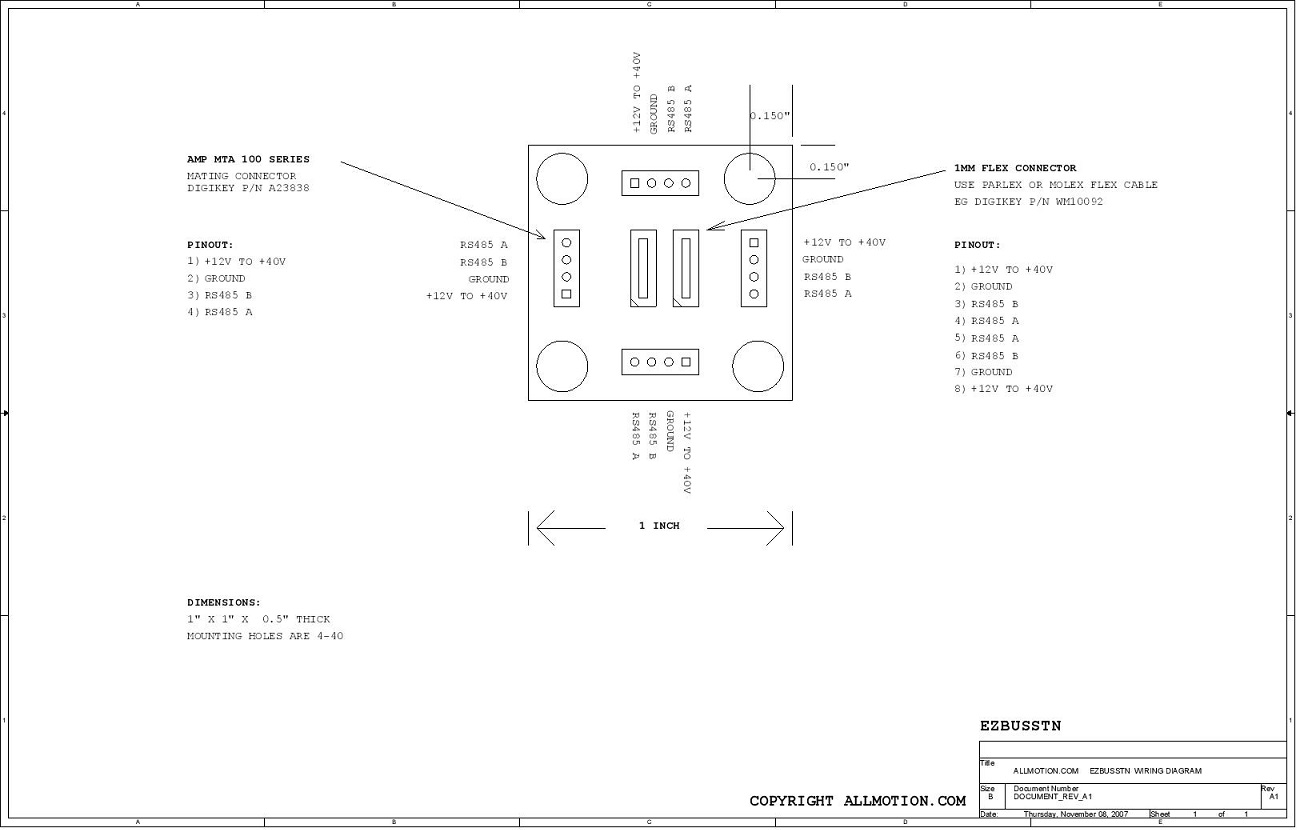

The connections are one to one for the four wires
