AMC China：Mounting Board CMC1XDZR01

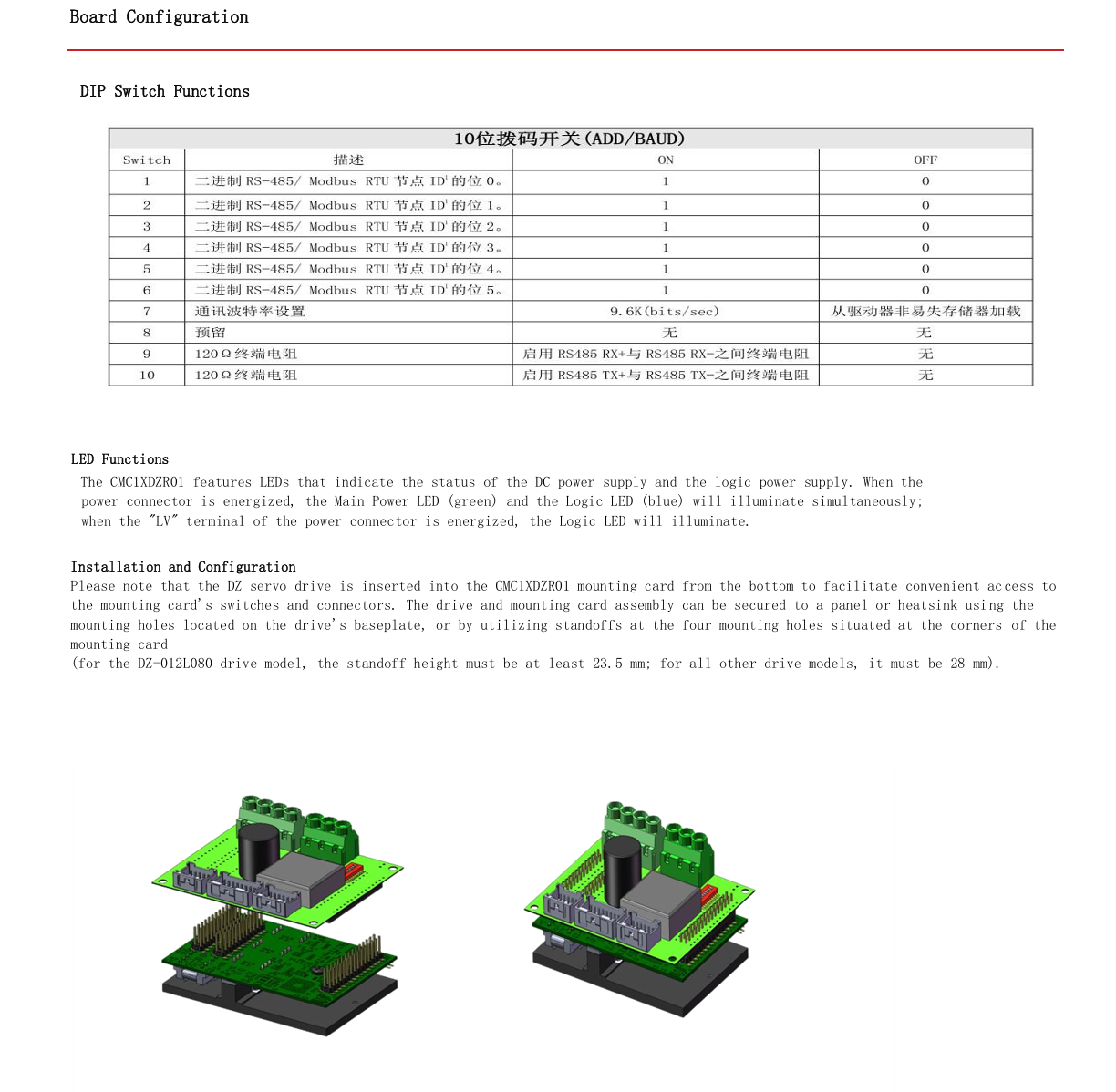

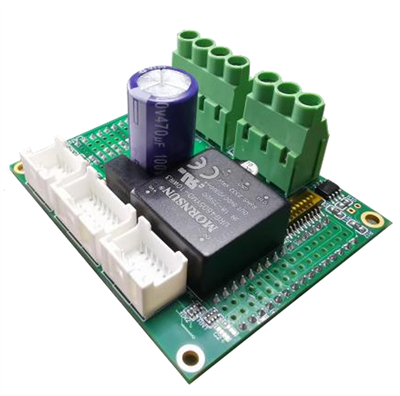

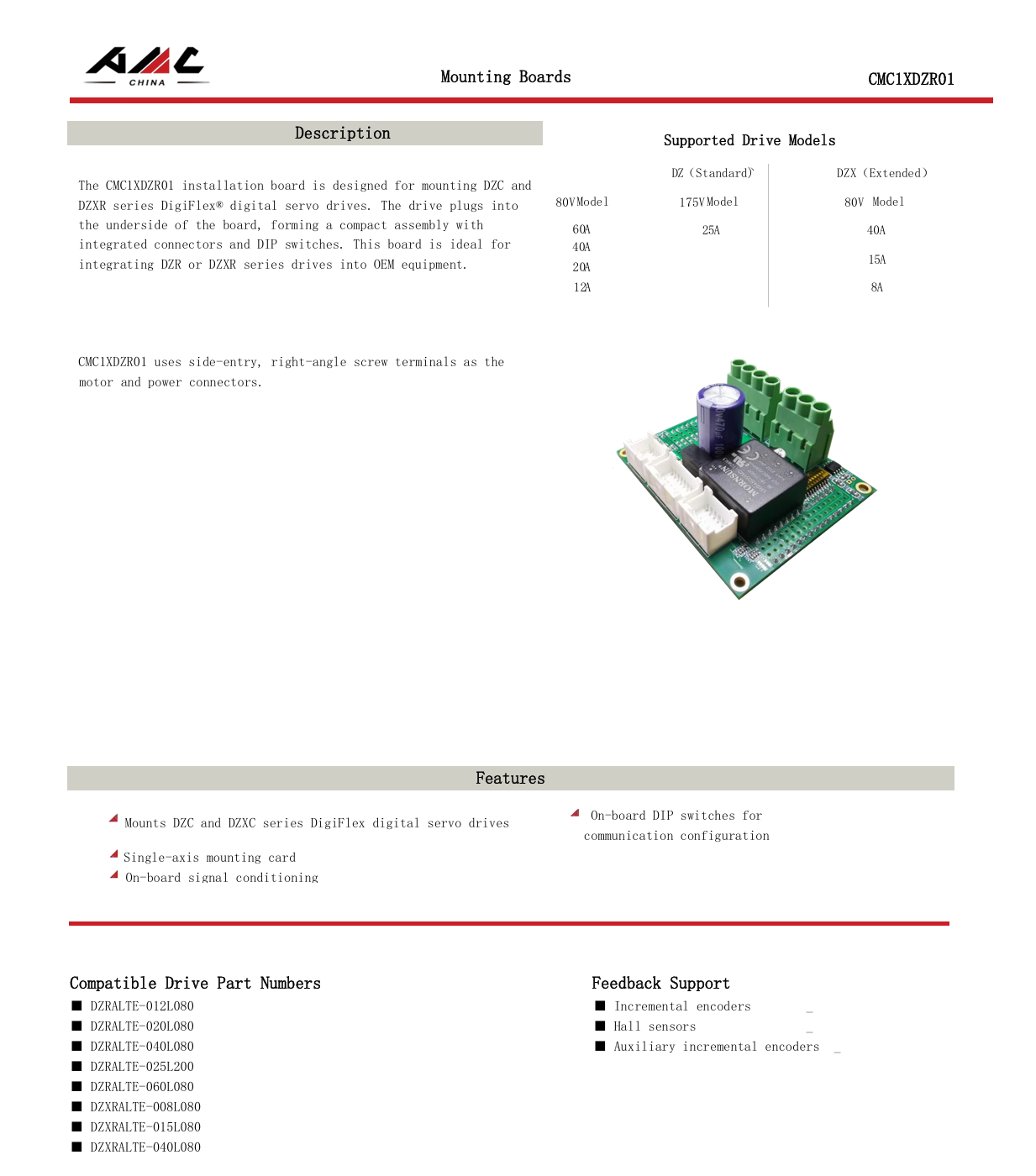

The CMC1XDZR01 installation board is designed for mounting DZC and DZXR series DigiFlex® digital servo drives. The drive plugs into the underside of the board, forming a compact assembly with integrated connectors and DIP switches. This board is ideal for integrating DZR or DZXR series drives into OEM equipment.

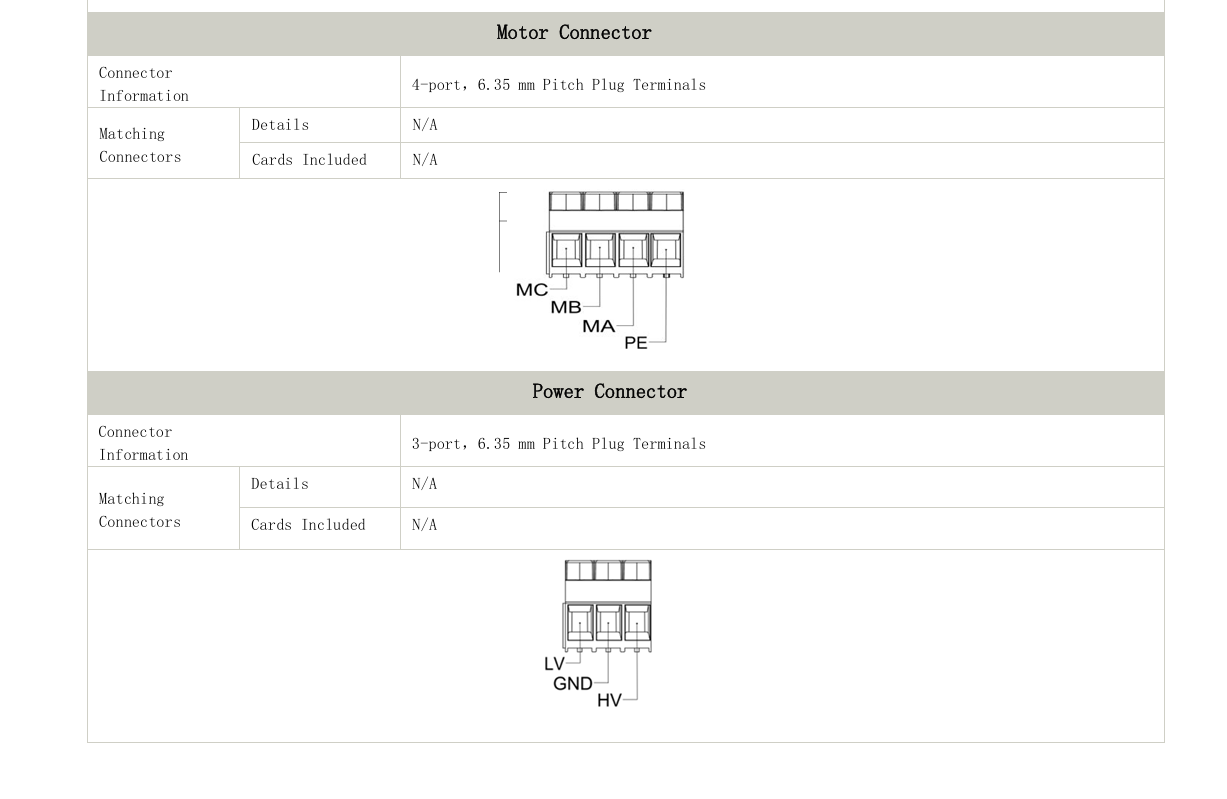

CMC1XDZR01 uses side-entry, right-angle screw terminals as the motor and power connectors.
