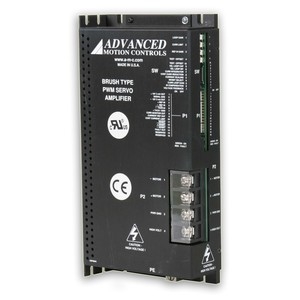

Analog PWM DC Brush Servo Drive 120A10

The 120A10 PWM servo drive is designed to drive brush type DC motors at a high switching frequency. A single red/green LED indicates operating status. The drive is fully protected against over-voltage, under voltage, over-current, over-heating and short-circuits across motor, ground and power leads. Furthermore, the drive can interface with digital controllers or be used stand-alone and requires only a single unregulated DC power supply. Loop gain, current limit, input gain and offset can be adjusted using 14- turn potentiometers. The offset adjusting potentiometer can also be used as an on-board input signal for testing purposes.

The 120A10 panel mount servo drive is targeted for centralized control and offers high bandwidth and quick response times.

Specifications:

Downloads:

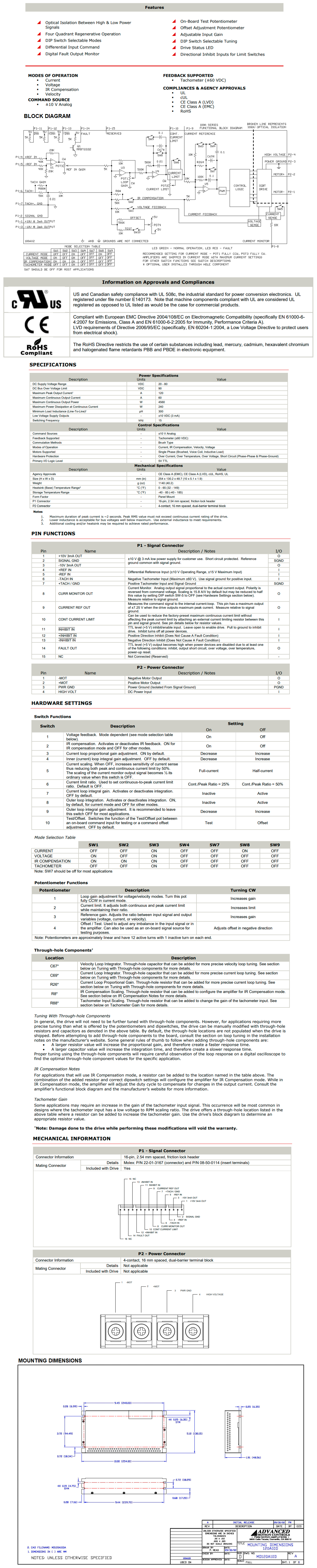

Datasheet_120A10.pdf
HWManual_AnalogDrives.pdf

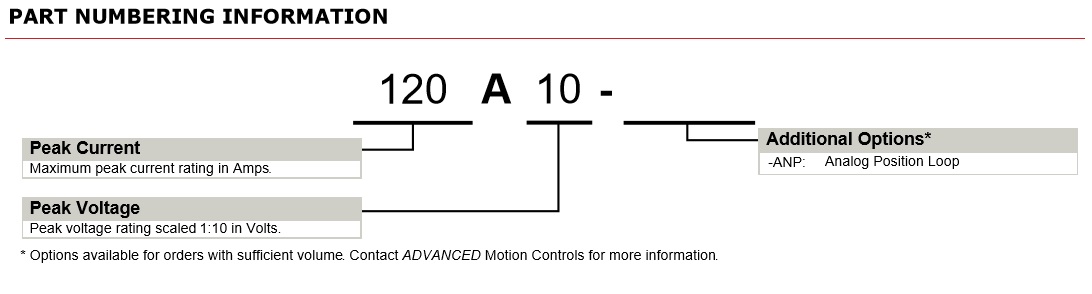

Product-Identification.pdf

Instructional Videos
