Analog PWM AxCent™ Servo Drive AZXBE40A8

The AZXBE40A8 PWM servo drive is designed to drive brushless DC motors at a high switching frequency. To increase system reliability and to reduce cabling costs, the drive is designed for direct integration into your PCB. The AZXBE40A8 is fully protected against over-voltage, under-voltage, over-current, over-heating, invalid commutation, and short-circuits. A single digital output indicates operating status. The drive interfaces with digital controllers that have analog ±10V output. The AZXBE40A8 can utilize either quadrature encoder inputs or Tachometer feedback for velocity control. This servo drive requires only a single unregulated isolated DC power supply, and is fully RoHS II (Reduction of Hazardous Substances) compliant.

The AZXBE40A8 AxCent™ extended environment pcb mount servo motor driver is targeted for centralized control in harsh temperatures or rugged environments, and offers high bandwidth and quick response times.

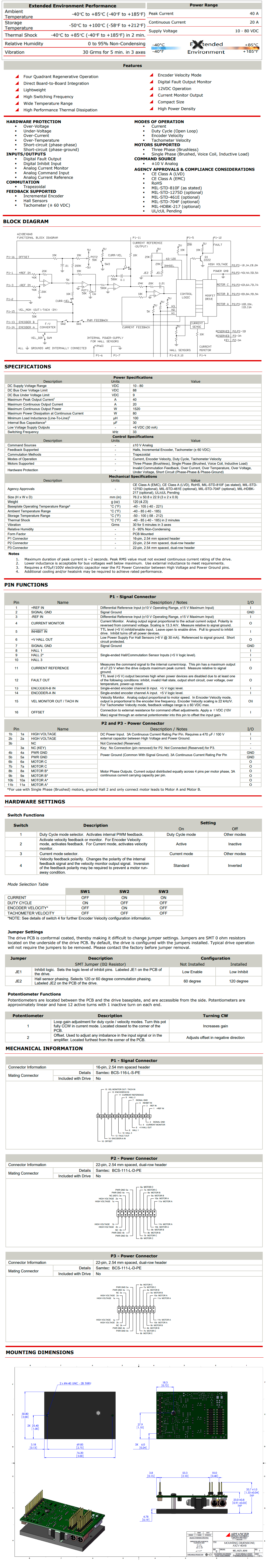

Specifications:

Downloads:
Datasheet_AZXBE40A8.pdf
Installation of Extended Environment AxCent™ PCB mount servo
Product-Identification.pdf
Instructional Videos:
Manual commutation
Axcent Current Loop tuning
Tips for Proper Wiring and Reducing EMI (Noise)
